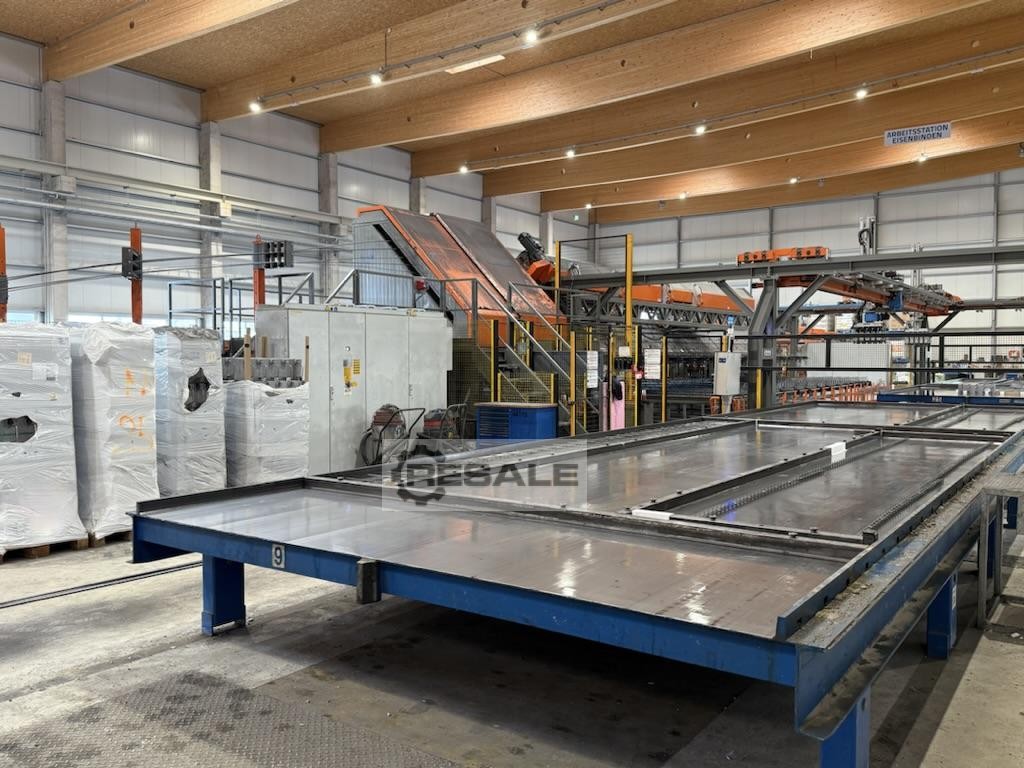

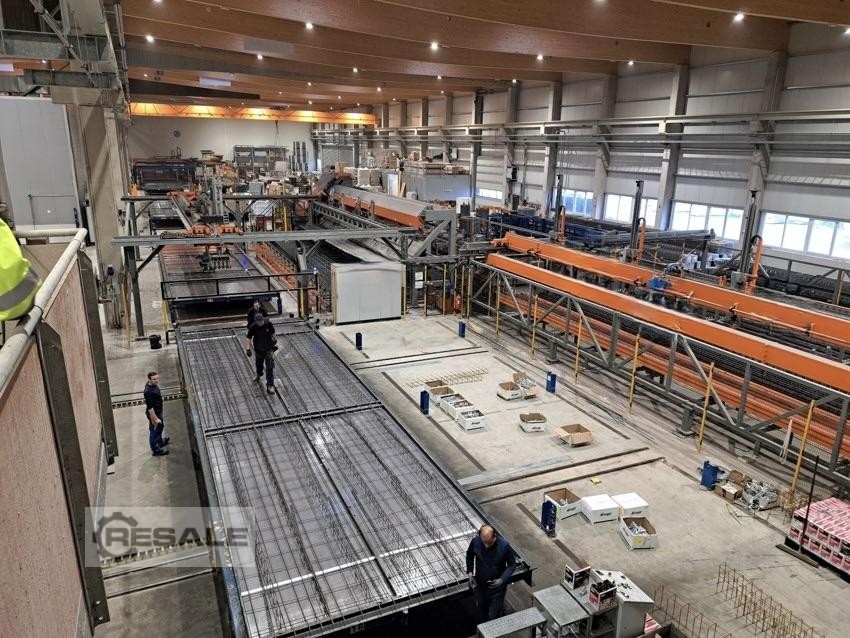

SCHNELL-AWM 2022 steel automation for pallet circulation system
consisting of straightening machine, transfer robot and lattice girder
assembly.
Year of manufacture: 2022
This modern production plant will be available at the end of 2025, as
the customer is installing a new mesh welding plant at this
location.
Suitable for reinforcing steel preparation for a wide range of precast
concrete products. Most efficient for use in precast floor slabs and
double wall production.
Technical data:

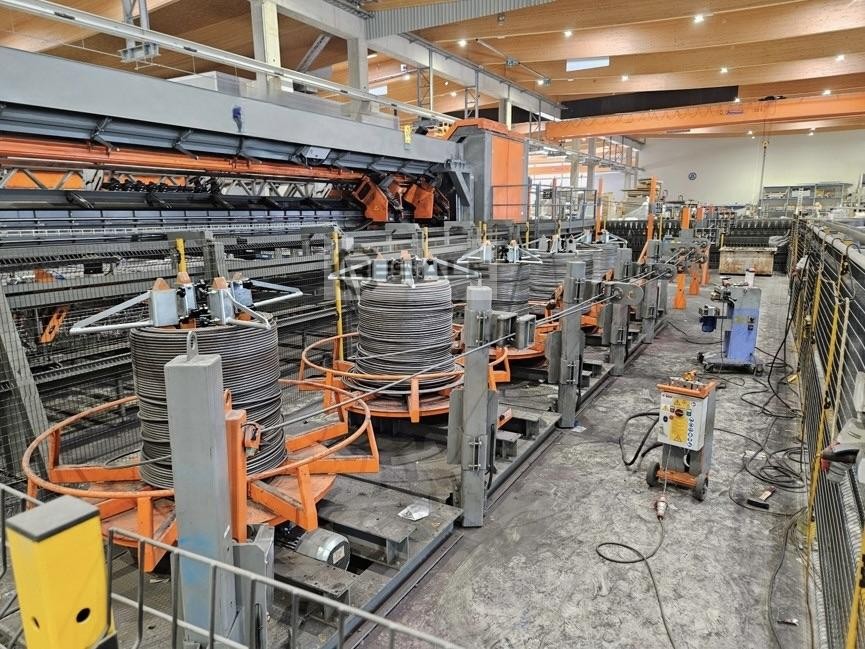

SCHNELL straightening, cutting and bending machine
Type LISTA BEND 16/5-12
- Wire diameter from 8 to 16 mm, coil weight up to 5 t
- Wire feed up to 140 m/min
Maximum bar length: 12,500 mm
Bending distance: 900 - 10,000 mm
Two servo-controlled bending head units with automatic mandrel
change
Five rotors Straightening system, for every diameter a motor
Fully automatic wire diameter change in the machine
Transfer magazine for automatic removal

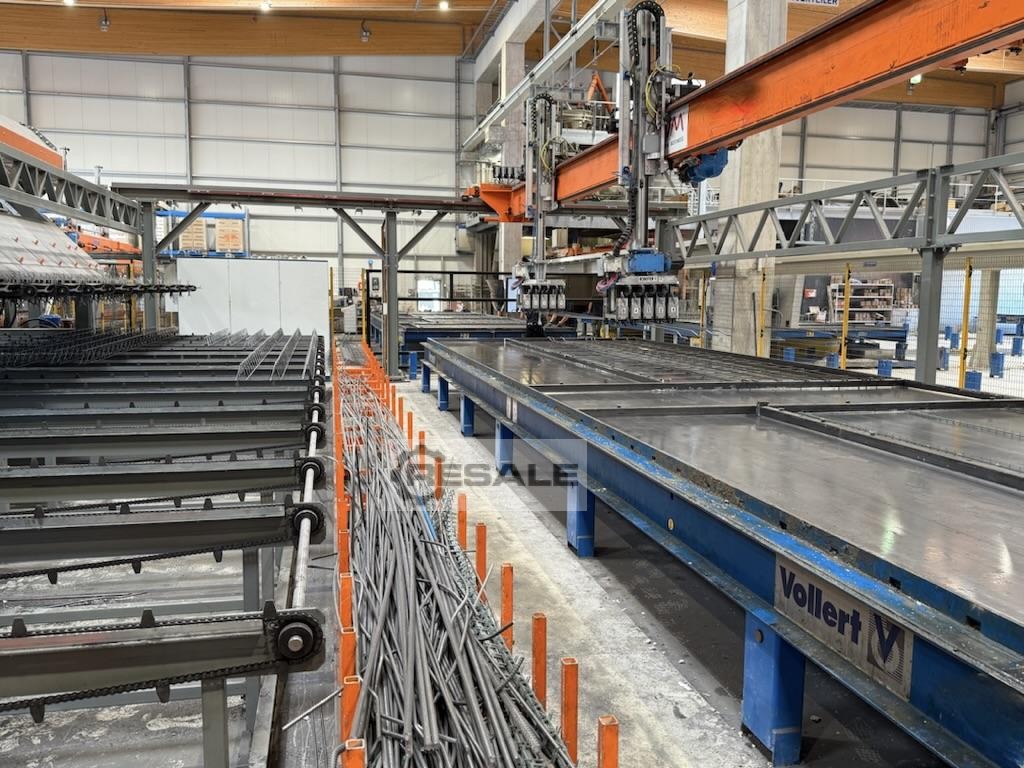

Fully automatic laying system AUTOLAYER for positioning
Lattice girders and wire rods on the pallet
Two insertion robots, each with 4 double gripping units
Positioning with additional stroke and 90° rotatable head
System area 13,000 x 8,000 mm

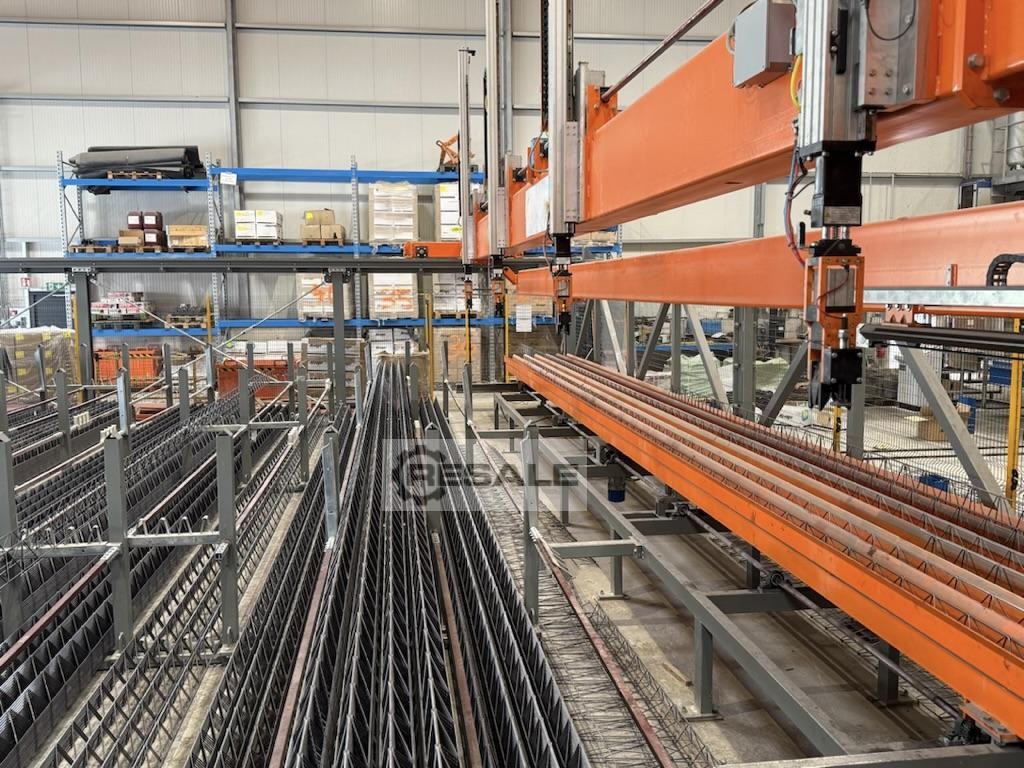

Lattice Girder fitting AWM Bwc 450
Processable Lattice girder length: 14,000 mm
Maximum lattice girder length for installation in precast concrete
elements: 12,500 mm
Lattice girder height from 70 to 450 mm
Welding power 15 kvA, electronically controlled via wire diameter
Hydraulically driven cutting system
Fully automatic storage, feeding, welding, cutting and unloading
Windows-based operating system with proprietary AWM software
Control with modern PLC
Remote maintenance access via TeamViewer
Self-diagnostic function
