Manufacturer: SEBA
Model: Lite Track 70-40 New Evolution
Year of Manufacture: 2022
Operating hours : 45 h
Technical Specifications
- Operating weight: 12,000 kg
- Transport length: 5,300 mm
- Working length: 8,630 mm
- Width: 2,420 mm
- Height: 2,750 mm
- Engine: Yanmar diesel, 53.7 kW / 850-2,000 rpm
- Travel speed: 0.7 - 1.3 km/h
- Maximum gradient: 30%
- Conveyor belt speed: 1.85 m/sec
- Hopper capacity: 2.5 cubic metres
- Output capacity: 10 - 45 cubic metres per hour
- Jaw opening: 700 x 400 mm
- Hydraulic jaw gap adjustment: 15 - 100 mm
Standard Equipment and Features
- Vibrating feeder with pre-screening grizzly

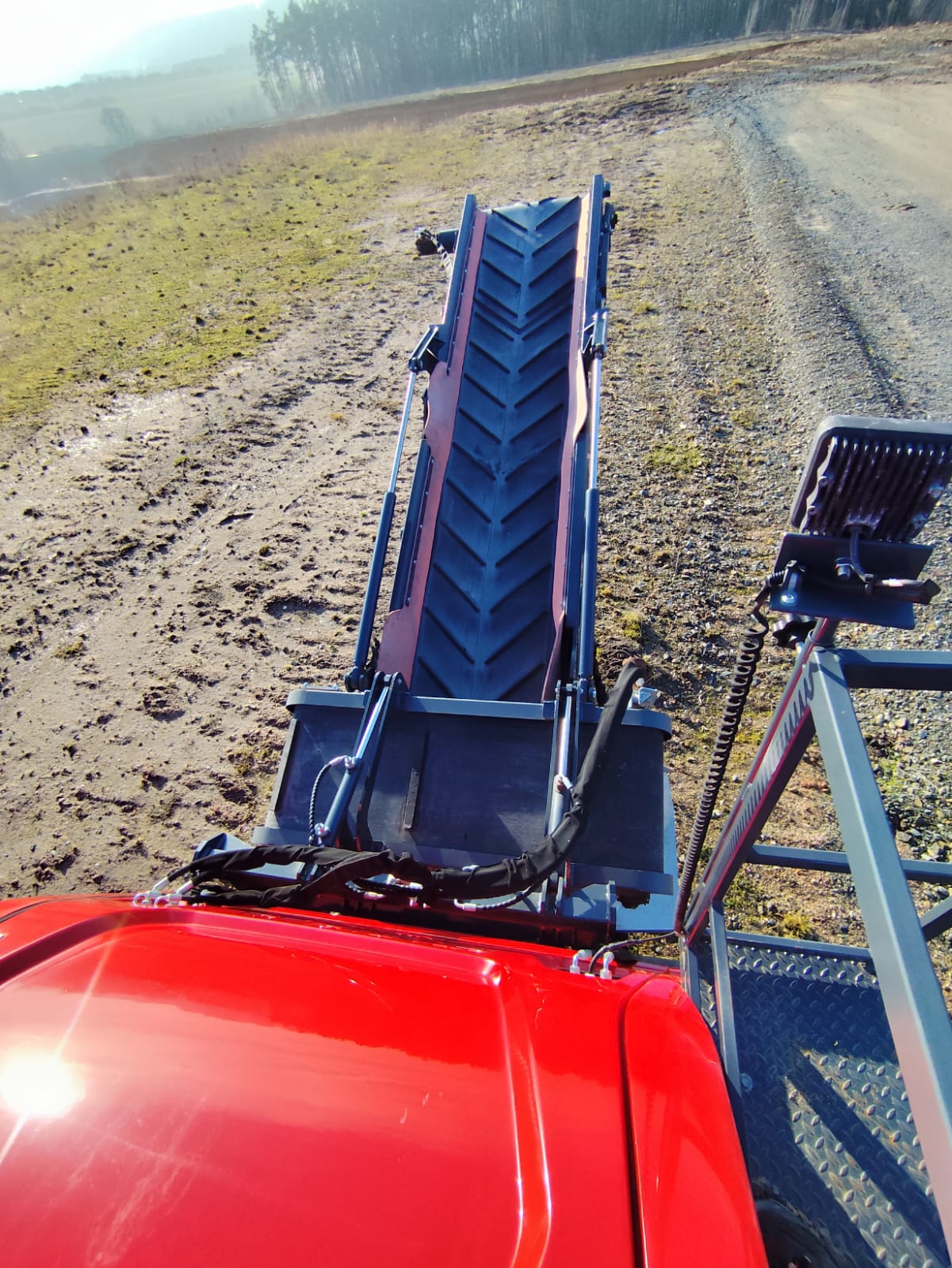

- Reversible discharge conveyor for pre-screened material
- Remote control for all machine movements, including 2 battery
packs
- Level sensor at crusher inlet
- Magnetic separation belt
- Anti-dust system
- Lighting for night operation
- Video camera monitoring at crusher inlet
- Central lubrication system
