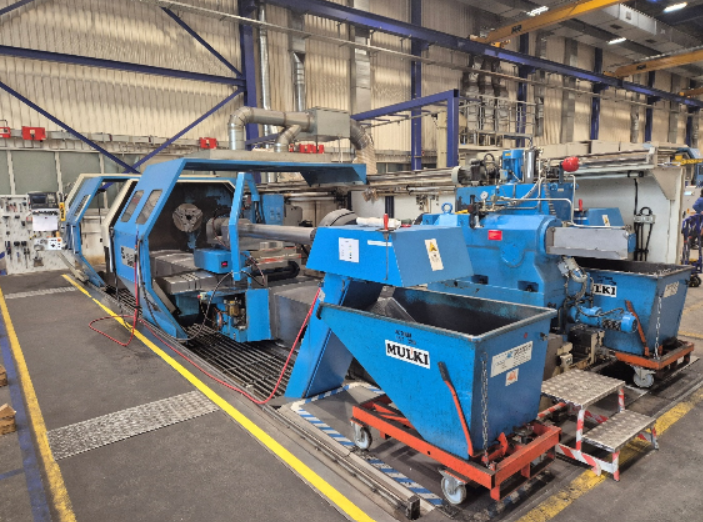

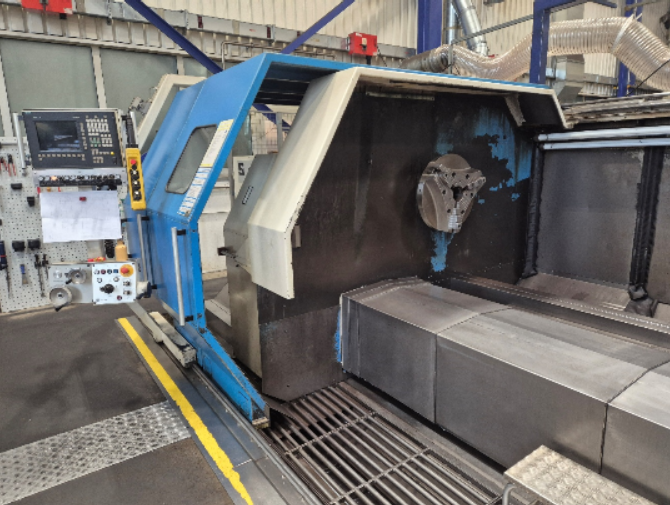

Manufacturer: Seiger
Model: SLZ 1500-6000
Year of Manufacture: 2002
Machine Type : Lathe
CNC Control: Siemens 840D
Control Type: Contouring control, 2-axis
Condition: Used
Centre Distance: 6000 mm
Swing Diameter Over Bed: 1500 mm
Swing Diameter Over Cross Slide: 1100 mm
Cross Slide Travel (X-Axis): 760 mm
Bed Width: 1350 mm
Turning Tool Cross Section: 40 x 40 mm
Spindle
- Spindle Head: DIN 55027, Size 15
- Spindle Bore: 128 mm
- Chuck: Forkardt F400 (D159578)
- Speed Range: 3.55 to 710 rpm
- Max. Torque at Spindle: 12,000 Nm
Drive and Feed
- Main Drive Power: 52 kW (54 kW at 100% ED / 70 kW at 60% ED)
- Supply Voltage: 400 V
- X-Axis Feed Force (100% ED): 25,000 N
- Z-Axis Feed Force (100% ED): 35,000 N
- X-Axis Rapid Traverse: 4 m/min
- Z-Axis Rapid Traverse: 4 m/min
- Feed Range: 0.001 to 4 m/min
- X-Axis Torque: 27 Nm
- Z-Axis Torque: 50 Nm
Turret and Tooling
- Number of Tool Positions: 12
Tailstock
- Quill Diameter: 220 mm
- Quill Stroke: 315 mm
- Internal Taper: Morse Taper 6 (MK 6)
Workpiece Capacity
- Max. Workpiece Weight Between Centres (without steady): 9,000 kg
- Max. Workpiece Weight Between Centres (with one steady): 10,500
kg
- Max. Workpiece Weight Face Chuck Mounted: 2,500 kg
Machine Weight and Dimensions
- Total Machine Weight: approx. 31,000 kg
- Machine Dimensions (L x W x H): 12,500 x 4,200 x 2,800 mm
Included Accessories

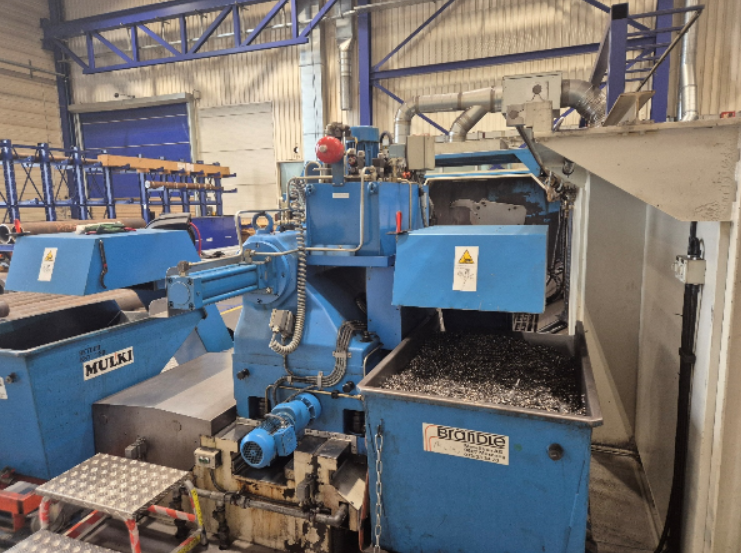

- Chip conveyor

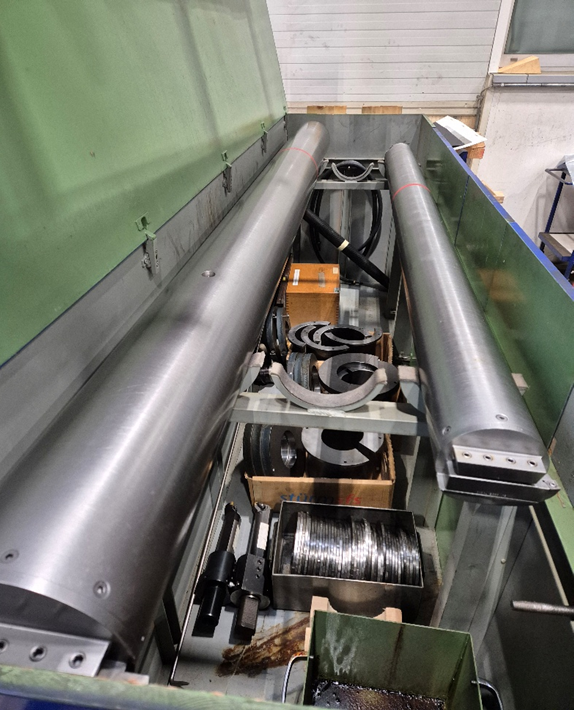

- Boring bar set: 3 bars (diameter 120 mm, 150 mm, and 180 mm) with
matching half-shell collet sleeves

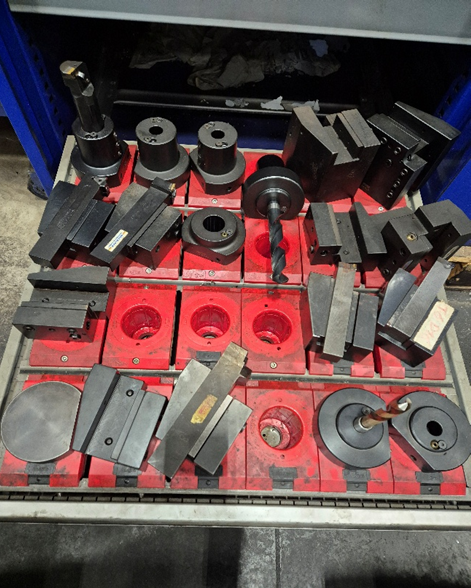

- Various tool holders
- Hard and soft chuck jaws, various sizes

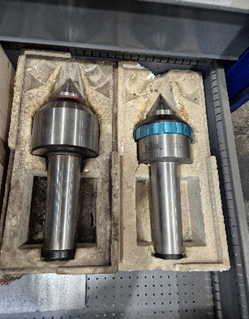

- Turning centres
- Machine and control manuals
- Telescopic cover between spindle and X/Z slide (requires
revision)
