SEIGER SLZ 420E

Manufacturer: Seiger

Model: SLZ 420E

Year of Manufacture: 2015

Operating hours: approx. 30,882 hours (as shown on hour counter)

Note: Machine is sold without chuck

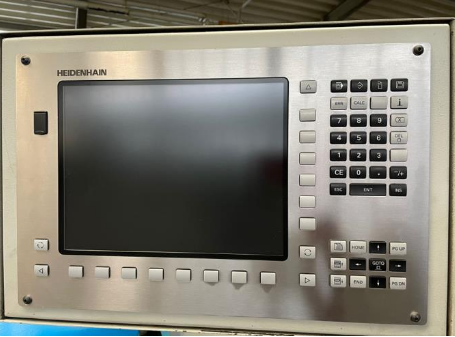

Control system: Heidenhain

Working Range

- Distance between centers: 1,000 mm
- Swing over bed: 430 mm
- Swing over cross slide: 220 mm
- Cross slide travel: 230 mm
- Bed width: 350 mm

Turning Tool

- Tool shank cross-section (height x width): 20 x 20 mm

Spindle

- Spindle nose: DIN 55027 size 6
-

- Spindle diameter at front bearing: 110 mm
-

- Spindle bore: 80 mm

Main Drive (AC)

- Drive power 100% / 60% ED: 9 / 11 kW
-

- Max. torque at spindle: approx. 200 Nm
-

- Max. torque with 2-speed planetary gearbox: approx. 750 Nm
-

- Spindle speed range: 1 - 3,600 rpm

Feed Drive (AC)

- X-axis feed force 100% ED: 4,000 N
-

- Z-axis feed force 100% ED: 5,000 N
-

- X-axis rapid traverse: 10 m/min
-

- Z-axis rapid traverse: 7 m/min

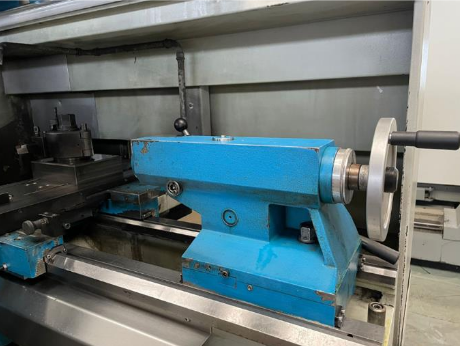

Tailstock

- Quill diameter: 70 mm
-

- Quill travel: 150 mm
-

- Quill taper (internal): Morse taper 5
-

- Fixed steady rest capacity: 12 - 150 mm
-

- Follow steady rest capacity: 12 - 125 mm

Pulse Lubrication System

- Flow rate: 0.1 l/min
-

- Pump pressure: 30 bar
-

- Tank capacity: 2 dm3

Pneumatic System

- System pressure: 6 bar
-

- Measuring system pressure: 1 bar
