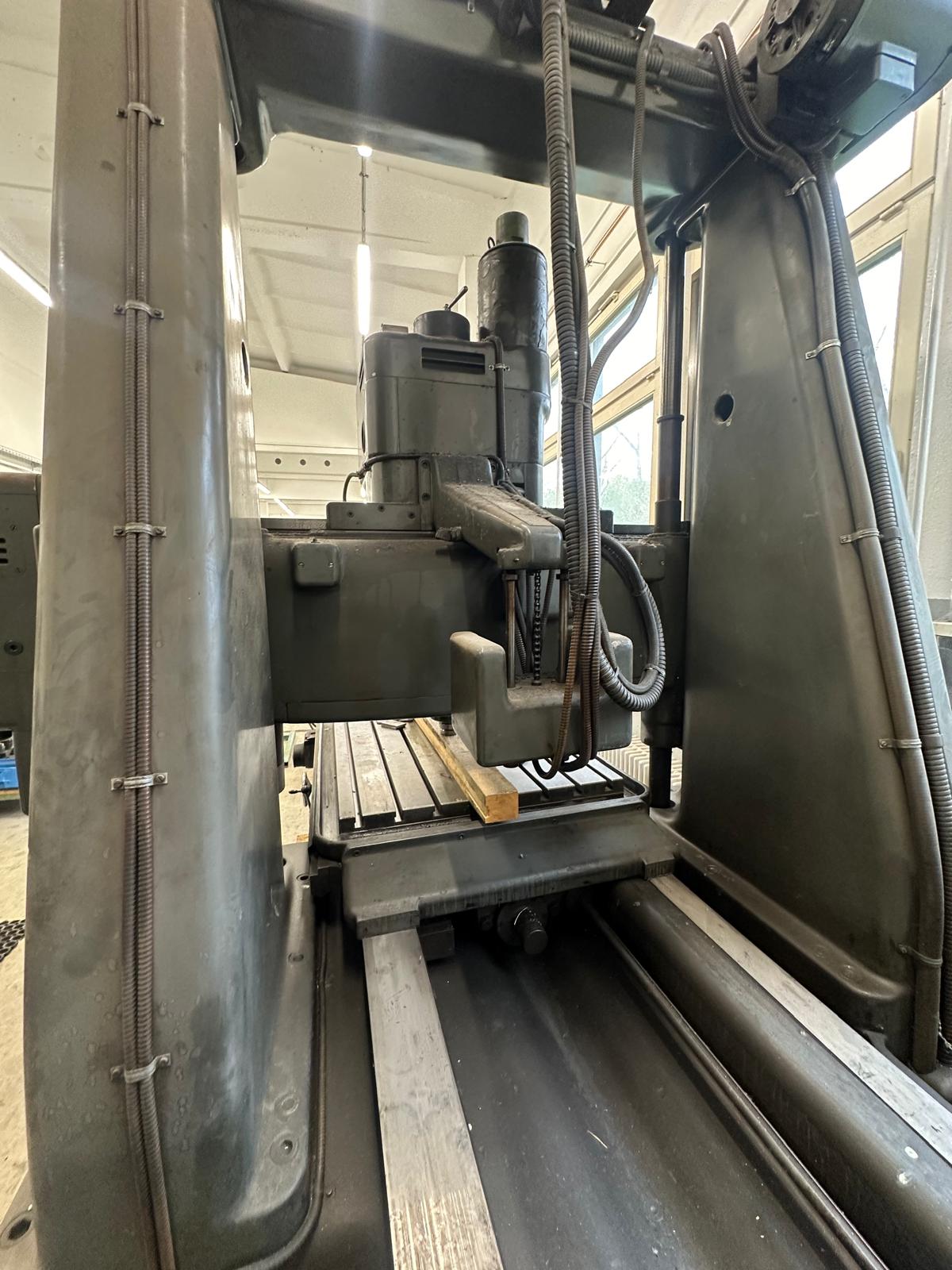

SGIP Hydroptic

hydraulic drilling and milling machine

Rotary table included

Manufacture Details:

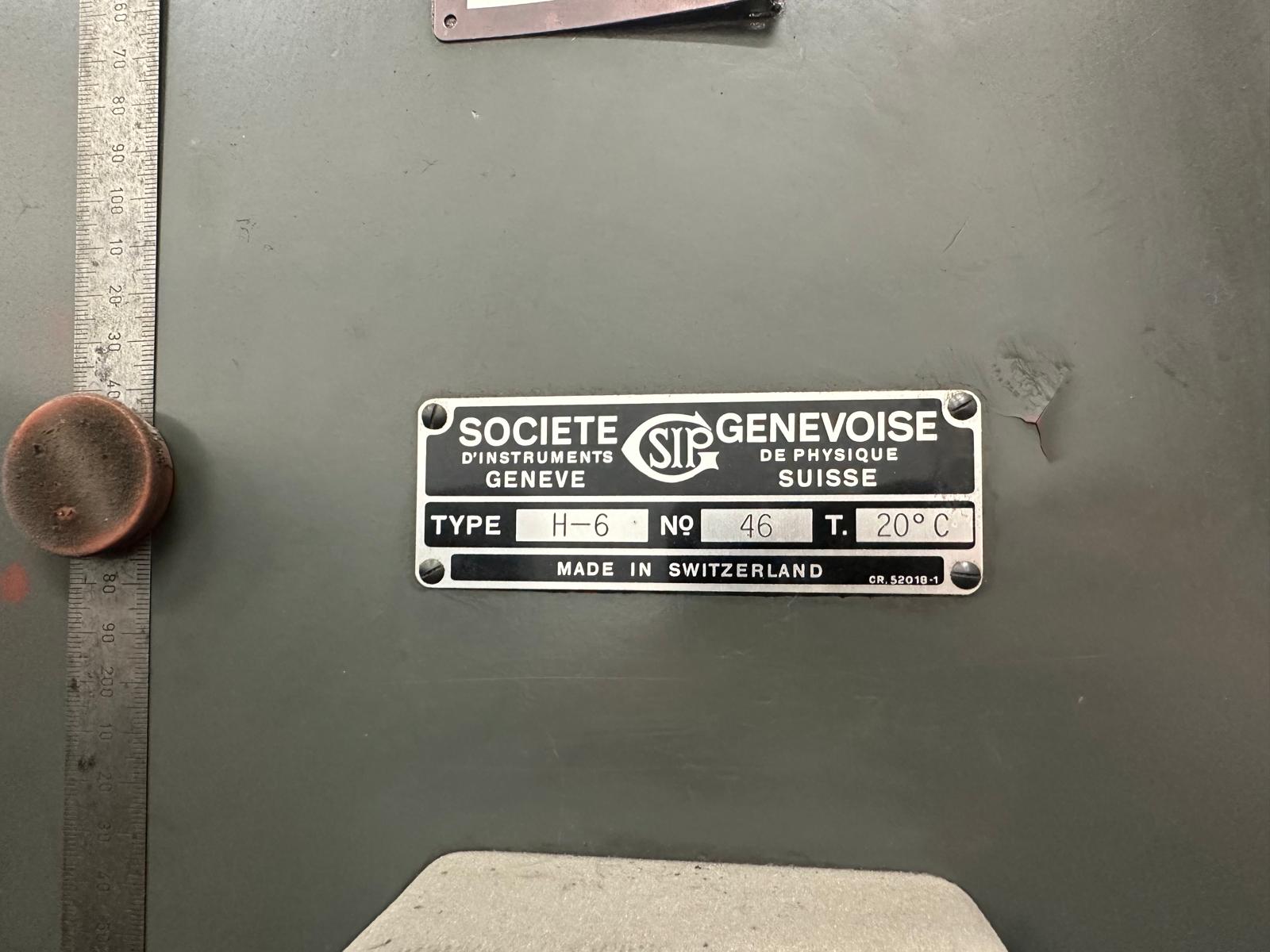

- Manufacturer: Société Genevoise d´Instruments de Physique (SGIP)
- Model: Hydroptic (with reference to a sub-component "Rotoptic-6")

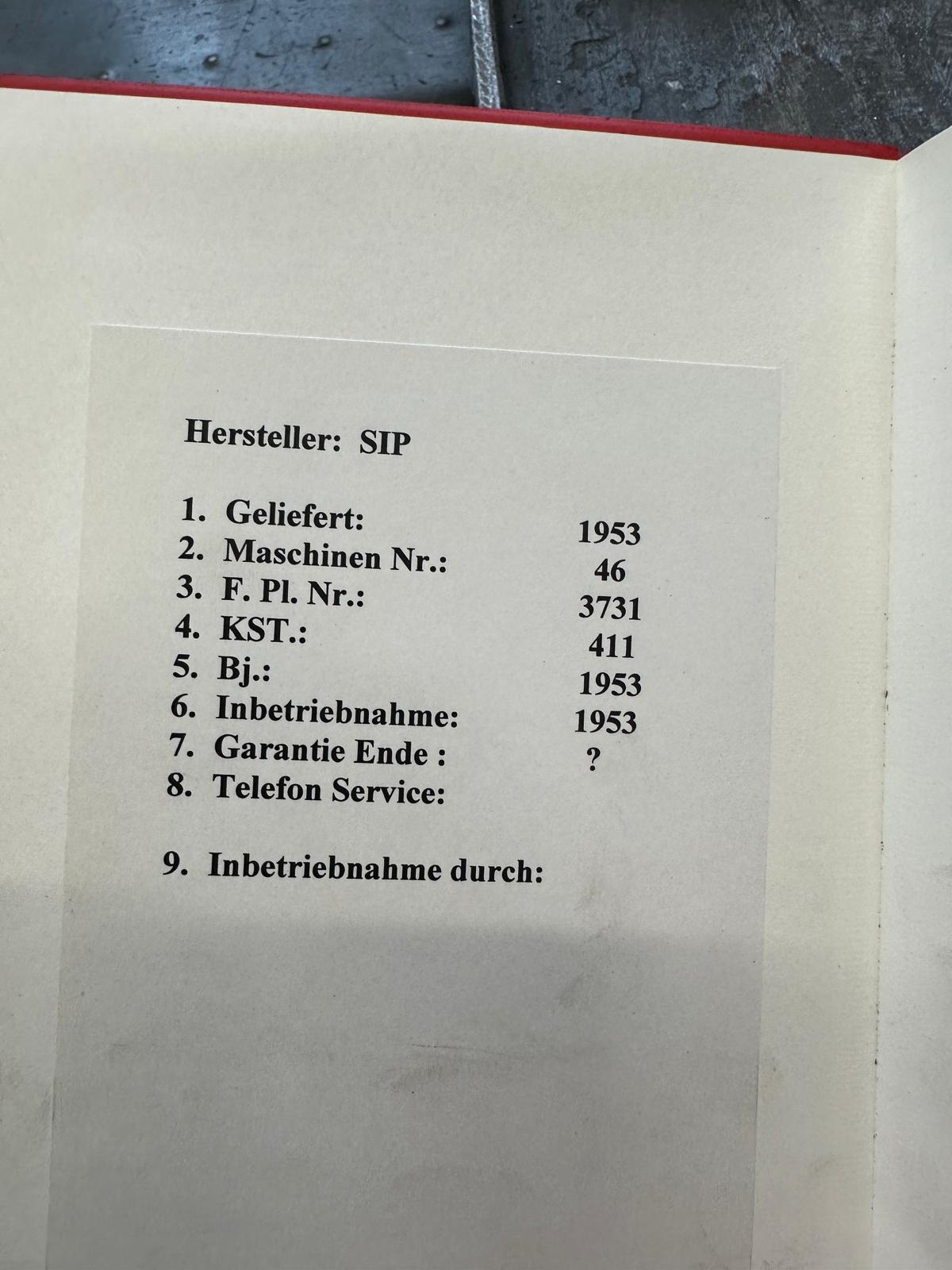

- Serial Number: Specific series number mentioned for traceability and maintenance

Table Specifications:

- Length: 1100 mm
- Width: 842 mm
- Max T-Nut Length: Noted as 800 mm with spacing details on the machine table
- Max Load Capacity: 800 kg

Machine and Operation Specs:

- Spindle Type: Morse No. 4 taper with both internal and external fitments per DIN 2202 standards
- Spindle Speeds: Ranges from 40 rpm to 2000 rpm across 18 settings
- Table Motion: Hand-adjustable hydraulic shift and rapid traverse capability up to 1100 mm
- Vertical Clearance: Max clearance of 2385 mm
- Feed Rates: Adjustable between 25 to 300 mm/min
- Total Weight: Approximate gross weight with packaging around 8.7 tons

Electrical Specifications:

- Voltage: 380 V
- Power Rating: 6 kW, configured for 50 Hz three-phase power
