MAIN FEATURES of the Machine:
ENGINE
- FIAT N67
- Power: 151 kW (202 HP)
- EU Stage V
DRIVE
- Independent hydrostatic dual-circuit electric drive
- Travel speed: 0-10 km/h (forward/reverse)
TANK CAPACITY
- Fuel tank: 389 l
- Cooling system: 29 l
- Engine oil: 14 l
- Hydraulic oil tank: 115 l
DIMENSIONS
- Operating weight: 18,830 kg
- Machine height: 3,180 mm
- Total machine length: 5,800 mm
Highlights of the SD16L:
- Drive System: Shantui’s proprietary drive system is optimally
tuned to the engine curve, providing excellent traction and efficient
power transmission.

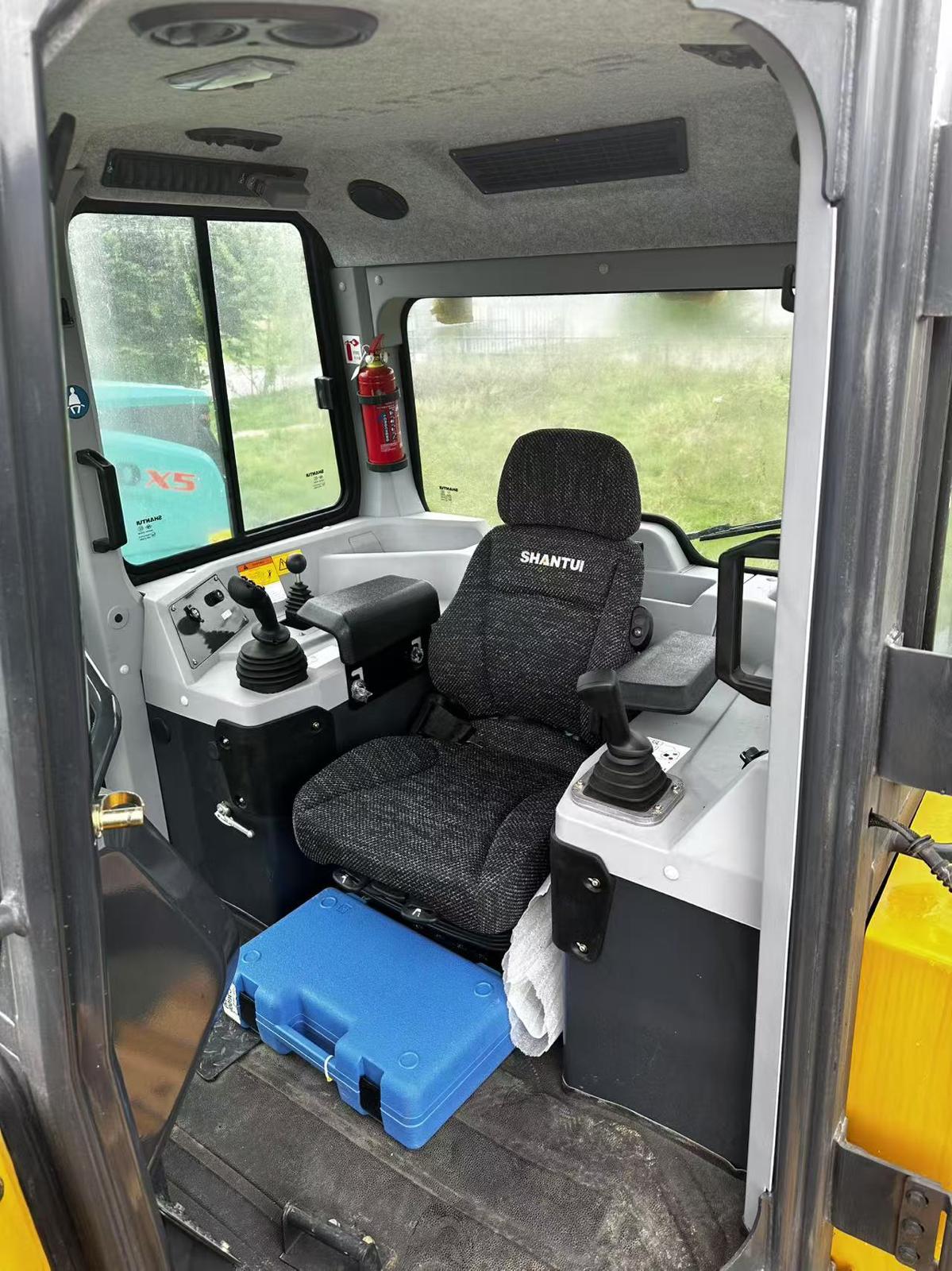

- Maintenance and Operator Comfort: Side covers can be opened for easy
maintenance. The ergonomically designed, spacious cab offers excellent
visibility.
- Adaptability: With its wide track contact surface, the bulldozer is
particularly suitable for challenging terrain such as wetlands and
marshes.
