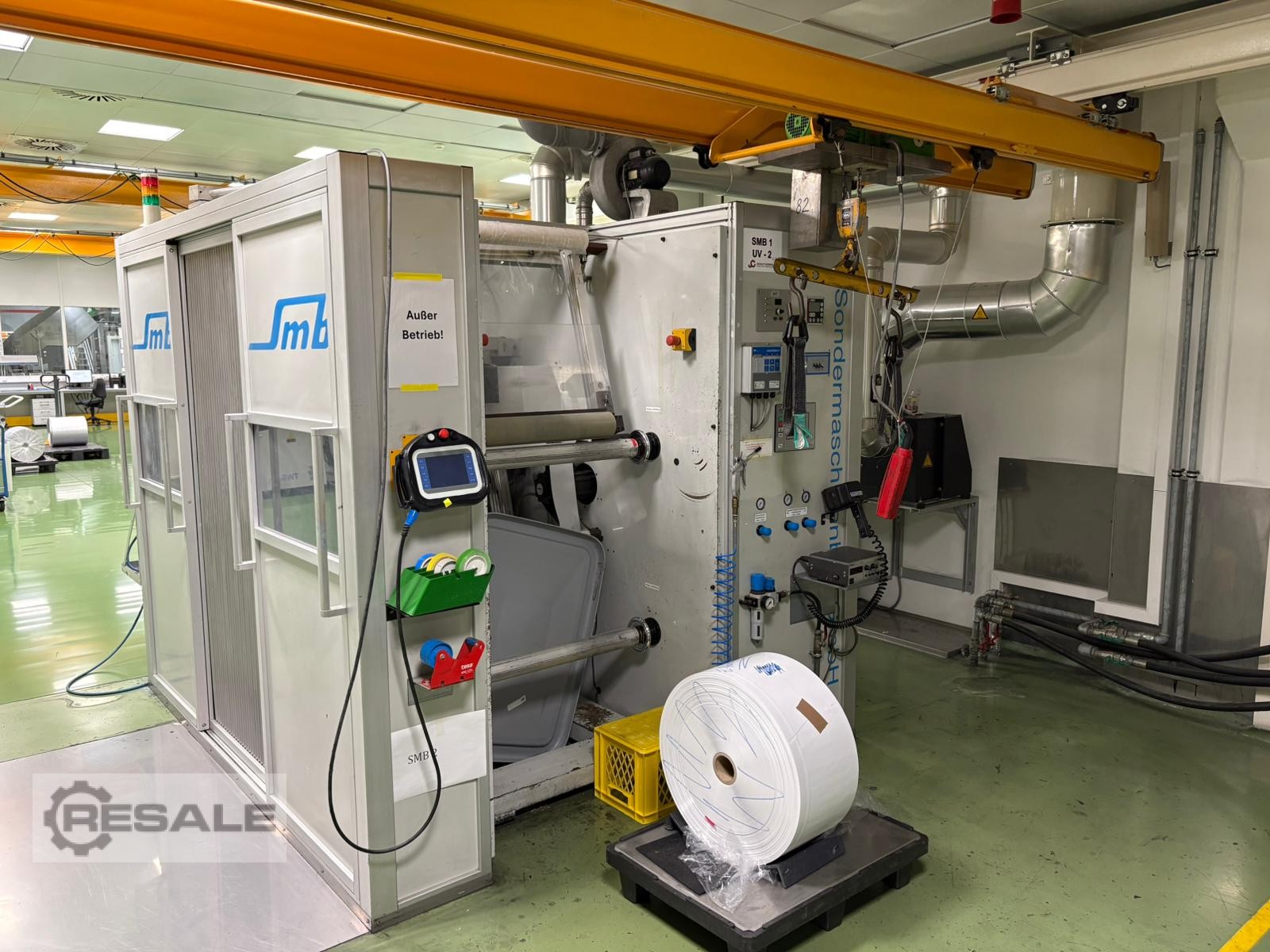

SMB FD10 UV/A215

Druckmaschinen / Druckmaschinen: Flexo- und Tiefdruck

Hersteller: SMB

Modell: FD10 UV/A215

Eintrags-Nr.: 169409369

Anzahl: 1

Datum: 28.04.2026

Baujahr: 2008 Gebrauchtmaschine

Standort: Land-de Deutschland 40789 Monheim am Rhein

Preis:


Maschine auf Lager: Nein

SMB FD10 UV/A215

Year of manufacture 2008

1-color UV printing
Material width: max. 530 mm
Print width: max. 500 mm
Material thickness: PET, OPP, aluminum, and composite materials 12–130 µm
Mechanical speed: 0 to 120 m/min

Production speed depends on the material
Format length: 300 to 800 mm

Repeat adjustment: Electronic register adjustment
Inking system: Ink unit 1  Nitrogen-enhanced UV inks
Squeegee system: Closed chambered squeegee with pneumatic pump
Tip speed: max. 10 m/min

Roll diameter: 800 mm

Web tension: 20 – 350 N

UV drying: GEW

1 UV nitrogen unit (can dry without nitrogen)

Corona treatment unit: 1 SIT Sicon 3002 2 kVA corona treatment unit

Side edge control: 1 S-shaped web edge control unit with ultrasonic edge sensor (BST)
