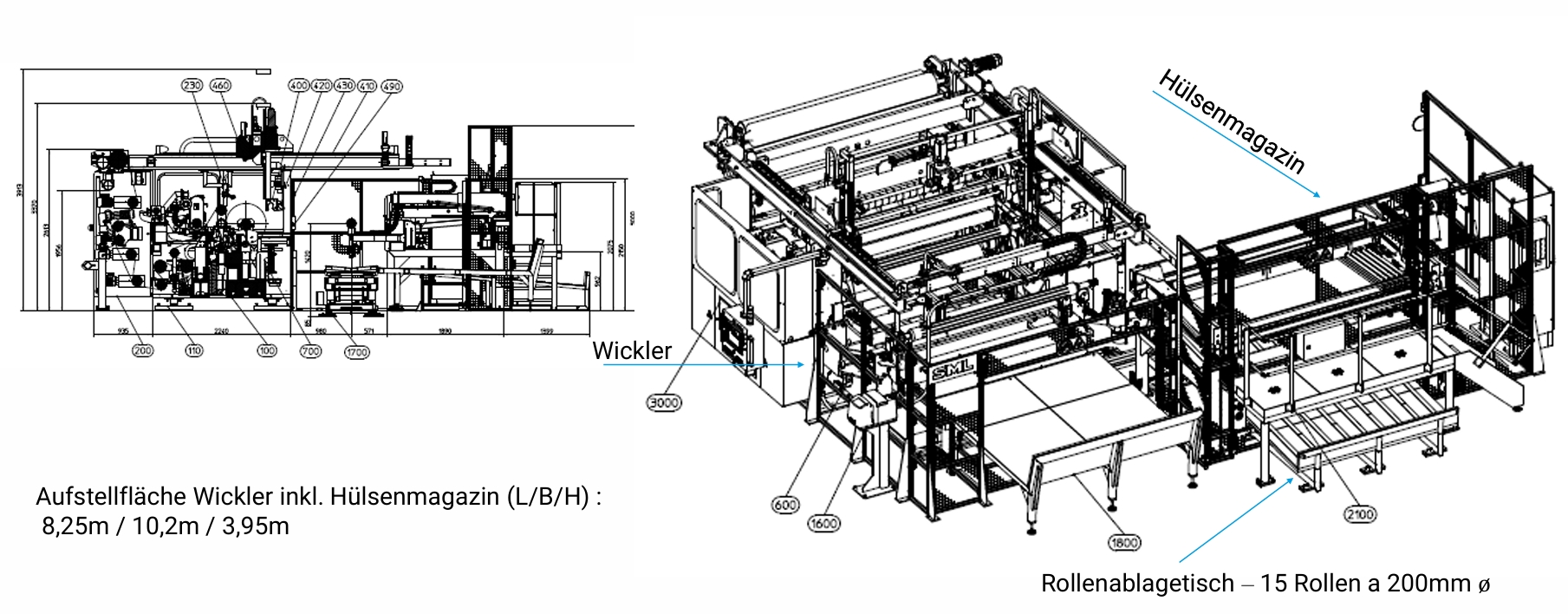

Folienwickler SML W2000

Technical Specifications:

Model: W2000/NFB/2400/3", 6"/300

Total Power: 52 kW

Voltage: 3x400V / 230V

Current: 85 A

Frequency: 50 Hz

Fuse: 100 A

Specifications

- Rewinder Width:
- Maximum Film Width: 2350 mm
- Roller Width (Input): 2600 mm
- Winding Cores:
- Core Sizes: 6” / 3”
- Performance:
- Maximum Mechanical Speed: 250 m/min
- Roll Specifications:
- Maximum Roll Diameter: 980 mm
- Film Thickness: 15 – 200 µm
- Edge Trimming:
- Type: In-Line
- Knife Type:
- Type: Razor blade
- Additional Features:
- Anti-stick Rollers: Linear guide and scale for the knife
- Spreading Rollers: Partially driven
- Winding Modes:
- Modes: Gap / Contact
- Tension Control:
- Control Points: Multiple points driven/regulated before and within the rewinder
- Dancer Roller:
- Type: Pendulum-mounted, made of CFK (carbon fiber)
- Satellite Roller:
- Adjustability: Adjustable in the entry angle
- Roll Change:
- Method: Fully automatic on discharge table for diameters up to 980 mm
- Finished Rolls Handling:
- Method: Via 3-axis robot

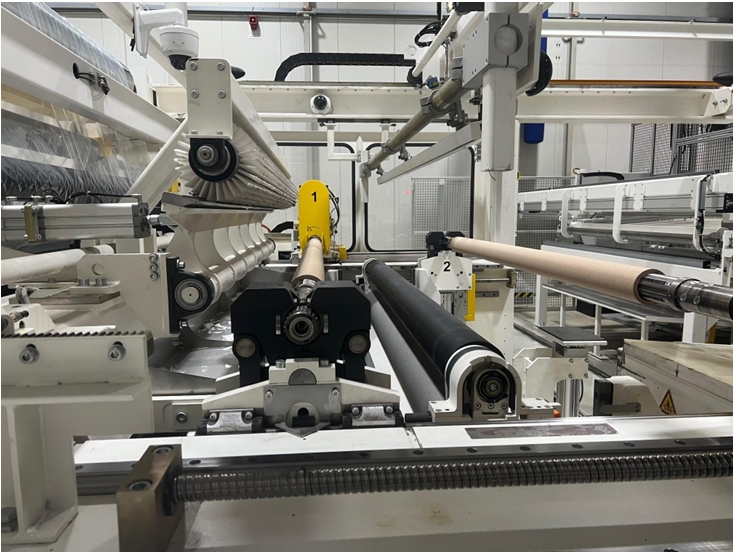

Core Magazine

- Function: Automatic loading of empty winding cores
- Core Types: Cardboard / Plastic
- Core Diameter: 3”

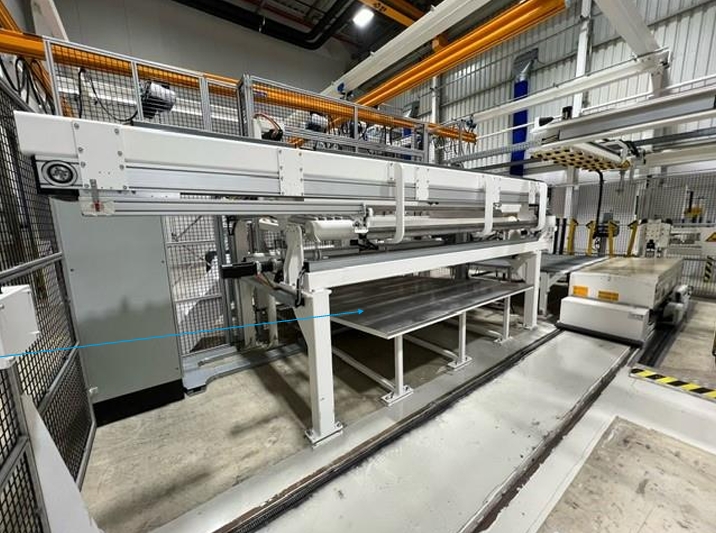

Discharge Table

- Additional Table: Second discharge table available for 15 rolls with a diameter of 200 mm each

Roll Change Cycle Time

- Cycle Time: Max 4 minutes

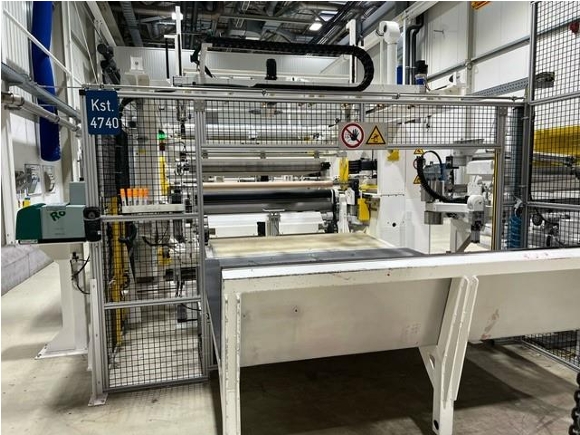

Safety Features

- Safety Measures: Enclosed area with internal scanner
