#3226
Imprinting Press // (Eindruckmaschine)

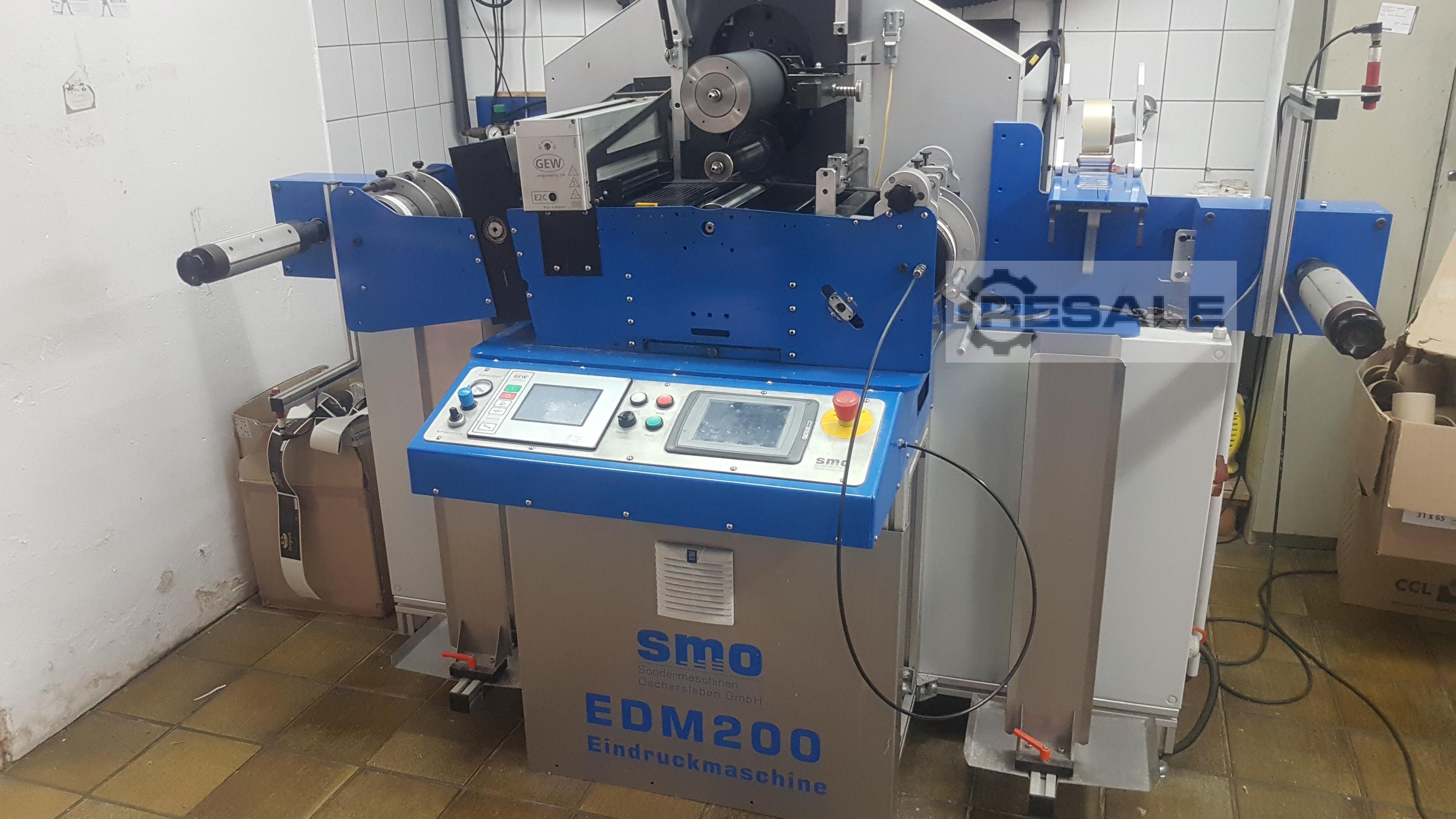

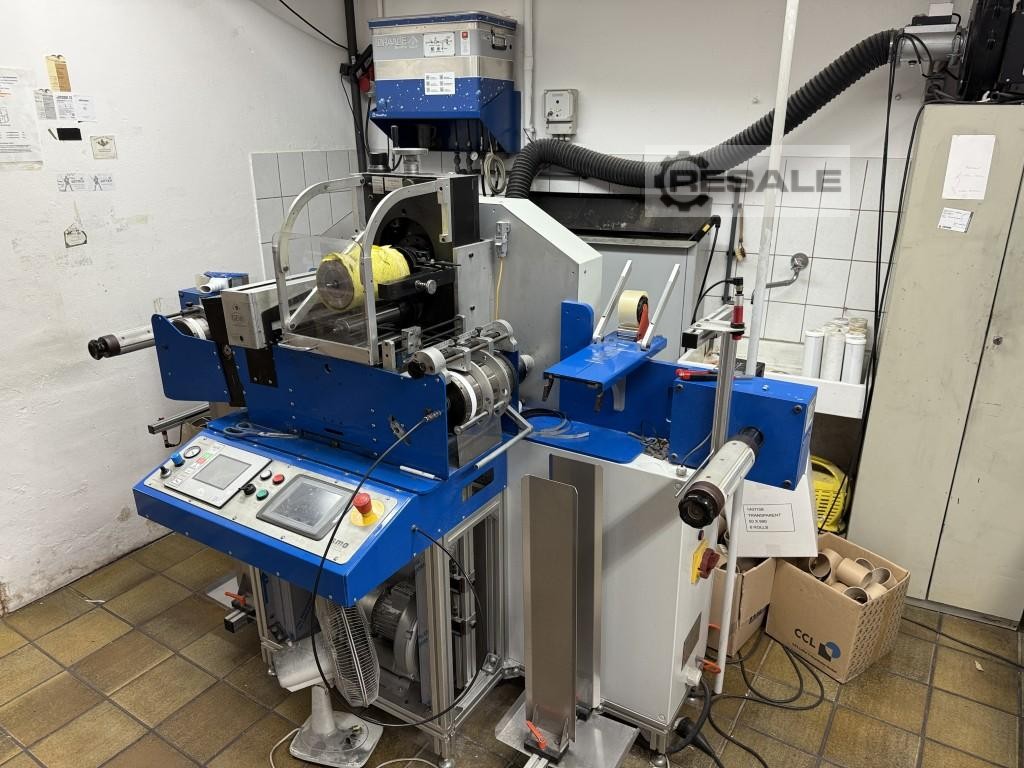

SMO EDM 200
Manufacturer: SMO Germany (Sondermaschinen Oschersleben GmbH)
Age: 2017
Available: 09/2025
Location: Germany
Web width: 30 to 200 mm
UV System: GEW E2C, air cooled

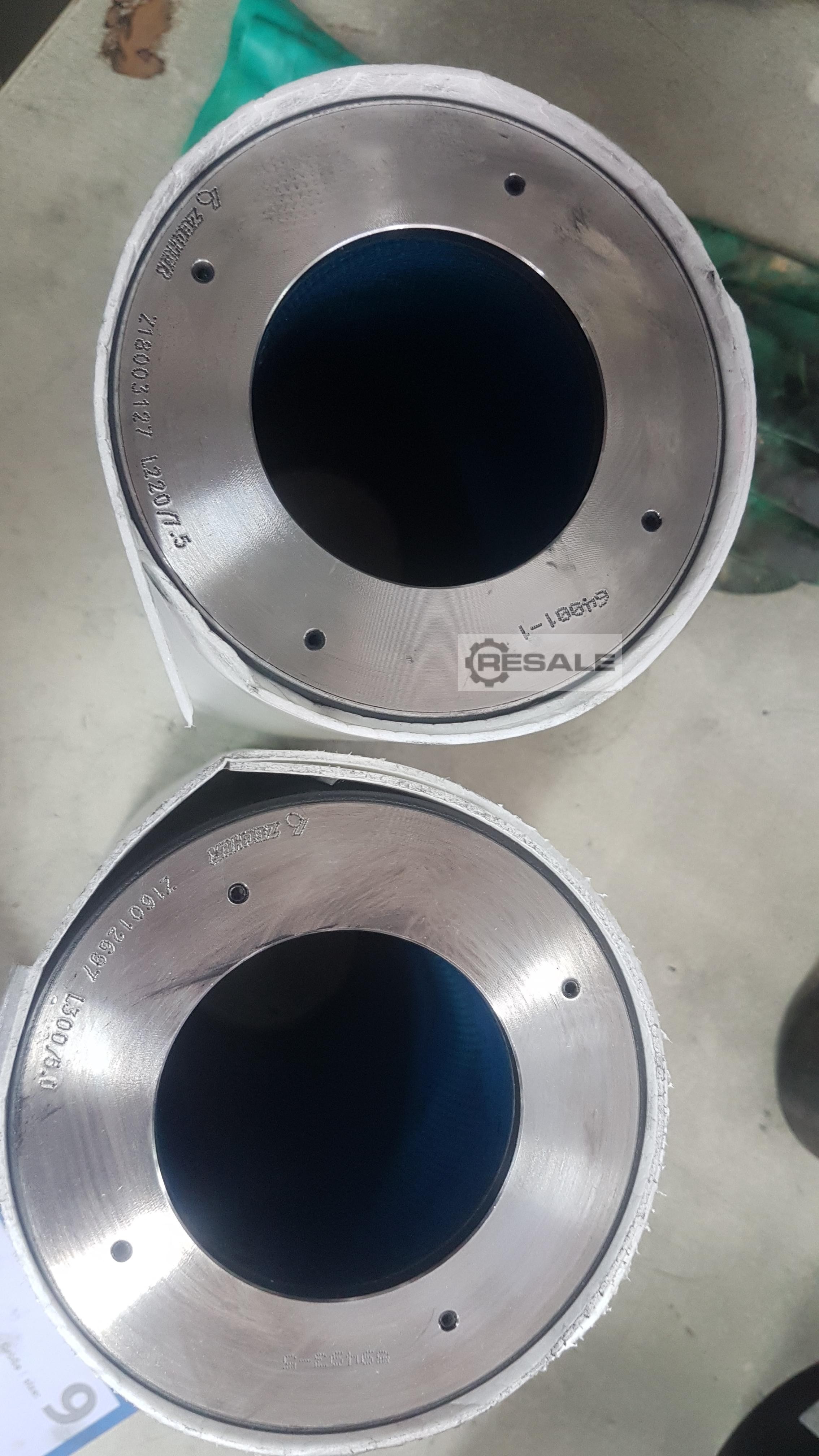

Anilox Rollers: L300/5; L220/7,5
Printig Sleeve: 12``
Basic manfactuer information:
Production speeds:
Semi-rotary mode: max. 200 impressions per minute / 12,000 per hour
Fully rotary mode: Max. 90 meters per minute using 18” sleeve
Repeat range:
10 mm – 457.2 mm (in semi-rotary mode),
10” to 18” (in fully rotary mode) in steps of 1/8”
Sleeve sizes: From 10” up to 18” possible
Substrate thickness range: 60 – 350 g/m2 paper, board and normal
label stock
Reel diameters: Unwind/ Rewind unit = max. 400 mm (max. 40 kg)
Winding spindles: Changeable, standard from 1” to 3”, larger on
request , Winding direction variable
