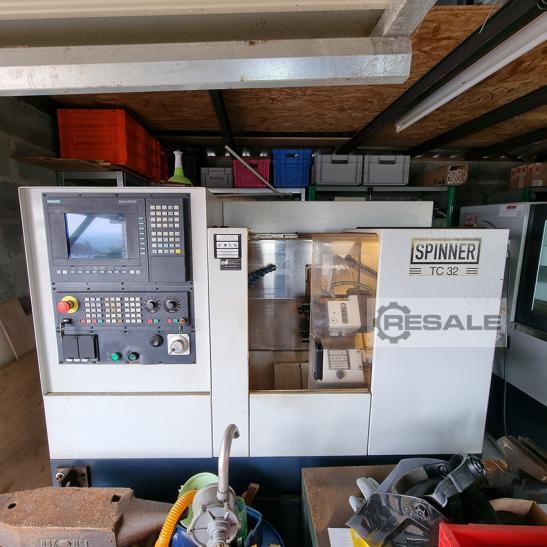

CNC Drehmaschinen SPINNER TC 32

Machine-Details
Stock-No. 1105-03620
Type of machine CNC Lathe
Make SPINNER
Type TC 32
Year of manufacture 1999
Type of control CNC
Storage location HAGUENAU
Country of origin Germany
Delivery time Immediate
Freight basis ex Site

Technical details
turning diameter 150 mm
turning length 300 mm
control SIEMENS 810 D
swing diameter 300 mm
swing diameter over face slide 150 mm
x-axis 400 mm
z-axis 285 mm
spindle passage 32 mm
spindle motor 7,5 kW
spindle turning speed - stepless 8000 U/min
c-axis 0,001°

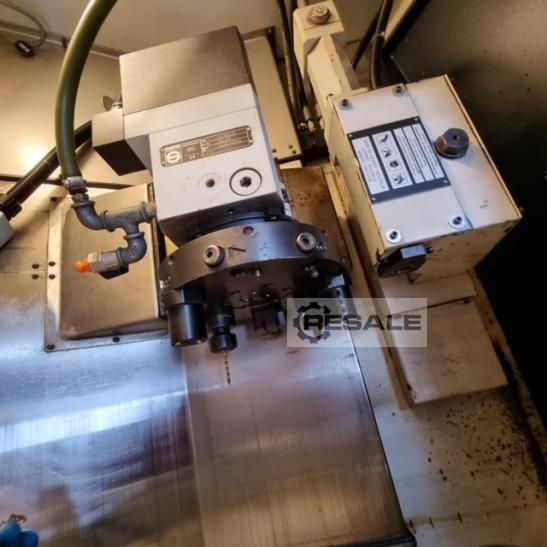

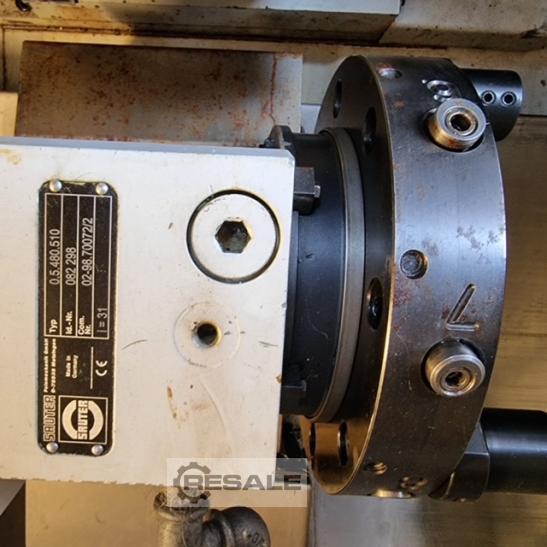

Turret positions 12-fach VDI 25
work piece power 1,2 kW
toolpiece turning speed range 6000 U/min
weight of the machine ca. 1.8 t
dimensions of the machine ca. 2 X 1 X 1.6 m
Additional information
CNC CONTROL SIEMENS 810 D
