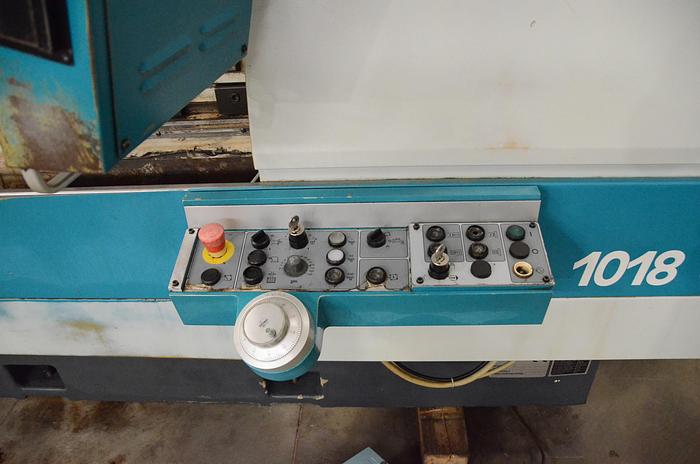

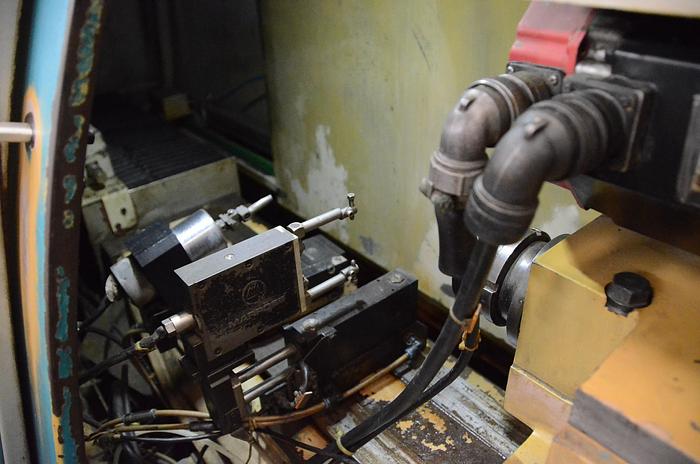

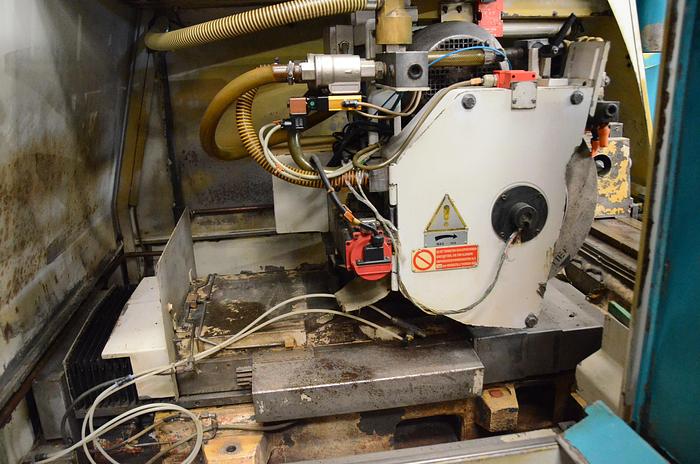

Distance between points: 1000 mm, Ø max to be rectified: 350 mm, Max
travel Z axis: 1.180 mm, Max travel X axis: 350 mm, Height of points:
180 mm, Ø max to be rectified with the left wheel: 350 mm, Left
grinding wheel dimensions (od x id x width): Ø450xØ203x80 mm,
Working wheel dimensions (od x id x width): 508x203.2x80mm, Right

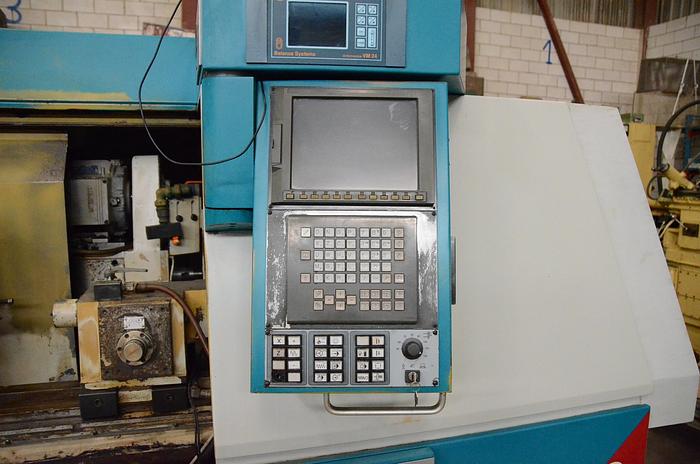

grinding wheel dimensions (od x id x width): Ø300xØ127x40 mm, cnc
brand: FANUC, cnc model: 18TC, Main engine power: 7.5 Kw, Maximum
weight between points: 120 Kg, Total installed power: 15 KW, Standard
peripheral speed: 45 m/s, Automatic grinding head rotation with Hirt
2.5º: +5º_-180º, B axis control system: Incremental encoder + 2.5º
Hirt ring, B axis motor: 2.5 Nm at 3000 rpm, X axis speed: 10,000
mm/min, X axis resolution: 0.0005 mm, Z axis speed: 10,000 mm/min, Z
axis resolution: 0.005 mm, Z axis table rotation: 0º_9º, Workpiece
head cone: MORSE 5, Workpiece head hole: Ø36, Manual rotation of
workpiece head: 0º_15º, Workpiece head speed: 10_800rpm, tailstock
cone: MORSE 4, Counterpoint tour: 35 mm, Lateral tailstock fine
adjustment: +/- 0.10mm, Accessories: Mist aspirator, BALANCE SYSTEM
grinding wheel balancer, Cooling equipment with paper and magnetic
filter, Optical ruler in X and Z axes, Encoder in B axis, Dimensions
(lengthxwidthxheight): 3800 × 2250 × 1800mm, Weight approx.: 6.500
Kg
