Schwerdrehmaschinen TACCHI DB 1900 x 10.000 Series 132 L

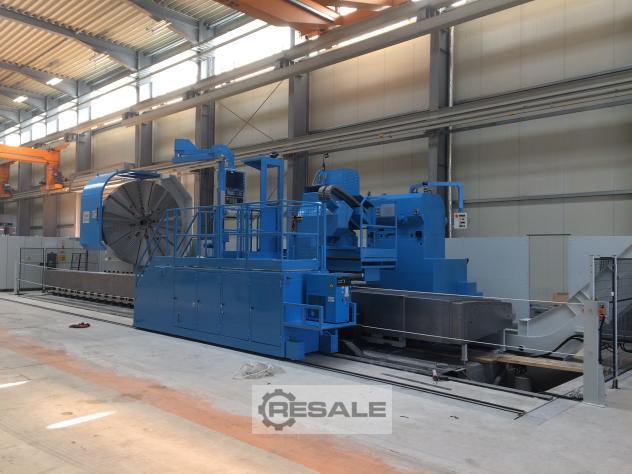

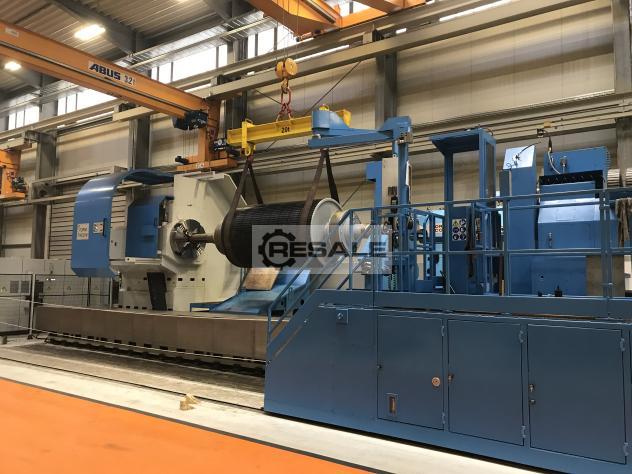

1.1. Tacchi turning lathe Modell DB 1900 x 10.000 Series 132 L

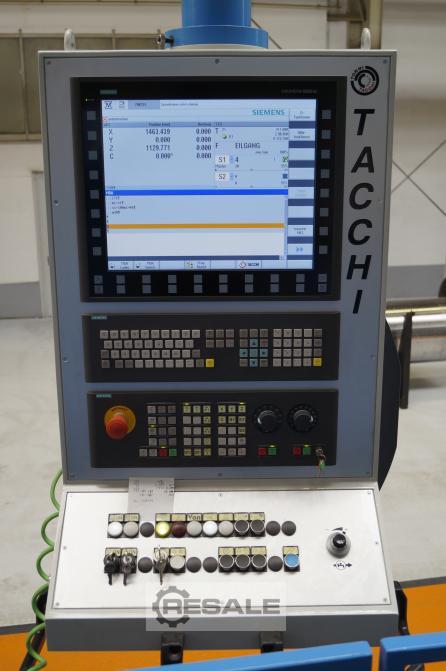

• CNC Sinumerik 840 DE-SL
• Centre height from the ways 1.900 mm
• Max. swing over saddle 3.050 mm
• Swing over bed, without telescopic covers 3.300 mm
• Max. work piece weight 40.000 kg
• Min. and max. distance between headstock and
Tailstock without steady rests 500 – 10.000mm

• Main headstock

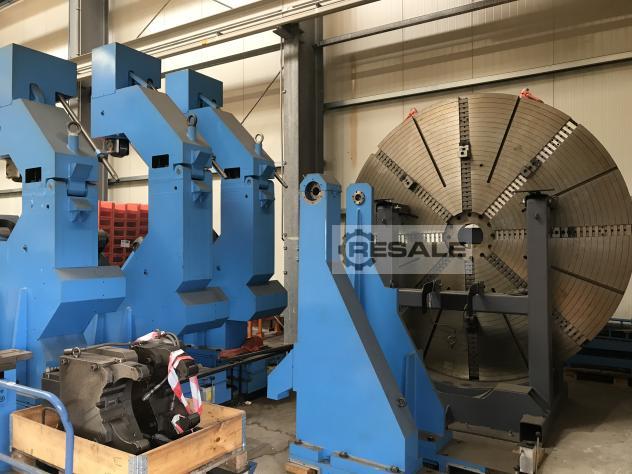

o Diameter face plate 3.000 and additional 1.000mm
o Integrated C-Axis
o Drive power S1 (100%) 95 kW
o Range of spindle speed 1 – 400 rpm
o Number of speed ranges 3
o Max. torque 80.000 Nm
o Spindle nose DIN 55026 20”
o Spindle hole 160mm

• Tailstock
o Quill diameter 450mm
o Quill stroke 200mm
o Internal taper Metric 100 at 60°

• Equipment
o 12-position live tool turret
 Station diameter VDI 620mm
 Power 18,5 kW
 Max. torque 400 Nm
 Max. Speed 1.500 rpm

o Y-axis
 Vertical stroke ±80mm

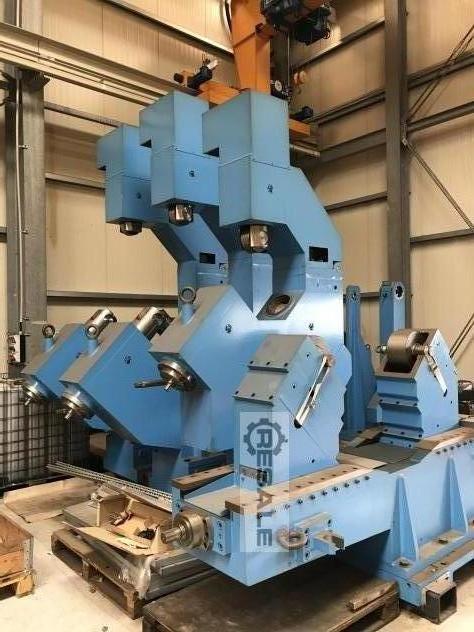

o Steady rests
 2 pcs. 200 - 700mm
 2 pcs. 700 – 1.400mm
o Bridge-type steady rest 1 pcs. 1.400 – 2.500mm
o Tool holder axial 2 pcs. CAPTO C8
o Tool holder radial 2 pcs. CAPTO C8


o Deep hole drilling device
 Power 15 kW
 Speed 0-5.000 rpm
 Diameter 5-20mm
 High pressure coolant 50 bar



• Manufacturing Year 2017
