Manufacturer: TIBO
Model: 3-Spindel
Type of Machine : Deep Drilling Machine
Technical Data

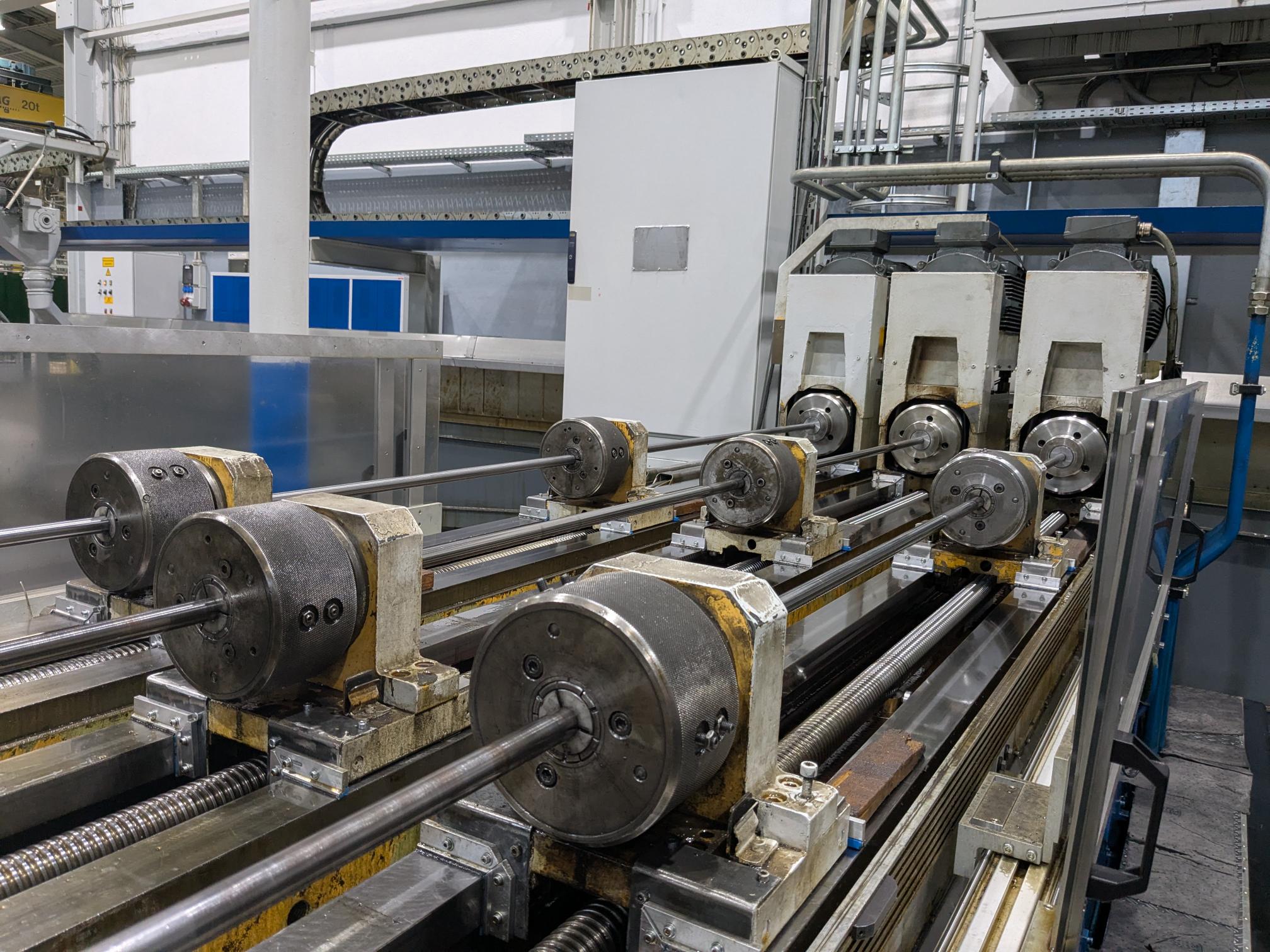

Deep Drilling Unit:
- Control: Mitsubishi (Semi-NC)
- X-axis travel: 14,000 mm
- Y-axis travel: 300 mm
- Z-axis travel (max. bore depth): 2,650 mm
- Number of drilling spindles: 3
- Spindle spacing: 325–375 mm
- Motor power per spindle: 22 kW
- Table dimensions: 6,000 x 4,000 mm
- Number of tables: 2
- Max. workpiece weight per table: 50 tons
- Max. workpiece dimensions per table: 6,000 x 4,000 mm
- Max. total workpiece dimensions: 12,000 x 4,000 mm
- Max. bore diameter: 65 mm

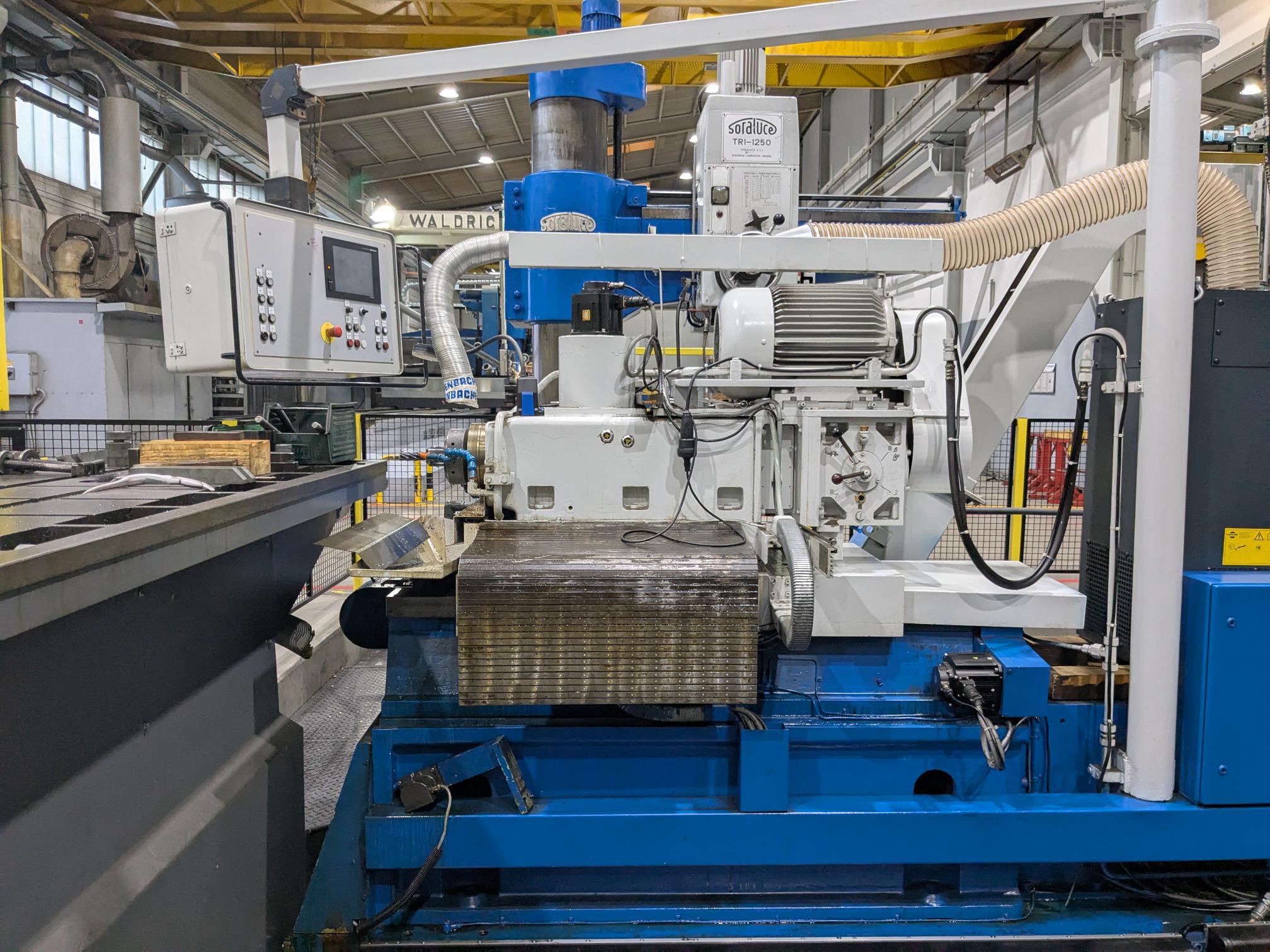

Milling Unit:
- X-axis travel: 14,000 mm
- Max. milling diameter: 52 mm (HSS roughing cutter)
- Milling spindle power (S1/S6): 8.7 / 13 kW

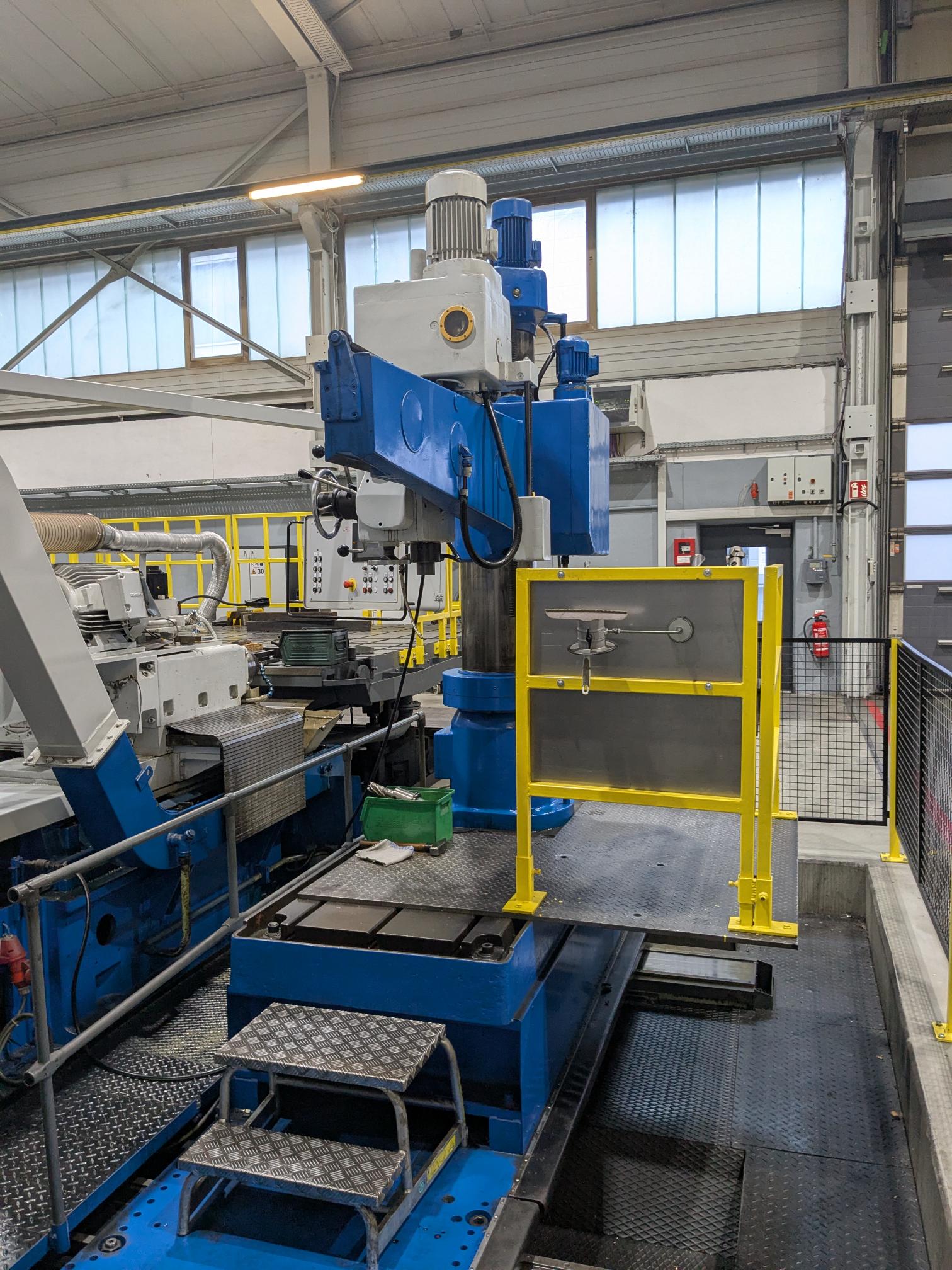

Manual Upright Drilling Machine:
- X-axis travel: 14,000 mm
- Z-axis: not specified
- Max. bore diameter: 50 mm
- Special feature: Table can be raised or lowered by 300 mm
Tools:
- Various BTA drill heads (Ø20 – Ø65 mm)
- Various BTA drill tubes
- Various HSS roughing cutters
Clamping Devices:
- Traditional clamping straps and threaded rods
