Mischanlagen turbo stirrer for spray cream

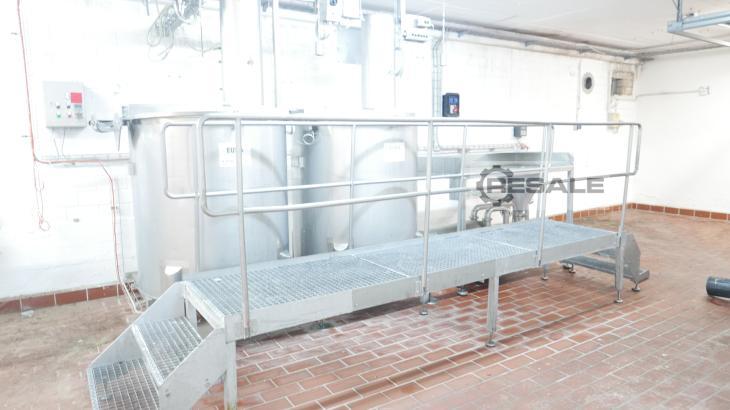

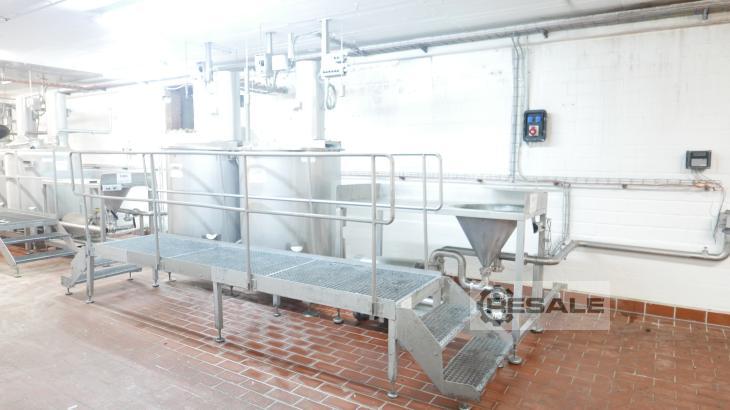

1,216 liter turbo stirrer for spray cream 2 pieces with mixing table

Characteristics:
Volume container 1 1216 liters
Volume container 2 1216 liters
material V2A (AISI 304) 1.4301
Outside surface 2B=IIIC ground
Surface inside 2B=IIIC ground
Total height 2700 mm
Width 2000 mm
length 6000 mm
Number of feet 4

Description
MJ UNI-HOCH

Consists of 3 parts with pedestal

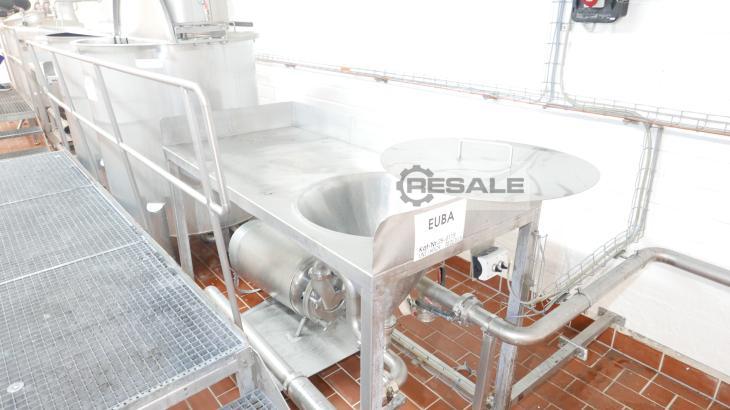

Part 1/3 Mixing table

Dimensions:

Length: 1,750 mm

Width: 800 mm

Height: 1,300 mm

Part 2/3, 3/3

per container with a capacity of 1,216 liters

Dimensions:

Total height: 2,700 mm

Cylinder height: 1,250 mm

Inner diameter: 1,150 mm

Container description:

Topsoil:

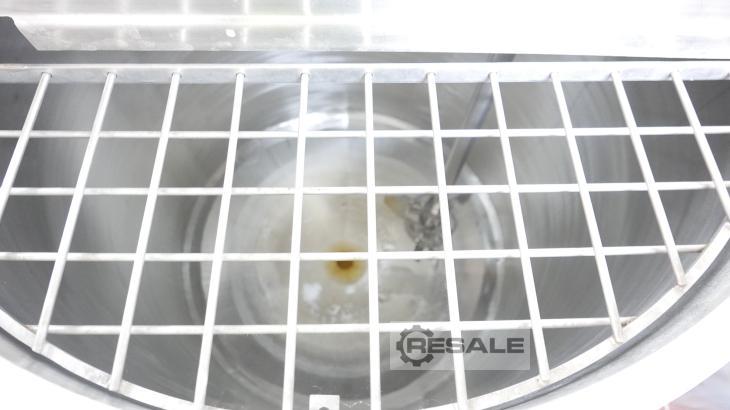

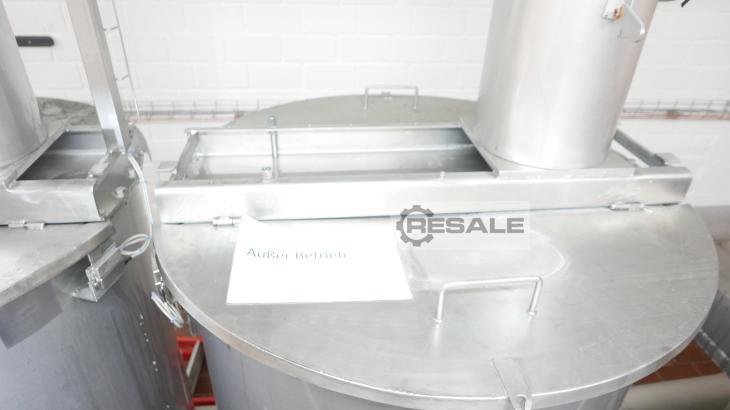

Lid with 1/3 flap at the front and back with grid
Propeller agitator

Underbody:
Residual drain pipe connected to line
4 fixed feet on each frame
Verkäufer Angebot Nr. resale 25-0119EUBA
