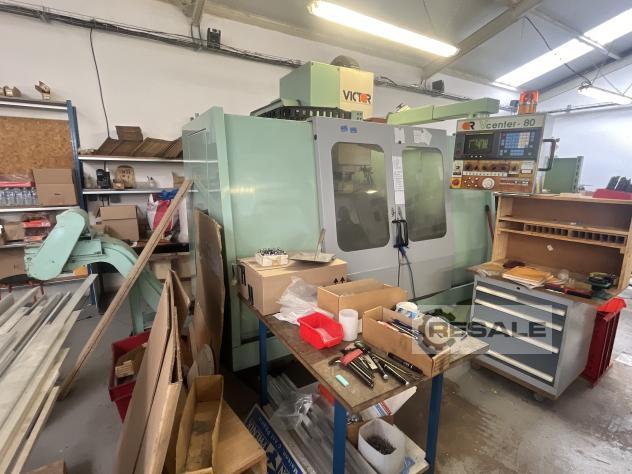

CNC Bearbeitungszentren VICTOR VCENTER 80

x-Weg:800 mm

y-Weg:500 mm

z-Weg:560 mm

Machine-Details
Stock-No. 1105-04061
Type of machine Machining Center - Vertical
Make VICTOR
Type VCENTER 80
Year of manufacture 1996
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Taiwan
Delivery time to be agreed upon
Freight basis EX WORK
Price

Technical details
x-travel 800 mm
y-travel 500 mm
z-travel 560 mm
feed speeds x/y/z axis 18 m/min
distance spindle center to column: 600 mm
tool taper BT-40
spindle drive 5,5 / 7,5 kW
spindle turning speed - stepless 8000 U/min
table dimensions (lengthxwidth) 950 x 500
max. table load 750 kg
tool magazin: 32
max. workpiece weight 7 kg
Additional information

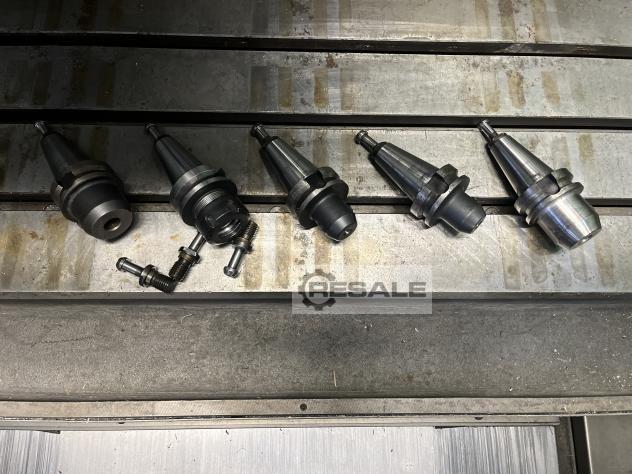

Including accessories, tool tapers, , tools and documentation.

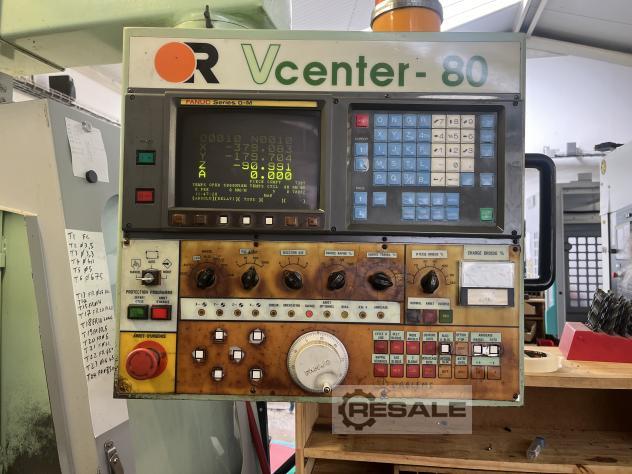

FANUC OM
chip convoyer
Verkäufer Angebot Nr. resale 166831662
