VOJTA Chocolate mill 500kg/5h

Nahrungsmittelmaschinen / Sonstige Nahrungsmittelmaschinen

Geprüfter
Händler

RESALE Anbieter seit 2019

Anfrage

merken

Anfrage sendenAnfragen

Eintrags-Nr.: 137907410	Anzahl: 1
Baujahr: Neumaschine	Standort: Österreich 1010 Wien, Mahlerstraße 12/6/3/2

Preis: [netto]	75.000 EUR
Hersteller:	Vojta
Modell:	Chocolate mill 500kg/5h

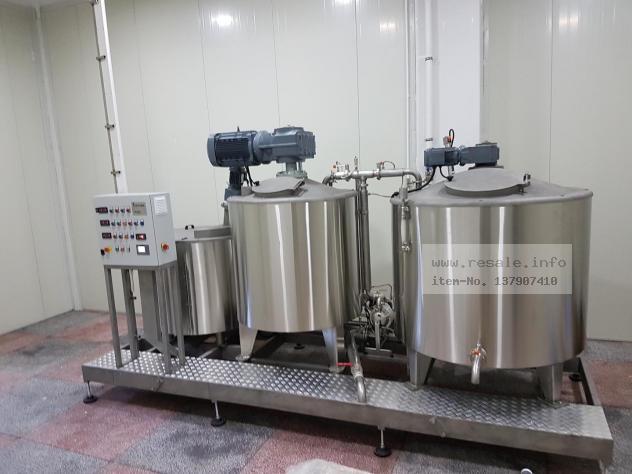

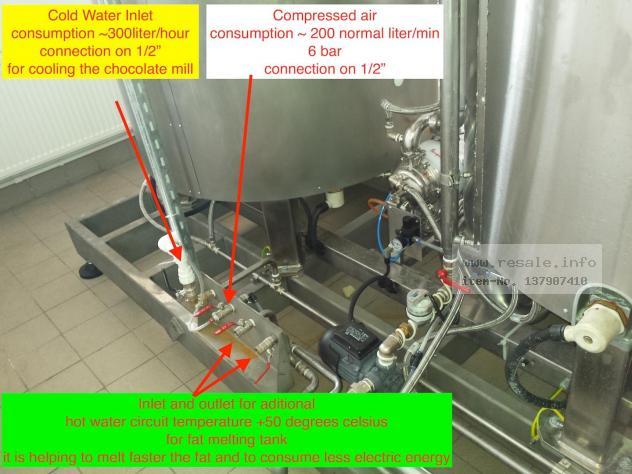

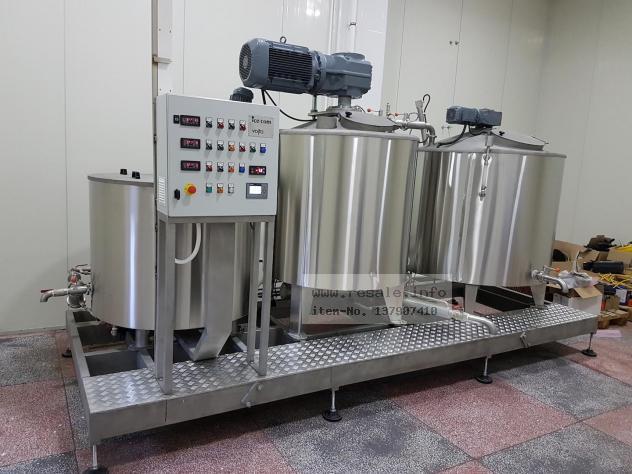

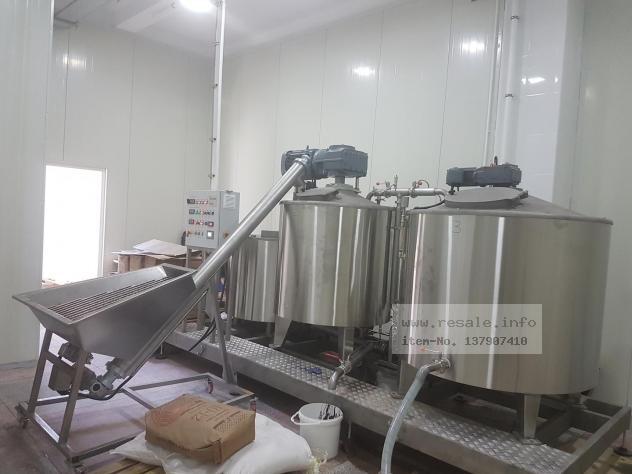

Beschreibung:	Vojta Chocolate mill 500kg/5h Neumaschine Integrated equipment for production of chocolate, chocolate cream and chocolate coating for ice cream.The fat is melted in the heated fat melting tank, then fat is dosed into the temperature controlled chocolate ball mill where is added sugar, cocoa powder and other ingredients, being milled for about 4-6 hours at a controlled temperature. In the first part of the process the tank is heated then cooled by tap water. After milling the chocolate is transferred to the chocolate storage tank. Fat melting tank 540l heating by water jacket and electrical resistor heated grid with 250l beneath the grid volumetric dosing pump controlled from switch board 0,55 kw, app. 200 rpm stirrer 13,1 kW - installed power 2 x 6 kW = 12 kW - heating resistors 0,55 kW water circulation pump stainles steel filter heated fat dosing pump Ball refining tank 500l working capacity production of chocolate and coverture chrome/nickel vessel app 700 kg free rolling steel balls tempered stirrer with high stiffnes propelled by SEW motor coverture pump for constant movement of product heating system in water jacket temperature control of water jacket insulation of tank with mineral wool 18 kW installed power 11 kW stirrer motor with 43 rpm rotation frequency 4 kW heating element 0,09 kW water circulation pump 200l/h cold water consumption 40l/min air consumption at 5 bar Storage tank 1200l 12,75 kW installed power 2 x 6 kW heating elements 0,75 kW stirrer motor heating / cooling by water jacket 11rpm sitrrer driven by SEW motor with scraper on bottom max. level sensor Platform with switch board connecting piping with heat jacket switch board mounted on platform central electrical, air, hot and cold water connection dimensions L 4300mm W 1750mm H 2150mm 3000 kg total weight Verkäufer Angebot Nr. resale 137907410
