CNC Bearbeitungszentren WEEKE OPTIMAT BHC Venture 08M

Excellent condition - Fully operational - Loading / Transport possible!

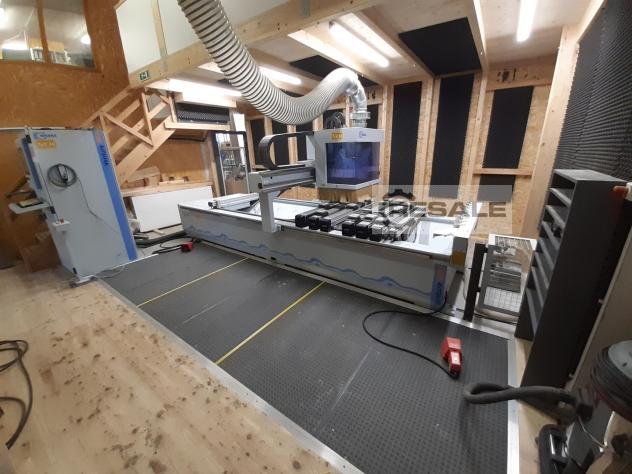

VENTURE 08M CNC - controlled machining center in moving gantry design travels of the axes: X = 3930 mm Y = 1953 mm Z = 300 mm working table: X = 3100 mm (length) Y = 1250 mm (width) Z = 100 mm (thickness) 50 mm (passage height without vacuum cups)

CONFIGURATION: V12, H4X/2Y, N1 X-Y 90°, F1-HSK63-9KW, C-AXIS, W8 REAR, W8 SIDE V12 HIGH SPEED 7500
incl. quick change system and spindle clamping
Vertical drilling unit (individually controllable with variable speed range).
Spindle clamping for safe achievement of drilling depth. F1-HSK63-9 KW
Automatic tool change spindle in combination with lateral tool change magazine.
Tool holder: HSK63
Tool retraction: automatic
Direction of rotation: right/left
Speed: 1.250 - 24.000 1/min infinitely programmable C-AXIS AGGREGATE INTERFACE W8 REAR
Automatic tool change magazine 8 SIDE
Automatic tool change magazine

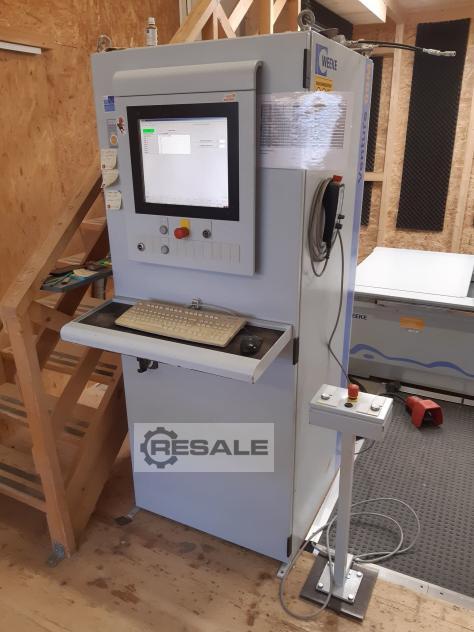

Power control PC85 Modern control system based on Windows PC

Verkäufer Angebot Nr. resale 169362838
