CNC machining center WILLEMIN 508MT
TECHNICAL FEATURES:
Year: 2016
NC Type: FANUC series 31i-B5
Number of continuous axes: 5
X-axis travel: 450 [mm]
Y-axis travel: 200 [mm]
Z-axis travel: 425 [mm]
Fast travel speed X, Y and Z: 40000 [mm/min]
Acceleration of axis displacement: 10 [m/s²]
Maximum diameter in bar turning spindle: 42 [mm]
Maximum speed Turning spindle: 6000 [rpm]
Maximum power turning spindle: 7.5 [kW]

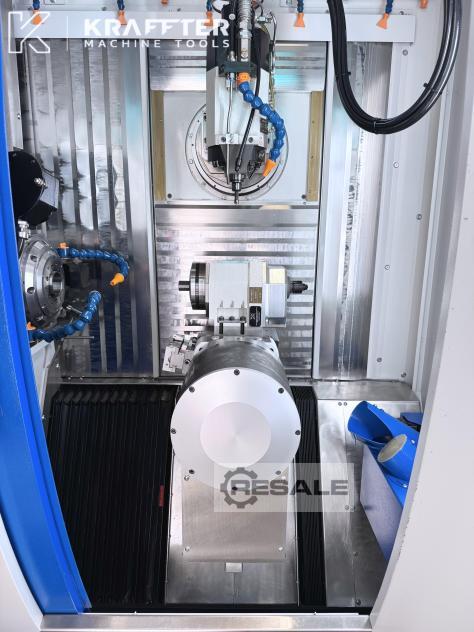

A-axis angular travel: 360 [°]
A-axis resolution: 0.001 [°]
A-axis drive: Torque-motor
A-axis spindle nose: A2-4"
B-axis angular travel: -15 [°] / +100 [°]
B-axis resolution: 0.001 [°]
B-axis drive: Torque-motor
Pin Attachment: HSK-E40
Maximum speed Spindle: 42000 [rpm]

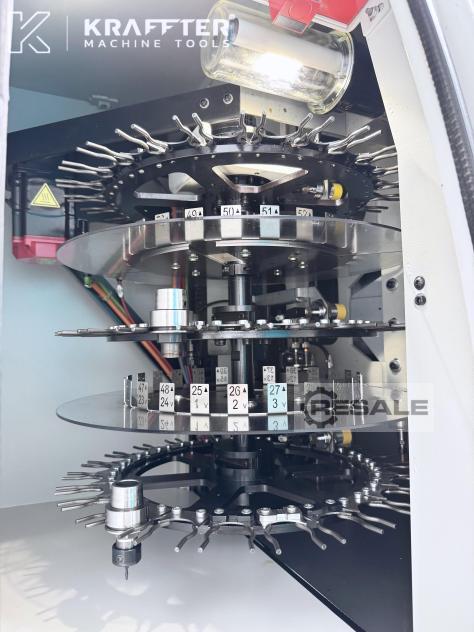

Number of tool magazine stations: 72
Maximum length Tool Size: 150 [mm]
Maximum diameter Tool Size: 80 [mm]
Tool Change Time: 1 [sec]
Time between cuts: 3 [sec]
Irrigation tray capacity: 150 [l]
Flow rate garden pump: 60 [l/min]
Rated Current: 50 [A]
Installed power: 35 [kVA]
Supply voltage: 400 [V]
Working time: 9701 [h]
Machine weight: 3300 [Kg]
EQUIPMENT INCLUDED:

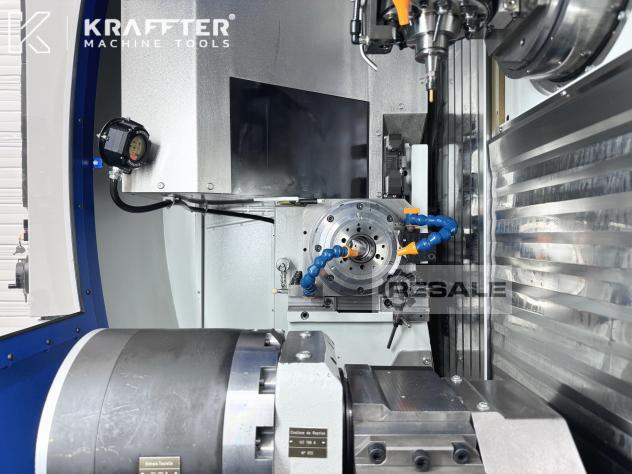

x1 Resumption unit with integrated 3-position turret on linear
slide
x1 vice on the recovery unit
x1 sub-spindle on the rework unit
x1 42,000 rpm spindle with air/oil lubrication
x1 RENISHAW OMP40-2 part probe
x1 BLUM LaserControl NT laser measuring system for tool setting and
control
x1 tool breakage detection device DETECTOR FRANCE type 202
x1 collet chuck A2-4"
Set of 58 tool holders HSK-E40
x1 Self-tightening drill chuck
LNS Super Hydrobar bar feeder, type 6.42 HS 3.2
Various equipment for LNS Super Hydrobar bar feeder
Technical Manuals Set
x1 Backup Settings
Machine visible under tension for testing at our premises, by
appointment.
Price excl. VAT on request, including truck loading.
Possibility of shipping throughout France as well as
internationally.
More photos and details on request.
Technical description for information purposes only, without
obligation on our part.
Machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, Axa,
Chiron, Matec, Reiden, Lagun, Haas, Alzmetall but also milling drill
and tapping machine, CNC grinding machine
