eference ID PP-40000
Category Label Printer
Manufacturer -
Model 3300
Year Built 2015
Color 4
Impression -
Working Hours -
Speed 19,2 m/min
Max. Size 200 - 330 mm
Min. Size -
Condition Good
Location Europe
Availability -

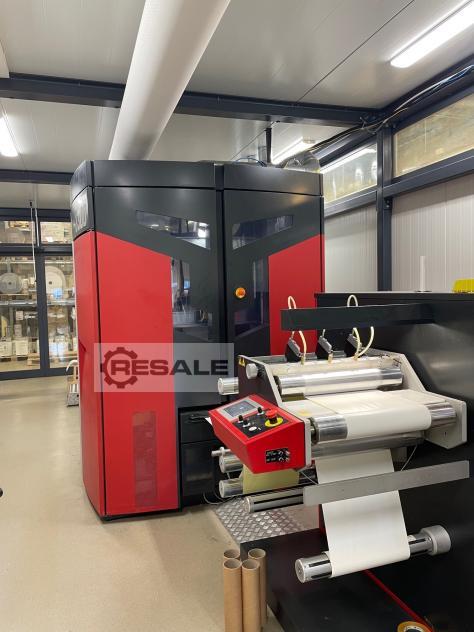

Machine Description
process: LED-array-based, dry toner electrophotography full rotary
operation
color configuration: 5/0 simplex
In-line density control: standard
in-line register control: standard
toner: Xeikon FA toner, Pantone® calibrated (pending) - CMYK, spot
colors,
opaque white or security toner
pre-printed stock functionality: standard
web-fed: SA label (paper, PP, PET, vinyl, co-extruded film),
unsupported film,
paperboard, paper
media width: 200 - 330 mm (7.9" - 13.0)
media weight: 40 - 350 gsm (27 lb text to 122 lb cover)
media caliper: 40 - 350 um (1.6 mil - 13.5 mil)
web speed: 19,2 m/min (32.0 cm/s; 63.0 ft/min) (paperboard 9.6 m/min
(16.0
cm/s; 31.5 ft/min))
Duty cycle: up to 700,000 m/month (2,300,000 ft/month)
Imaging: addressability: 1200 x 3600 dpi with variable dot density,
screening:
Pericles screening library imaging width: 322 mm (127") repeat length:
variable
(0 - 55 m; 0 - 180 ft)
Digital front-end: Xeikon X-800 included, Barcode library (optional),
Trapping
module (optional)
Input unit: print medium supply unit (PMS) with splicing station,
maximum roll :
600 mm (23,6”) - max. roll weight: 100 kg (220.5 lb)
Jumbo Unwinder (optional)
Output unit: web output standard, rewinder (optional), cutter
(optional)
Finishing options: UV flexo varnish, high gloss or lamination, seml or
full rotary
die cutting, slitting, matrix stripping universal 3-phase
Power requirements: Universal 3-Phase
Compliance: CE, GS-pending, CB-pending, FCC-pending
