Bell + Howell Parcel Sorter Bell & Howell

Zum Verkauft steht ein gebrauchter Parcel Sorter.

The Sorter solution consists of a high speed processing system capable of the following:
• Ergonomically designed manual induction prep section for 2-operators that will allow
efficient processing:
• 5,000 pieces per hour (pph) in barcode reading mode with a single operator. This
mode does not require orientation of the product and will be used for the reject
processing of parcels back into the Parcel Manager- (extreme pieces must be
oriented).
• 5000 pph for labeling and OCR mode with two operators. This mode requires the
operator to orient and bring the product to the edge.
• Automated product gapping with minimal skewing
• In-motion weighing and dimensioning
Jcg2w8n

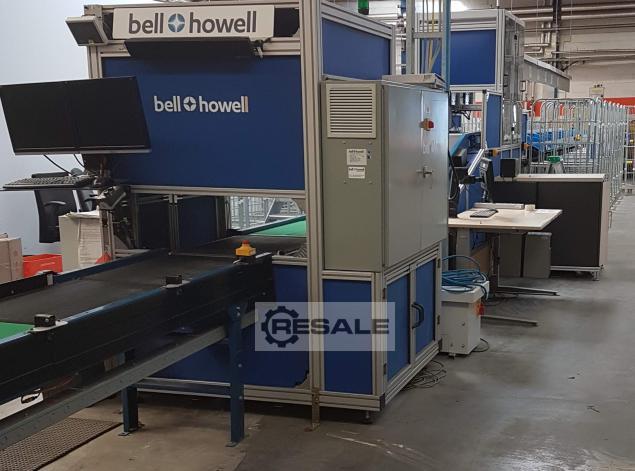

• Top read, full piece image, omni-directional camera solution with complimentary dual
barcode reading and OCR address reading software

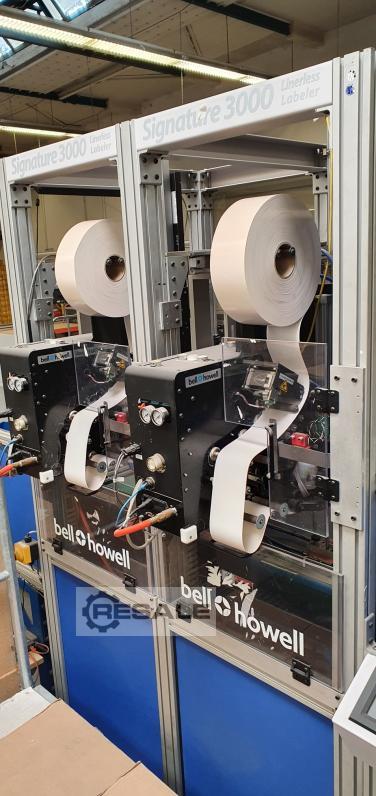

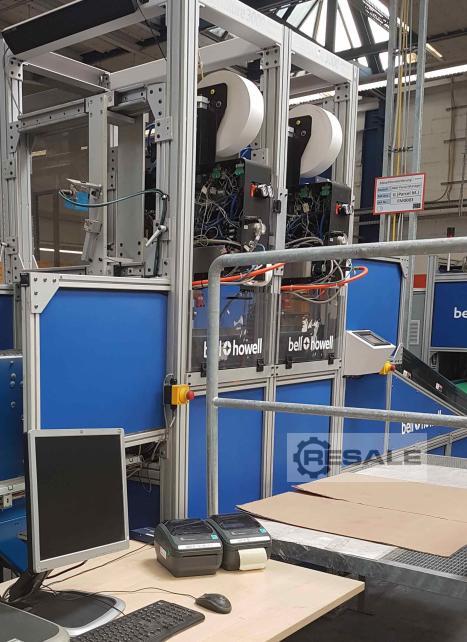

• High speed linerless print and apply labeling system with stand.

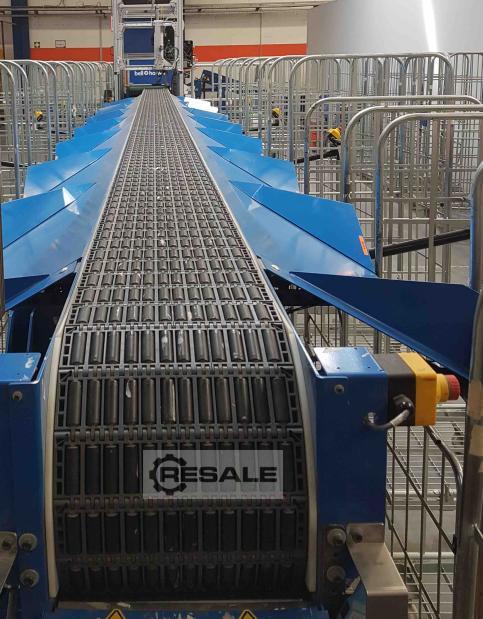

• Sorting, consisting of:
• Multiple parcel sized outputs into 1 meter (39 in.) containers
• Bin Confirmation sensors
• Tray label printers
• Overhead system displays for the operators

The system is design to handle throughputs up to 5,000 pph.

Parcel Specifications
The system can handle various types of parcel products including but not limited to envelopes, corrugated boxes, polybags, cellophane covered boxes, soft packs, and vacuum-sealed products.
The table below specifies the range of product for the Parcel Manager system. Feeding limitation includes high aspect ratio, the proportional relationship between its width and its height, pieces and pieces with significantly irregular surfaces. The product can be fed and processed in either portrait or landscape orientation.
Below the specifications for packages that the Parcel Manager can handle.
Parcel Specifications

Length (distance along transport path) min. 150 mm (5.9 in.) max. 600 mm (23.6 in.)
Width (distance perpendicular to transport path) min. 100 mm (3.9 in.) max. 300 mm (11.8 in.)
Height/thickness (distance above transport bed) min. 5 mm (0.196 in.) max. 160 mm (6.3 in.)
Weight min. 0.014 kg (0.03086 lb) max. 13.6 kg (30 lb)
