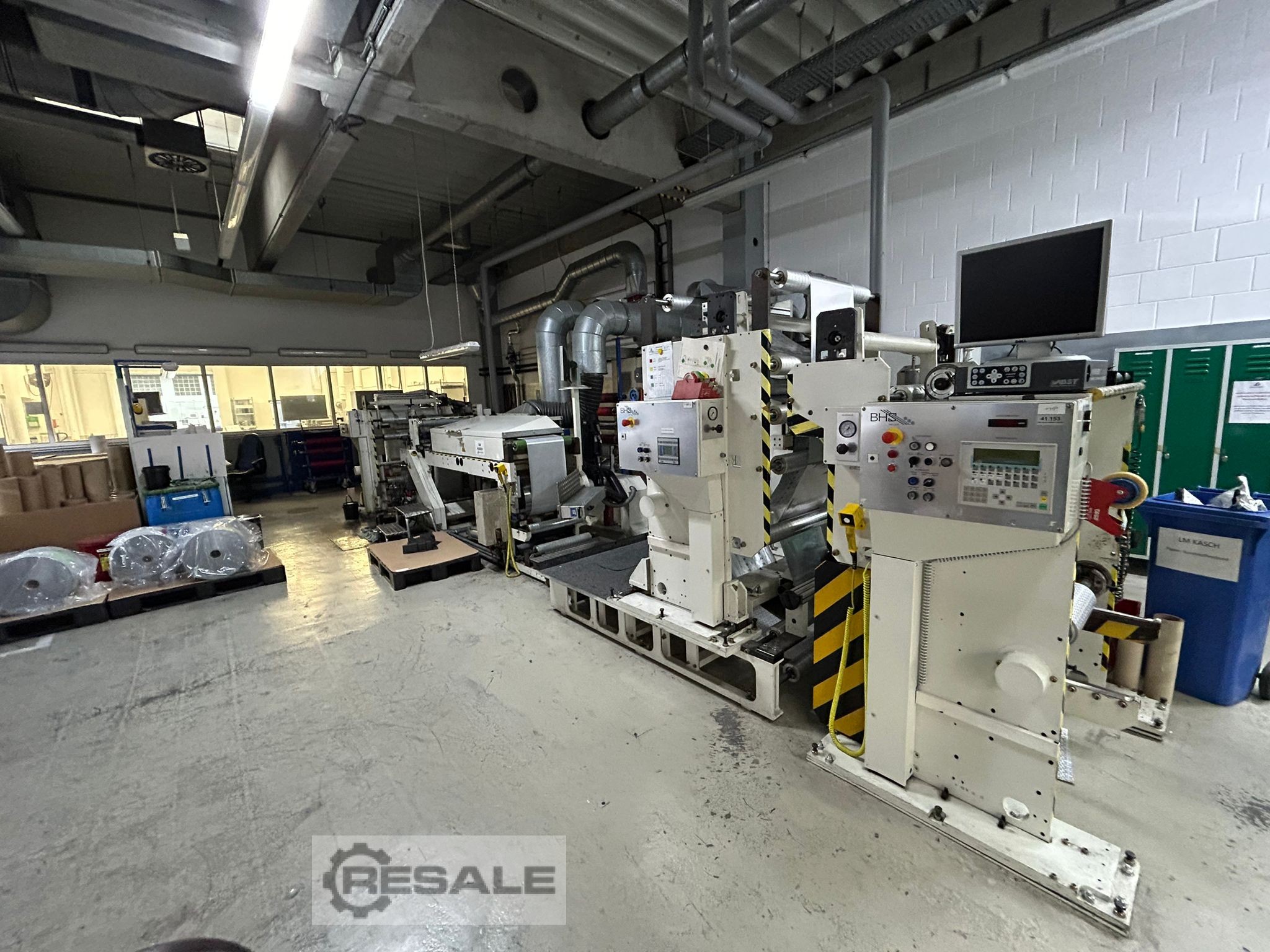

Painting and laminating system BHS Gallus solvent/UV
Type: BHS AF-5001 KT Age : 2004
Material width: max. 530 mm
Print width: max. 524 mm
Material thickness: PET, OPP, aluminum and composite materials 12 –
150 µm
Mechanical speed: 0 to 200 m/min.
Production speed depends on the material,
Format length: 300 to 610 mm
Rapport adjustment: manual
Color system: solvent solvent / UV INKS
Squeegee system: Closed chamber squeegee with pump
Typing speed: max. 10 m/min.
Roll diameter: 800 mm (unwinding 1-2 and rewinding)
Roll weight: max. 350 kg
Format step: 5 mm (helical teeth)
Web tension: 20 – 200 N
Drying UV: IST water-cooled 200 W/cm
1 UV
Sleeve diameter: 76mm
Corona treatment device: 2 pieces Corona device Arcotec HF (CG 30-2) 2
KW
Video train observation: BST 3000
Side edge control: 2 pieces of web edge control ultrasonic
Edge sensor from E-L
Compressed air: 6-8 bar (water/oil free)
Drying system: Hot air drying horizontally + electric heating register
and supply air valve
Length 1.8 m each
Temperature Max 120°C
Air volume approx. 3000 M³/h
Cooling water 2-3 bar pressure / approx. 15°C-20°C flow temperature
for cooling cylinder
Deutschland
42855 Remscheid
