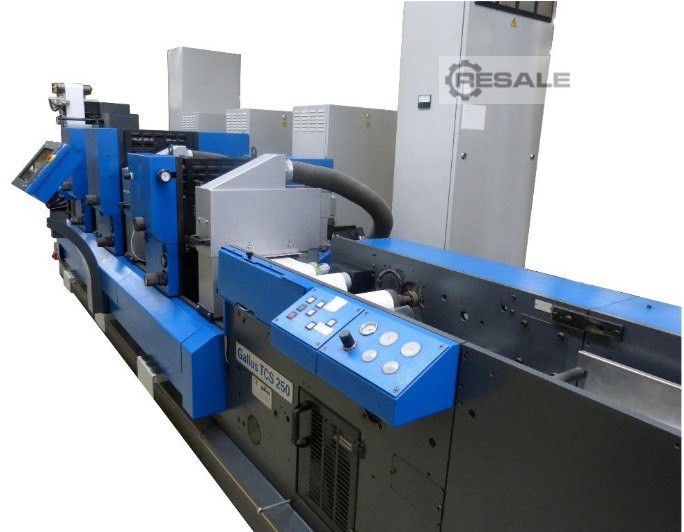

Gallus TCS 250 Tampondruckmaschine

Technical data
Information on the technical equipment of the machine

Length: 10509 mm
Height: 2806 mm
Total weight: 9500 kg
Max. Printing speed: 11,000Dr/h
Printing material width: min. 130 mm, max. 265 mm
Print width with print mark: max. 254 mm
Format length: max. 254 mm (10“)
Unwinding roll diameter: max. 1040 mm
Unwinding spindle: 3" (max. 300 kg)
Rewinder Spindle: 3“
Grid Winding Spindle: 3“
Reel diameter: max. 300 mm
Grating trigger Roller diameter: max. 800 mm
Components of the machine

- Unwinder -Web trimming / edge trimming
- Web edge control -Ionization device

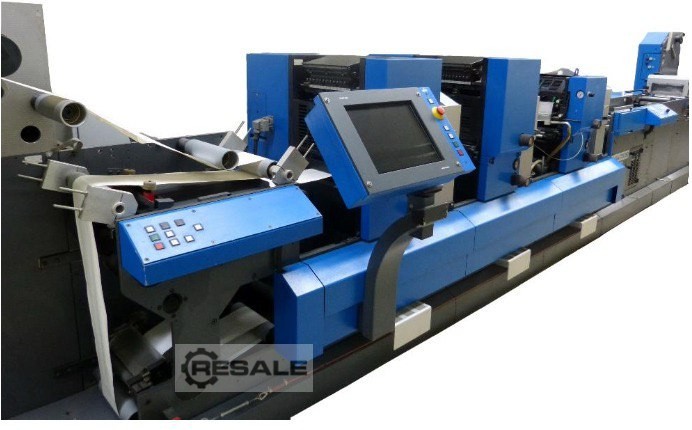

- Touch screen control panel
- 2x letterpress printing unit
- 1x painting unit (Flexo) -Loop box
- -Rotary die cutter with the following magnetic cylinders (Z72, Z74, Z76, Z78, Z80, Z84, Z88, Z92, Z96, Z100, Z104, Z108, Z112, Z116, Z120, Z124)
- Wire mesh winding unit
- Outlet part
- Coiler
- 3x UV drying by Uviterno
