Hochgeschwindigkeits-Fräszentren (HSC) CHIRON FZ08 KS Magnum

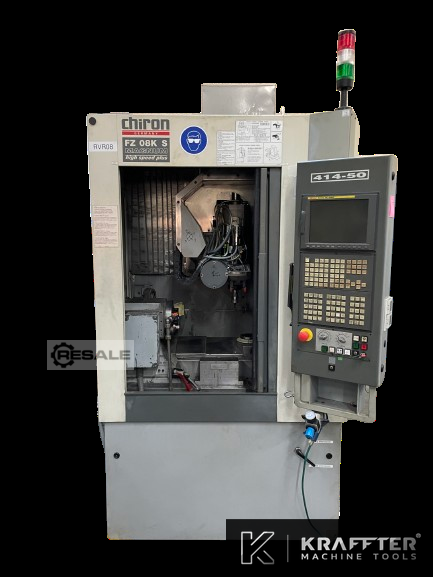

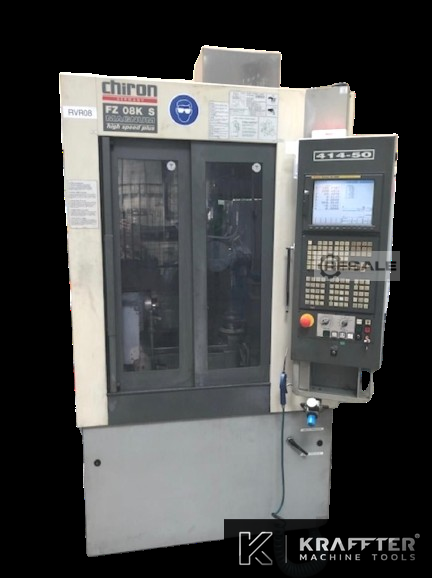

CHIRON FZ08 KS Magnum machining center

TECHNICAL FEATURES:

Year: 2006

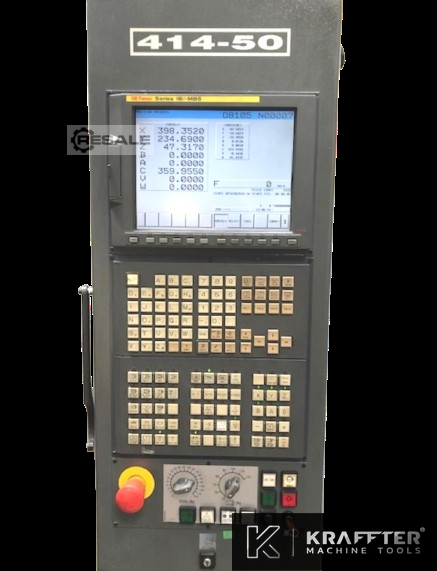

NC Type: FANUC 18i-MB5
Number of axes: 7
X-axis travel: 450 [mm]
Y-axis travel: 270 [mm]
Z-axis travel: 310 [mm]
Fast travel speed X, Y and Z: 30000 [mm/min]
Maximum diameter in bar turning spindle: 32 [mm]
A-axis angular travel: 360 [°]
A-axis indexing accuracy: 0.001 [°]
B-axis angular travel: -20° / +115° [°]
B-axis indexing accuracy: 0.001 [°]
Pin Attachment: HSK40
Maximum speed Spindle: 30000 [RPM]
Number of Tool Magazine Stations: 49
Turning part by robot (6th side machining): Yes
RS232 Port: Yes
Installed power: 17 [kVA]
Supply voltage: 400 [V]
Number of hours under power: 20292 [h]
Operating hours: 9911 [h]
Dimensions: 1500 x 2600 x 2300 [mm]
Weight: 3400 [Kg]

EQUIPMENT INCLUDED:

x1 Spindle Cooling Unit
x1 Parts Collector with Conveyor Belt
x1 watering tray
x1 unit for 6th side machining
x1 Collet Chuck

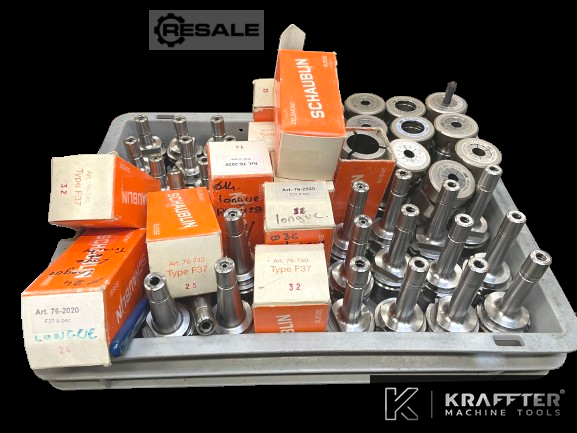

x30 tool holder type HSK40 BIG KAISER
x15 SCHAUBLIN F37 Collet Type
x1 Maintenance Manual
x1 Manual Electrical Diagrams
x1 Operator's Manual

Price excl. VAT on request, including truck loading.

Possibility of shipping throughout France as well as internationally.

More photos and details on request.

Technical description for information purposes only, without obligation on our part.
