CNC-Automatisierung CHIRON FZ 08K S Magnum SK

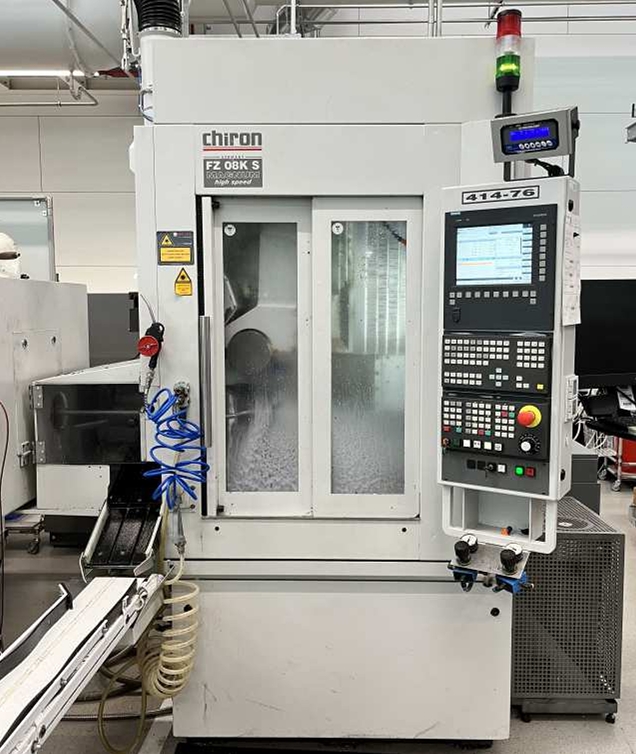

Vertical CNC Machining Center Chiron FZ 08K S Magnum SK with NC swivel head, rotary table package, bar loader, and removal device.

- Operating Hours: 30,682 h
- Last Spindle Replacement: 10/2021

Technical Data:

- Control System: Siemens 840D (PCU 20 / NCU 572.4)
- NC Swivel Head: Swivel Range -20° / +115°
- Motor Spindle: Water-cooled, 15,000 RPM
- Travel Paths: X 450mm / Y 270mm / Z 310mm
- Rapid Traverse (X/Y/Z): 75 m/min. / Acceleration X 1g / Y 1.5g / Z 2g
- Tool Slots: 40, HSK-A 40, Span-to-Span Time 2.6 sec. vertical

Additional Equipment:

- Preparation for Bar Processing
- Rotary Table Package: AWU 160 with D105mm (Positioning Axis)
- Collet Chuck: Hainbuch Spanntop D100
- Additional Device: 6th Side
- Handling and Removal Device for Finished Parts
- Bar Loader: IRCO SiMag 100.1-3000 (Round and Profile Material)
- Flushing Gun
- Machine Preparation for IKZ
- High Pressure: 70 bar (Vario Valve)
- Fixture Flushing
- Scraper Belt Chip Conveyor: Ejection Height 1050 mm
- Vacuum Rotation Filter: VRF 400 ltr. Manufacturer KNOLL
- MAHLE Double Switch Filter
- Control Cabinet Cooler
- Signal Light
- Tool Life Monitoring
- Tool Breakage Control: Single F500
- 3D Probe System: Renishaw TS27R
- Brankamp Marposs Collision Monitoring: CMS 100

Note on Machine Concept:

- Unmanned Complete Machining 24/7 of cubic parts. Material feeding via bar loader D100 / 3000 mm for round and profile material. Rotary table as a positioning axis and machining of the 4 surrounding sides via vertical milling spindle. Machining of the end face (5th side) horizontally with swivel head. Clamping the workpiece via vice, sawing the workpiece, and 180-degree rotation, machining the 6th side horizontally also with swivel

head. Handling and removal device into parts storage.

Note on Machine Condition:

- The machine was factory overhauled and technically updated by the manufacturer Chiron (CMS) in 2017.
