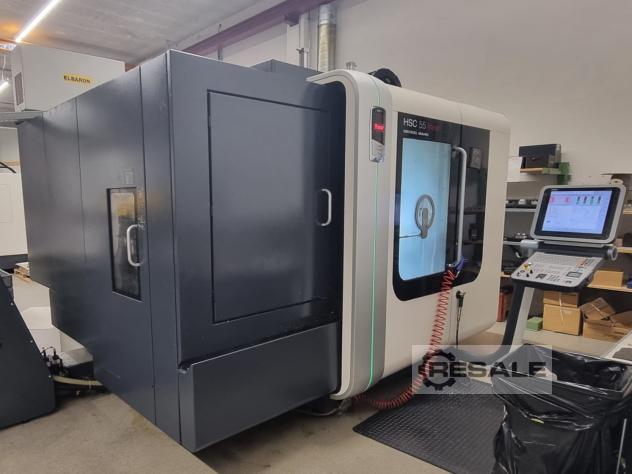

Vertikale CNC Bearbeitungszentren DECKEL MAHO HSC 55 linear + system 3R

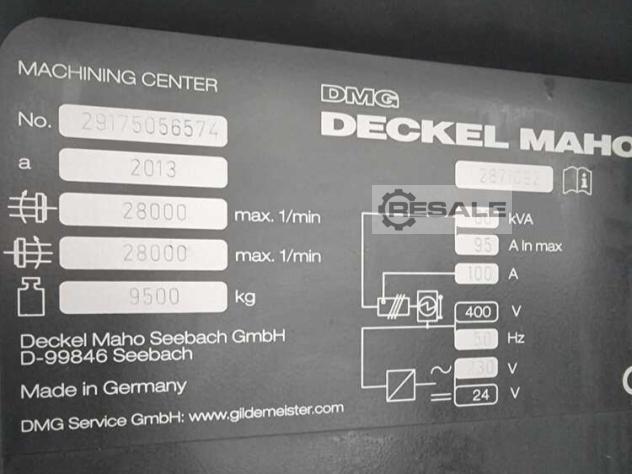

Year of construction: 2013

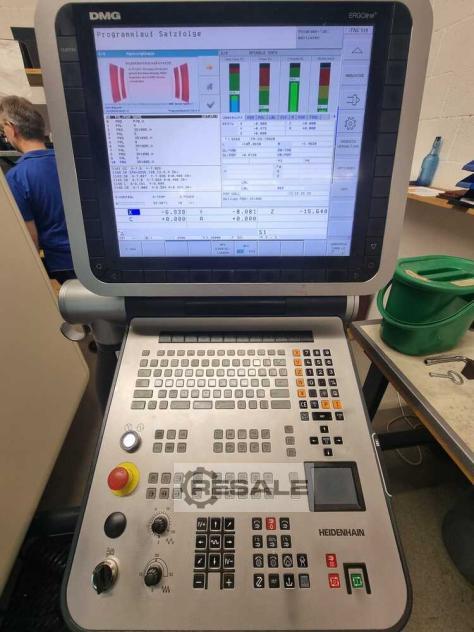

CNC controller: Heidenhain iTNC 530
Axes
X-axis travel mm: 450
Y-axis travel mm: 580
Z-axis travel mm: 400
C-axis degrees: 360º (0,0001)
A-axis degrees: +10 / -110º
Feed rates m/min: 80
Rapid traverse m/min: 80
Acceleration in the axes m/s2: 13

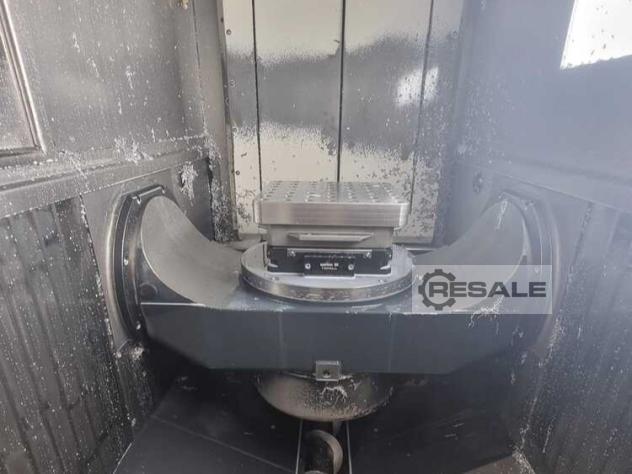

Milling/turning table nc:

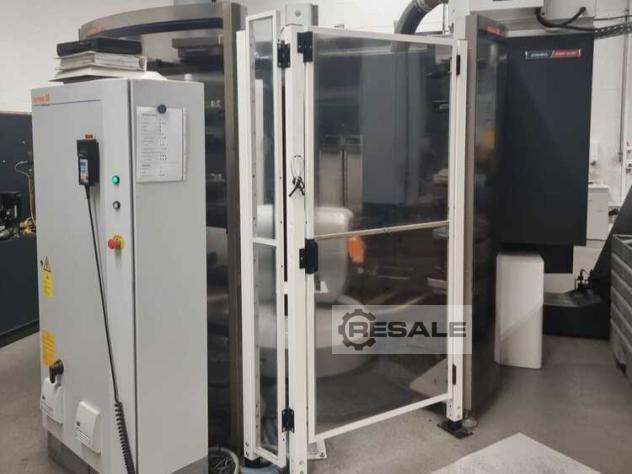

Number of pallets: System 3R (21 pallets type GPS 240, 30pallets type GPS 120 and 24 pallets type ITS50)
Table dimensions mm: baseplate for root pallet
Maximum workpiece size (D x H) mm: for pallet GPS 240 (275x275x200mm); for pallet GPS 120 (150x150x200mm) and for pallet ITS50 (ø70x200mm)
Max. workpiece weight kg: 150 (pallet + workpiece)

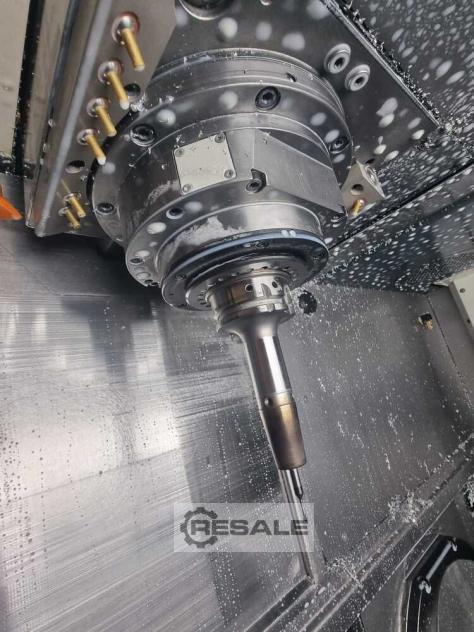

Spindle
Spindle speed rpm: 28000
Spindle drive power kW: 35/25 (40%ED/cont)
Cooling
Cooling through the Spindle Center bar: 40
Tank capacity: 600
Tool system

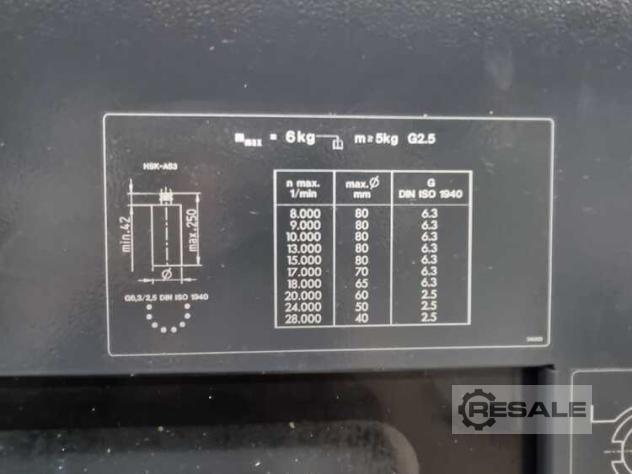

Tool holder: HSK-A 63

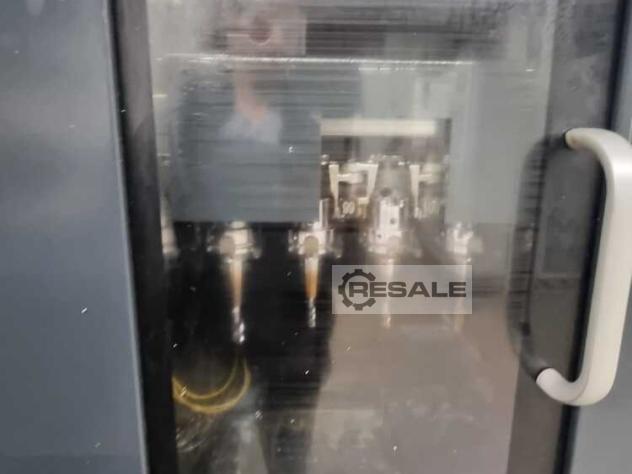

Tool magazine slots: 120
Tool changer: Double gripper
Equipment
Electronic Handwheel
Chip conveyor
Infrared probe
Internal cooling lubricant supply
Rotating inspection windows
Rinsing gun
blowing air through spindle center selectable via M-function
Laser tool measurement for measuring tool length and diameter
3D quickSET
Arrangement for external pallet management
Accuracy package
Internal coolant supply
Electrical cabinet active cooling unit
Spindle active cooling unit
Toolholders are not included
Tools are not included
Paper band filter
Machine running times
Under power: 62983
Spindle Working: 39945
Rated power kVA: 60
Basic machine dimensions / weight
Length mm: 5500
Width mm: 2650
Height mm: 2900
Weight kg: 9500 + system 3R

Verkäufer Angebot Nr. resale CNC0671
