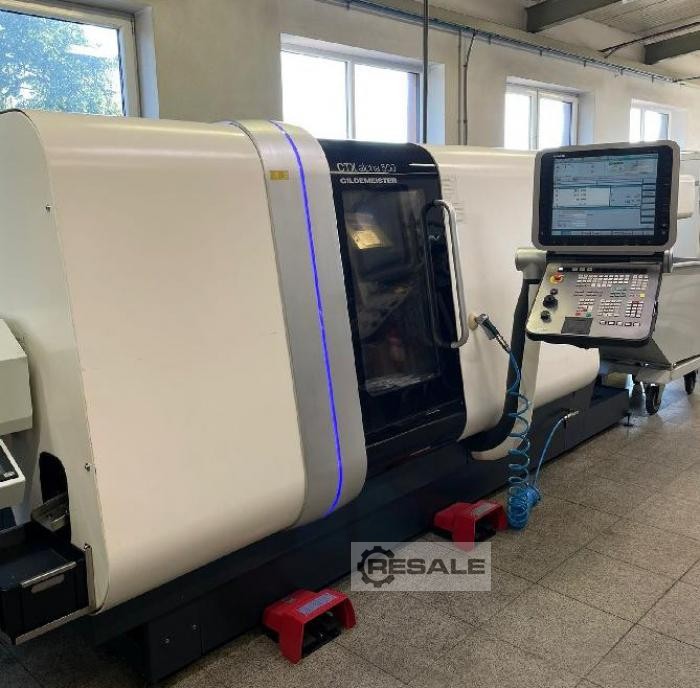

CNC Drehmaschinen DMG CTX Alpha 500

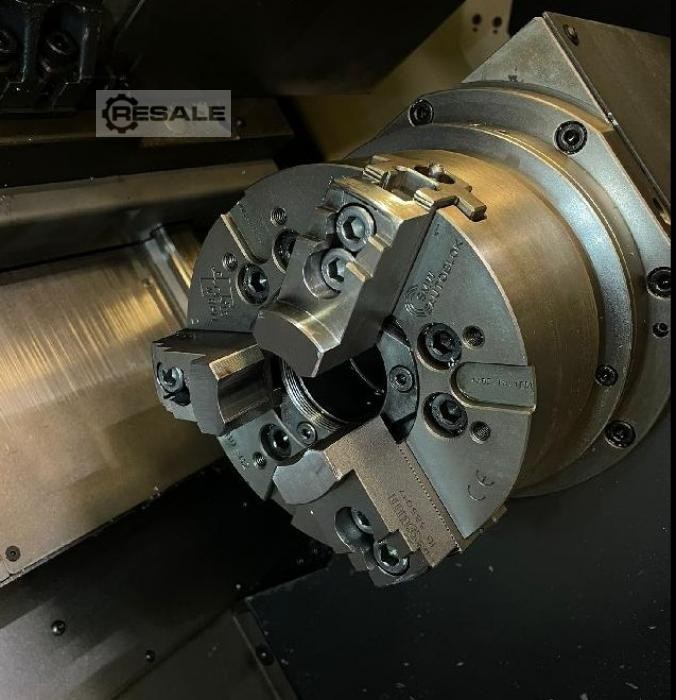

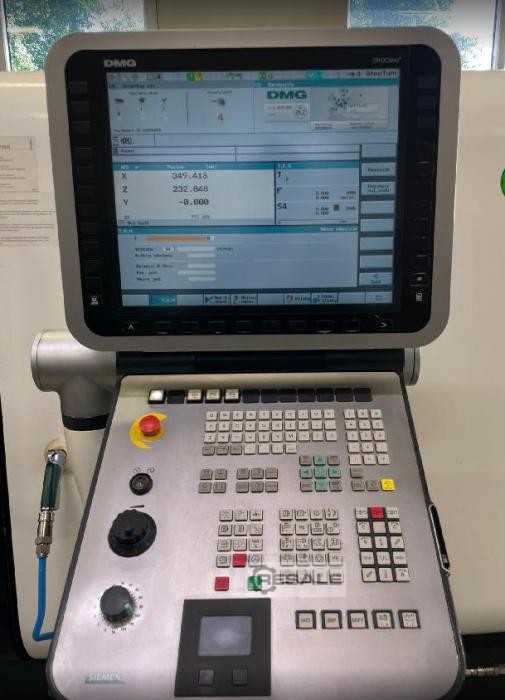

The machine is in good technical condition, after prior agreement possible to test. Control system – Siemens Including filtration. Bed inclination Bed material Number of guides 45 cast iron 3 (4 with Y-axis option) WORKING SPACE (V1- V4) Swing diameter over bed inch 19.69 Swing diameter over cross slide inch 11.42 Largest turning diameter inch 7.87 200 ч Distance between centers inch 30.71 Largest turning length inch 19.69 15.82 20 Max. weight of flying unsupported part of workpiece lb 35 Max. distance of center of gravity of flying unsupported part of workpiece inch 165 from spindle face Max. workpiece weight clamped between centers lb 100 X-axis travel length inches 7.48 Y-axis travel length (OР.) inches 3.14 (+/- 1.57) Z1-axis travel length inches Z3-axis travel length inches Spindle axis height above floor inches 20.67 21.65 39.26 (38.77+1.18) MAIN SPINDLE Spindle face (flat face) type FL 140h5 Chuck (diameter) inches 6.69 (op. 8.26)Rod diameter inches 2.00787408 Spindle hole diameter inches 2.87401584 Guide bushing diameter inches 2.04724416 Front bearing inner diameter inches 3.937008 Spindle bearing lubrication type grease Power, max. 100/40% load ED pcs 20.82/36.20 Speed ​​range, 100% load ED rpm 6000 Speed ​​range, 40% load ED rpm 6000 Rated speed rpm 1500 Torque, max. 100/40% load ED ftlb 93.72/125.46 Voltage type, number of ranges AC/1 Motor type ISM52
Verkäufer Angebot Nr. resale 31256
