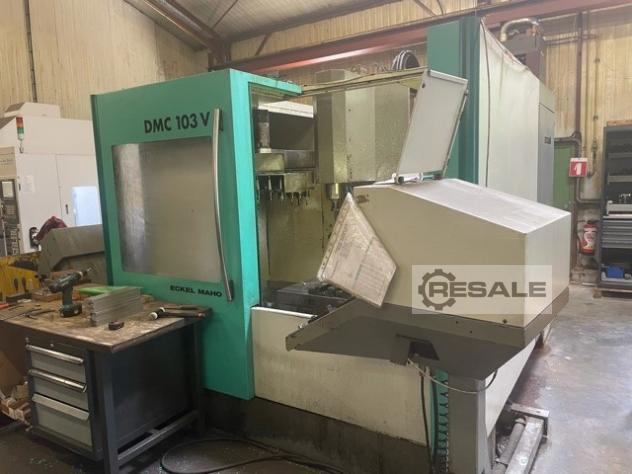

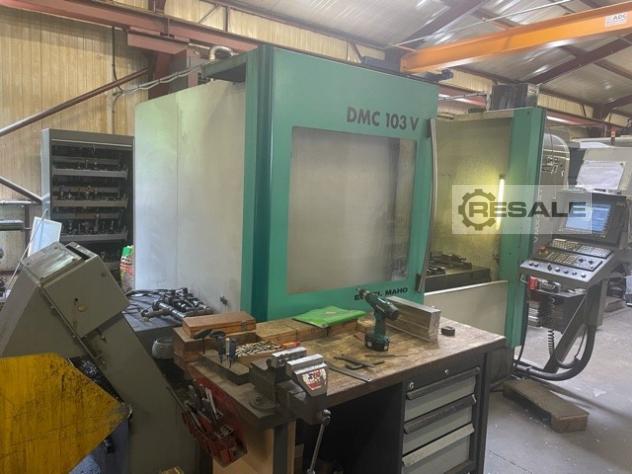

CNC Bearbeitungszentren DMG DECKEL MAHO DMC 103 V

x-Weg:1000 mm

y-Weg:600 mm

z-Weg:600 mm

Machine-Details
Stock-No. 1105-03985
Type of machine Machining Center - Vertical
Make DECKEL-MAHO (DMG)
Type DMC 103V
Year of manufacture 1998
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Germany
Delivery time immediately
Freight basis EX WORK

Technical details
x-travel 1000 mm
y-travel 600 mm
z-travel 600 mm
CNC-control Siemens 840D ShopMill
table-size 1200 x 600 mm
max. table load 800 kg
throat 640 mm
spindle taper ISO 40
feed stepless 1-30.000 mm/min
spindle turning speed range 0-8.000 1/min
drive capacity - spindle motor 13 kW

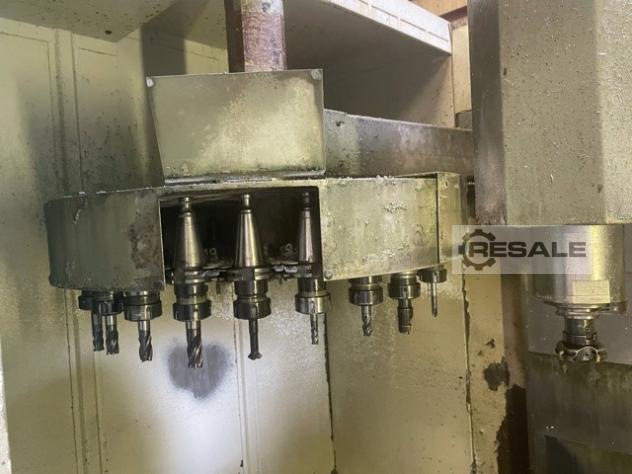

tool change unit 24 Pos.
voltage 400 V
total power requirement 35 kVA
Additional information

- control Siemens 840 D
- operating hours 29710 h
- coolant equipment TROUGT THE SPINEL 20 BARS CHIPCONVOYER
Verkäufer Angebot Nr. resale 163375257
