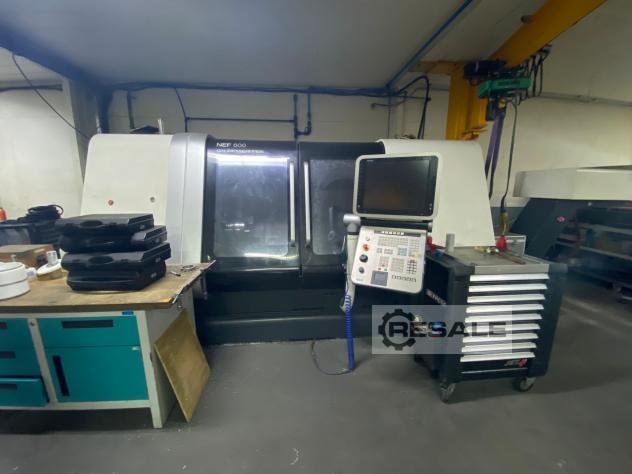

CNC Drehzentren DMG MORI NEF 600 V3

Drehdurchmesser:600 mm

Drehlänge:1200 mm

Machine-Details
Stock-No. 1105-04018
Type of machine CNC Lathe - Inclined Bed Type
Make GILDEMEISTER DMG
Type NEF 600 V3
Year of manufacture 2011
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin Germany
Delivery time immediately
Freight basis EX WORK

Technical details
turning diameter 600 mm
turning length 1250 mm

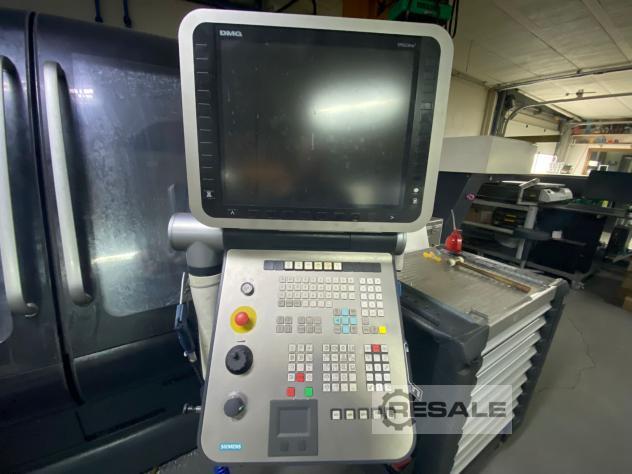

control SIEMENS 840 D
greates pass round over bed 600 mm
centre height 350 mm
spindle bore 92 mm
turning speed range 3500 U/min
rapid travel - longitudinal/face 20 m/min
face stroke 400 mm
tailstock quill diameter 100 mm
tailstock quill stroke 1150 mm
tailstock taper MT 5
turret (x-stations) 12
turning diameter over slide 410 mm
Additional information
NEF 600 V3 FROM 2011

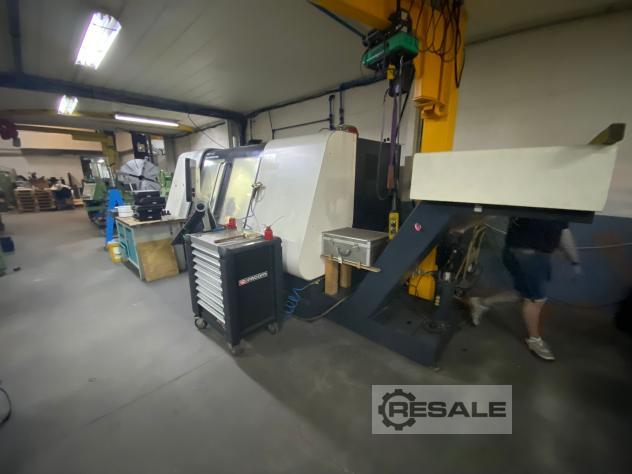

acc.: hydr. 3-jaw chuck 380 mm, chip conveyor, coolant
3 AXIS WITH LIVE TOOLS 3 AND 10 FIXED TOOLS
Verkäufer Angebot Nr. resale 164429145
