CNC-Drehmaschine DOOSAN LYNX 2100LSYA

DOOSAN LYNX2100LSYA (installed new in 2021)

Model: LYNX 2100LSYA

Power Connection: AC 380V, 3-phase, PE, 50/60 Hz

Rated Power: 37.43 kVA

Interruption Capacity: 5 kA

Full Load Current: 56.87 A

Short-Circuit Capacity: 10 kA

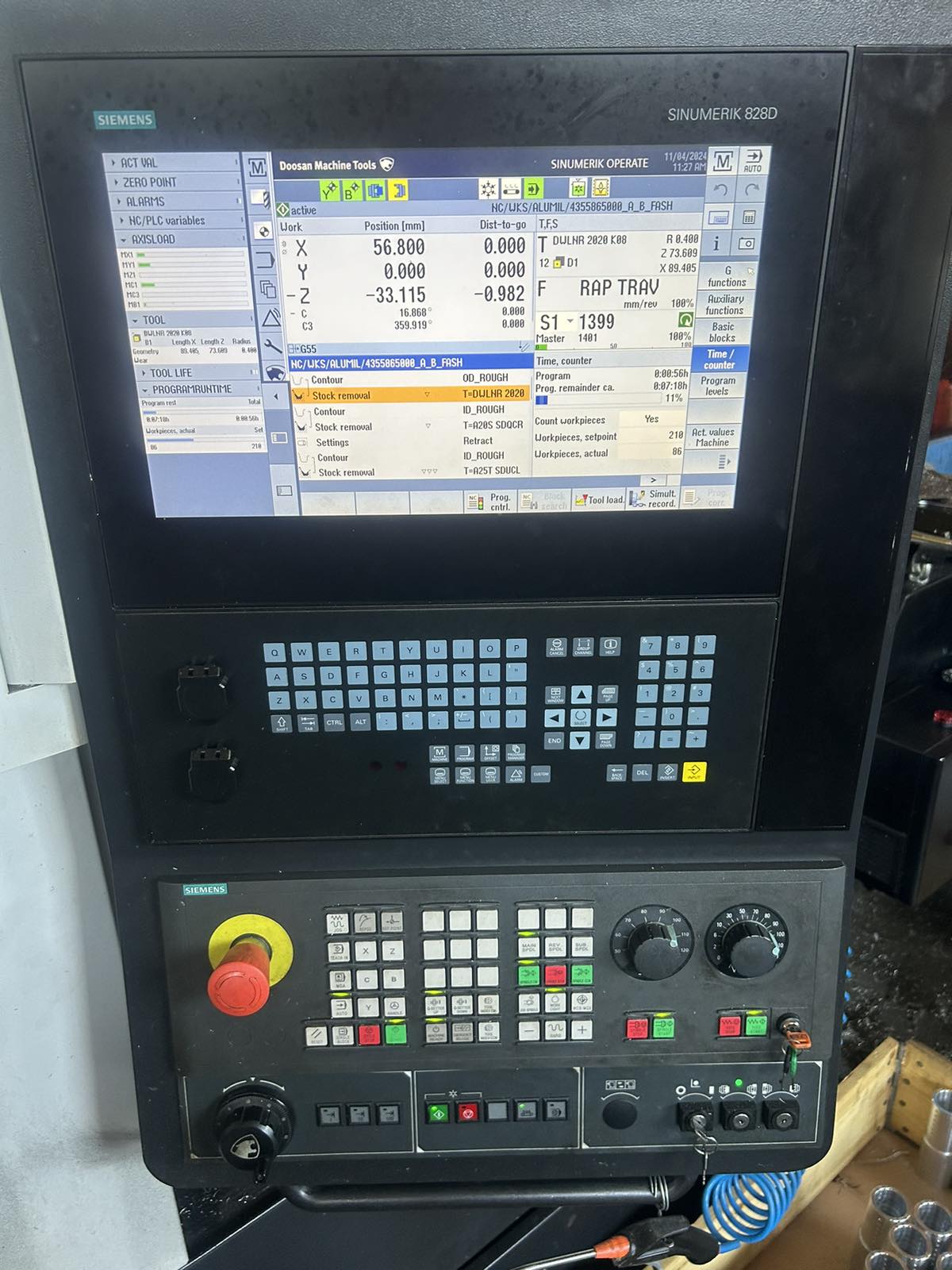

Control System Output: L220SYH840A05

Weight: 4150 kg

Manufacturing Date: November 2020 (2020.11)

Machine has the following list toolholders ;

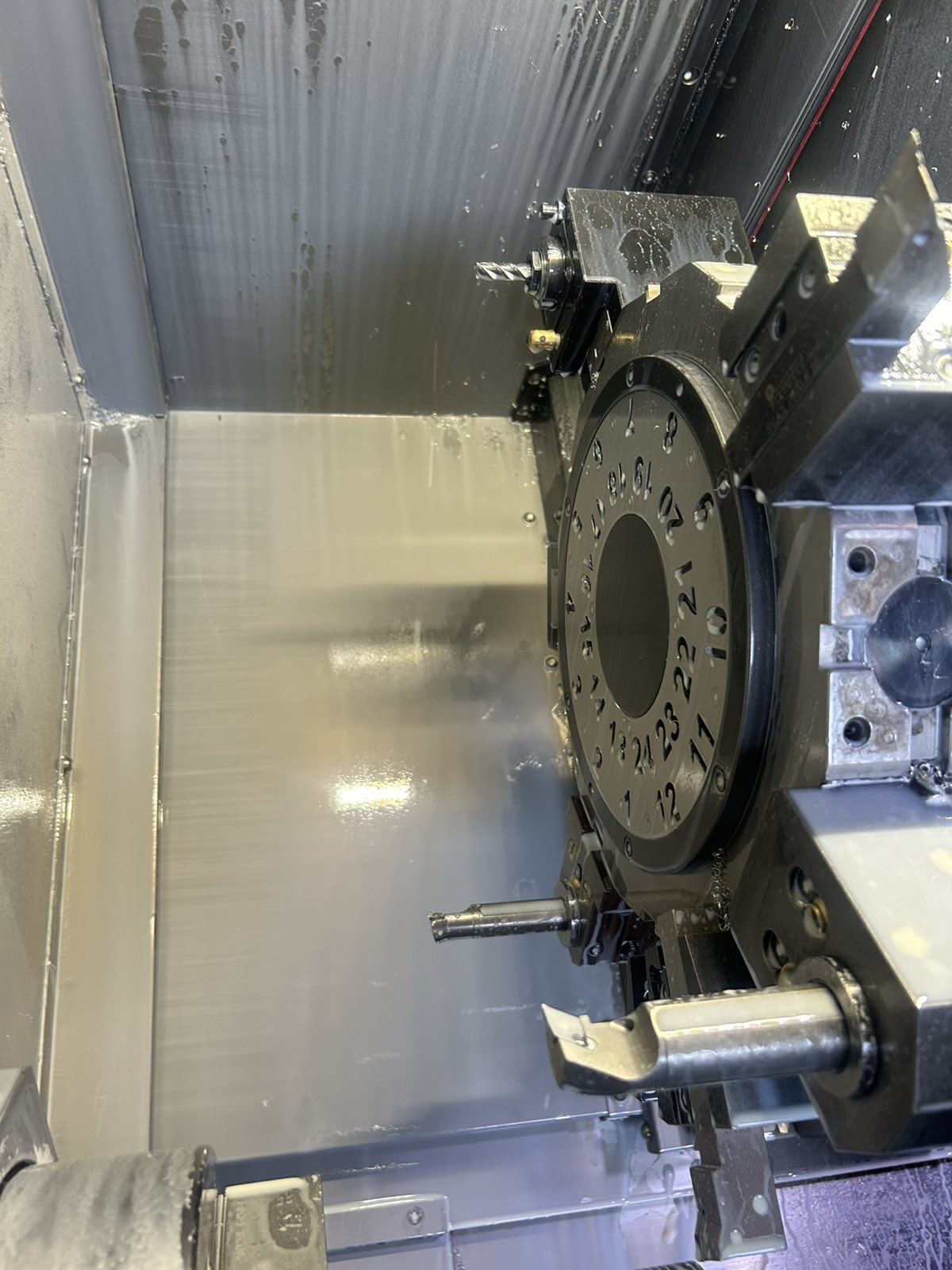

Turret Type (Mechanism/Station): Servo/24ST

Holder Mounting Type Tool Size (Turning/Boring): BMT-45P 20/32 mm

Tooling Parts Detail

A. Turret Head/Tool Table

- - Quantity: 1 ea

B. Turning Holder

- OD Tool Holder (Right & Left) _MAIN

- Quantity: 1st

- Face Tool Holder (Right & Left) _MAIN

- Quantity: 1st

- Double OD Tool Holder (Right & Left) _MAIN/SUB

- Quantity: 1st

- Double OD Tool Holder (Right & Left) _MAIN

- Quantity: 1st

- Double OD Tool Holder (Right & Left) _MAIN

- Quantity: 1st

- Double OD Tool Holder (Right & Left) _SUB

- Quantity: 1st

- Double OD Tool Holder (Right & Left) _SUB

- Quantity: 1st

C. Boring Holder

- ID Tool Holder _MAIN

- Quantity: 1st
- Quantity: 1st

- Double ID Tool Holder _SUB

- Quantity: 1st
- Quantity: 1st

- Triple ID Tool Holder

- Quantity: 1st

- U-Drill Cap _MAIN

- Quantity: 1 ea

- U-Drill Cap _SUB

- Quantity: 1 ea

D. Milling Tool Unit

- Straight (Short)

- Quantity: 2st

- Angular

- Quantity: 1st

- Angular (Offset)

- Quantity: 1st

E. Tool Sleeves

- Boring Sleeves (Main)

- Quantity: 1st

- Boring Sleeves (Sub)

- Quantity: 1st

- Drill Sockets

- Quantity: 1st

- U-Drill Sleeves

- Quantity: 1st

- Milling Adapters

- Quantity: 1st

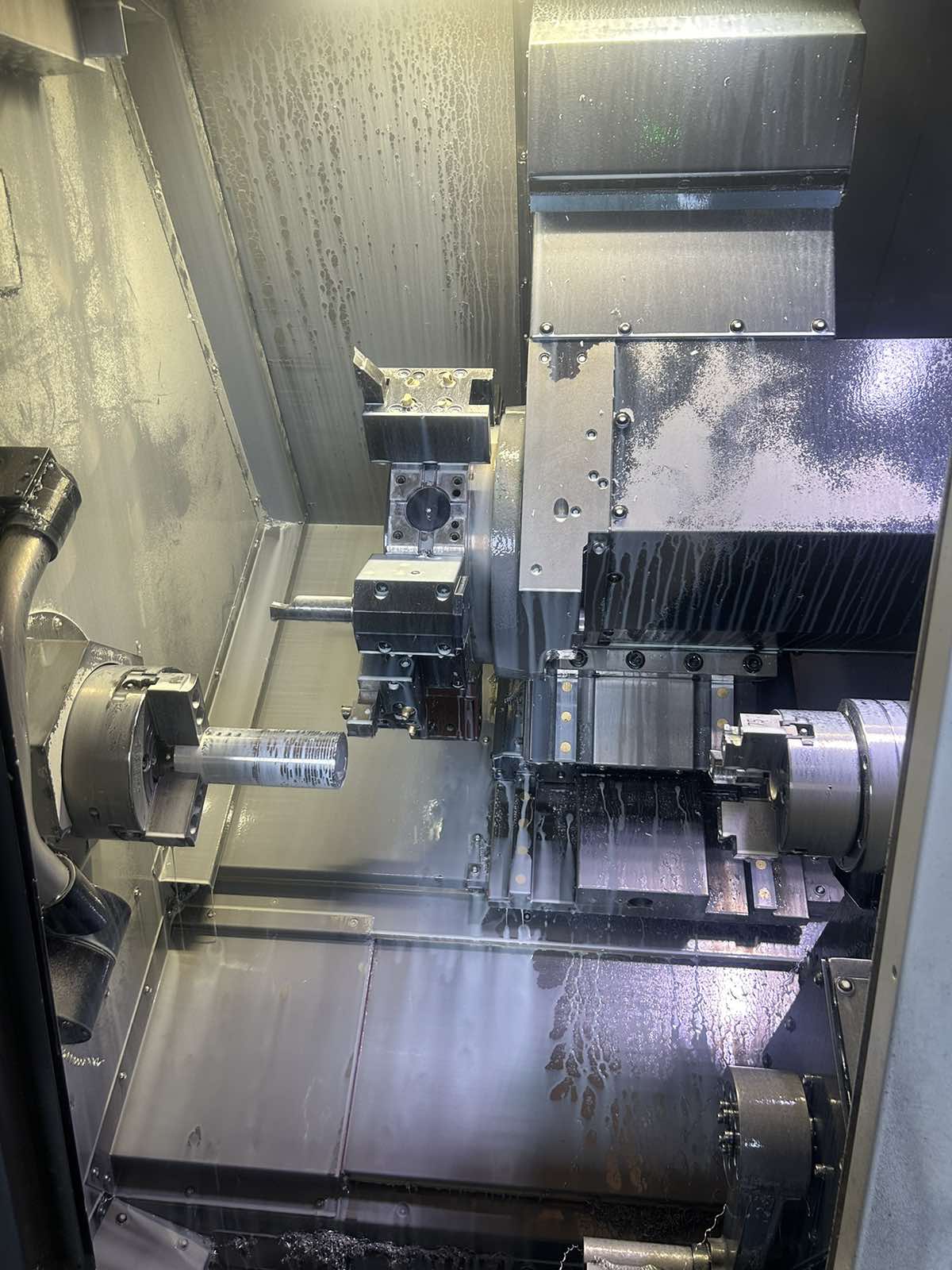

It also has a ready parts conveyor, a Sarigol (Turkish made) chip conveyor, chucks of the main spindle has hard jaws and that of sub spindle has a set of soft jaws. Machine is also equiped with an extra module from Siemens for in process tool measuring cycles for tool breakage detection.

Spindle hours 11.000hrs
