Colors: 8
Gearless: No
Fast Sleeve change: No
4 motor cnc per printing deck: Yes
Computer supervision:Yes
Web width:1320
Print width:1300
Min print repeat: 380
Max print repeat:1100
Mech speed: 350m/min
working speed: up to 300m/min

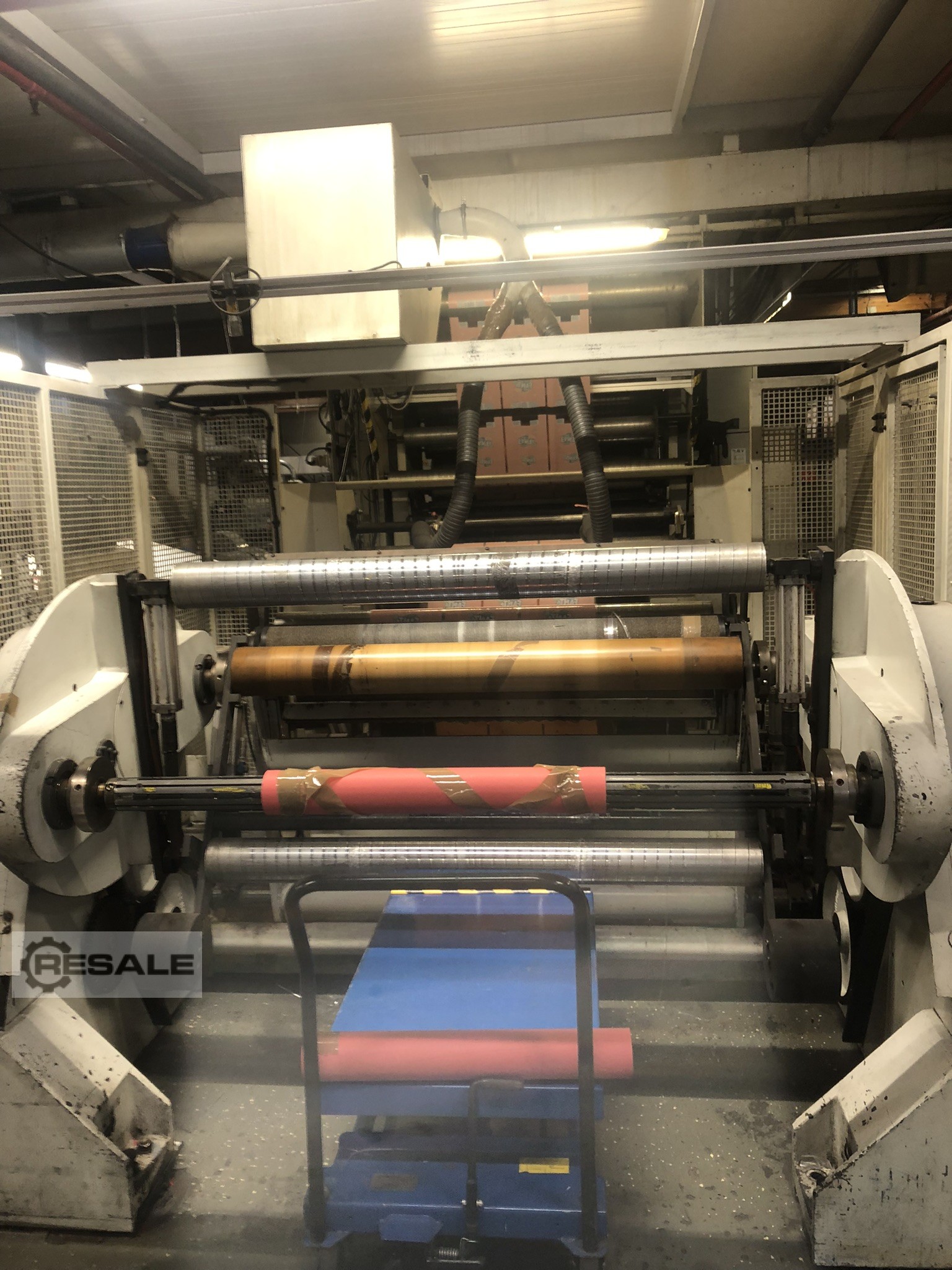

Unwinding & winding: Turret FLYING SPLICE
Max reel diameter 1000
Drying: 2 zones , 4 fans 2 gas burners
Videocamera: Yes
Corona threatment:NO
Web guides: FIFE
Viscocity control Yes
Wash system : yes, F&K
Ceramic anilox + closed chambered doctor blade
1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm , 2x 320 L/cm , 3x
400 L/cm
200 sleeves repeat between 390 mm and 1090 mm ( 8 for each following
repeat x 390 , 400, 410 , 420 , 430 , 450 , 480 , 510 , 530 , 540 ,
550, 630 , 660 , 670, 740 , 780 , 800 , 850 , 880 , 930 , 990 , 1030,
1050 , 1090 + 8 twinlock 740 mm + 8 twinlock 1030
Mandrels for sleeve s 6 x360 , 6x 400 , 6x 420 , 8 x 460 , 8x 530 , 6x
560 , 12 x 620 , 8x 780 , 8x 850 , 15 x 990 mm. Printing cylinders 8x
380 , 8x 390 , 12x 400 , 8x410 , 8x 450 , 6x 460 , 7x 470 , 4x 490 ,
12x 500 , 8x 510 , 12x 530 , 8x 540 twinlock , 6x 560 , 8x 570 , 8x
580 , 8x 590 , 12x620 , 9x 640 , 12x 660 , 6x 670 , 6x 730 ,
Overall sizes: L=17m, W=5m, H=6m
Diameter of central drum: 2280mm
