Fischer + Krecke Flexpress 16S-10k

Reference ID: PP-55241
Category: CI Flexo Printer
Manufacturer: Fischer & Krecke
Model: Flexpress 16S-10k
Year Built: 2005
Number of Colors: 10
Working Hours: –
Max. Mechanical Speed: 400 m/min
Max. Printing Width: 1050 mm
Condition: Good
Location: Europe
Availability: Immediately
________________________________________
Machine Description

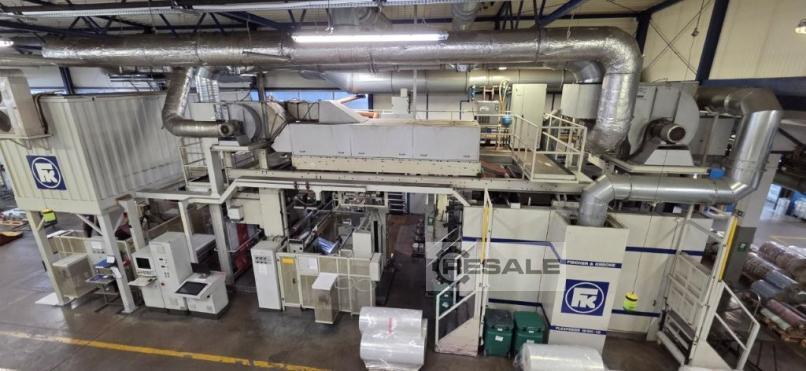

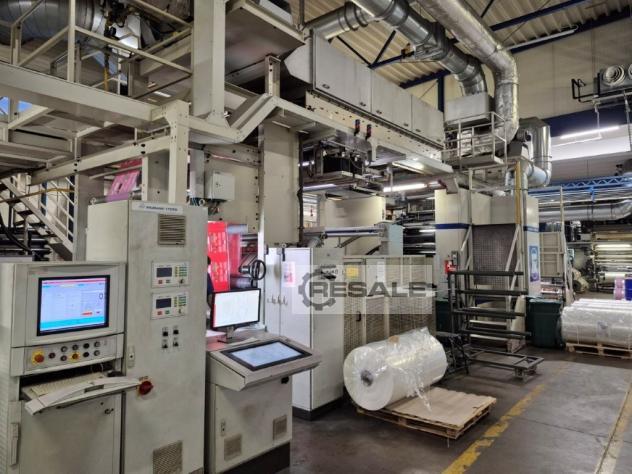

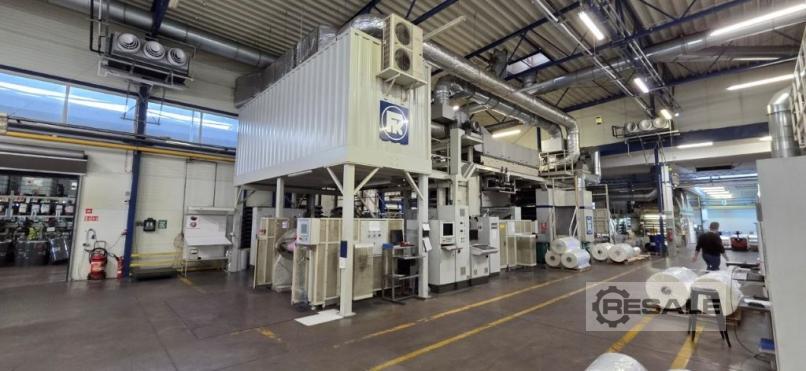

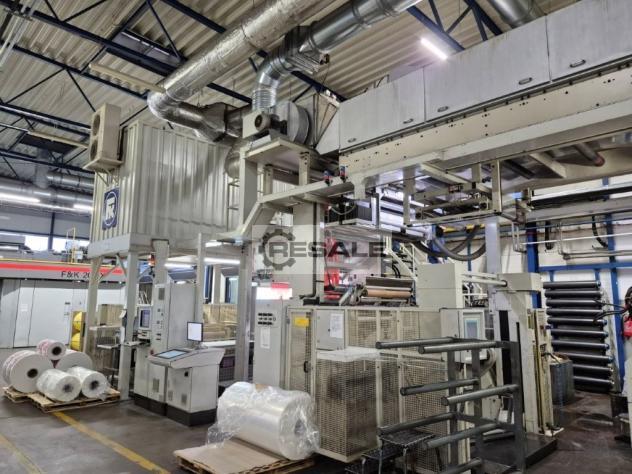

CI Flexo Printing Press
• Geared/Gearless: Gearless
• Substrates: PE, PP, OPP, PET, Paper
• Printing Width: 1050 mm
• Material Width: 1100 mm
• Print Repeat: 350 mm – 750 mm
• Mechanical Speed: Up to 400 m/min
________________________________________
Unwinder
• Turret unwinder – non-stop
• Max. Roll Diameter: 1000 mm
• Expanding Shafts: 3”, 5”

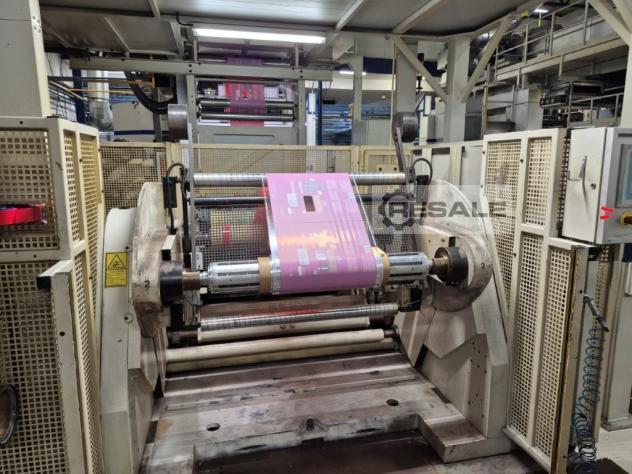

Winder
• Double unwinding shaft with dancing rollers
• Max. Roll Diameter: 1000 mm
• Expanding Shafts: 3”, 5”
________________________________________
Additional Features
• 10 pneumatic pumps for the inking system
• Natural gas drying system
________________________________________
Accessories Included
• Motorized longitudinal register
• Doctor blade system
• Anilox cylinders (list attached)
• Cliché holder cylinders (list attached)
• BST video system
• Web guides (before CI and before winder)
• Dancing roller system
________________________________________
Major Refurbishments – 2022

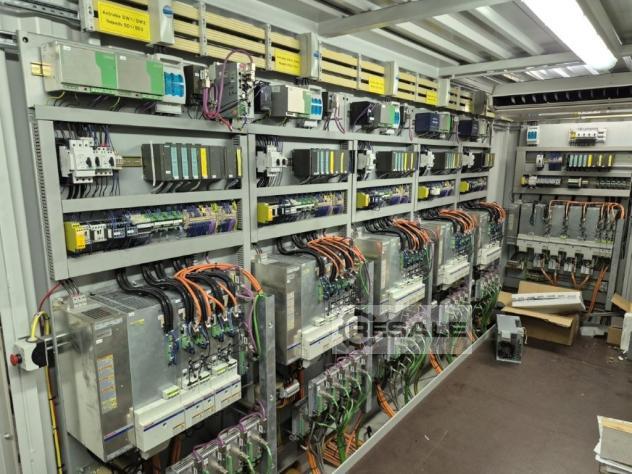

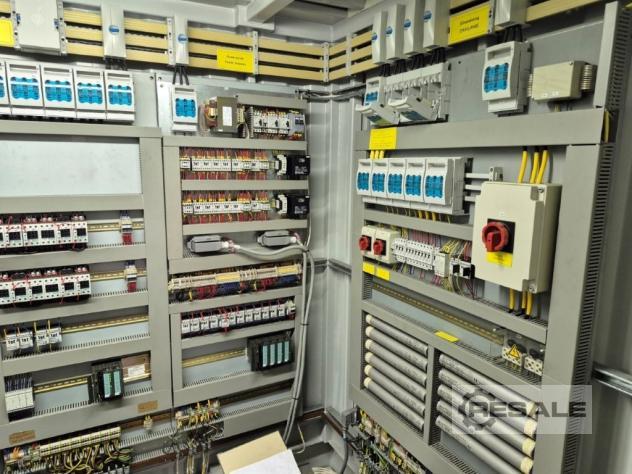

• Main OCS computer replaced
• Valve island for CI replaced
• Valve island for winder & rewinder replaced
• Spare Rexroth motors available (printing shaft & anilox roller)
• Two carbon printing shafts included
________________________________________
New System – 2023
• BST IPQ print control / view system installed
