Mischsystem 60.000 lt. 3 mt.breit 7,8 mt.hoch GERMANPLAST 60 m3 crossed mixing system

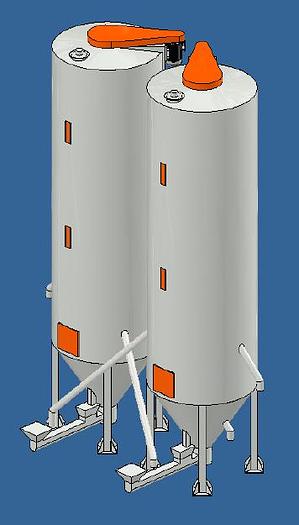

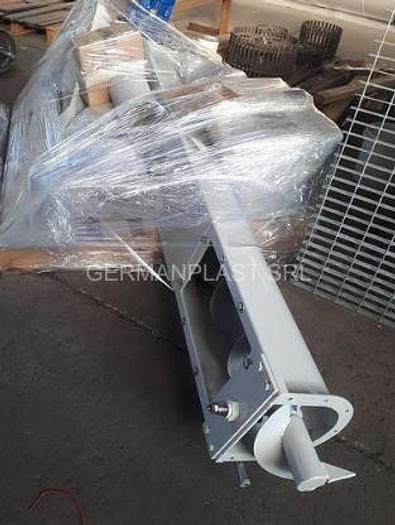

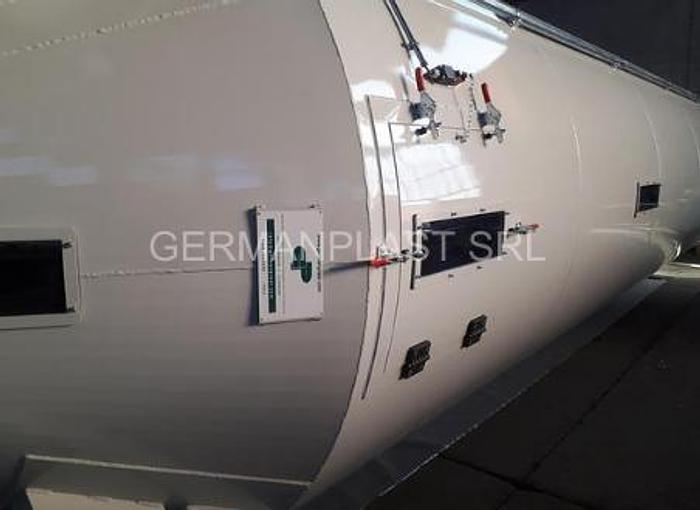

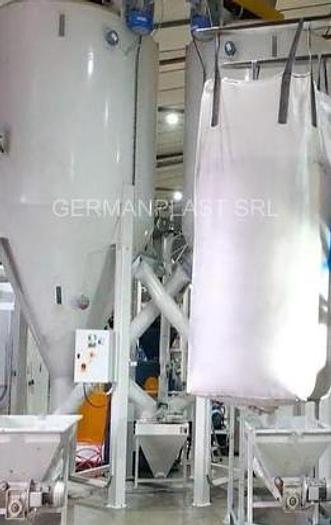

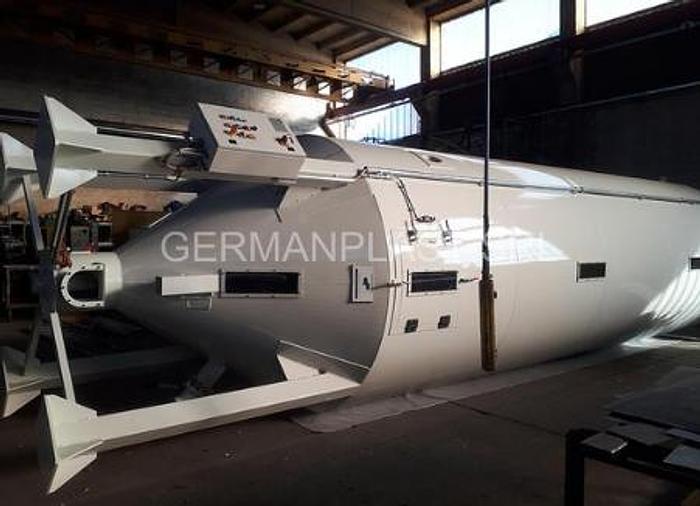

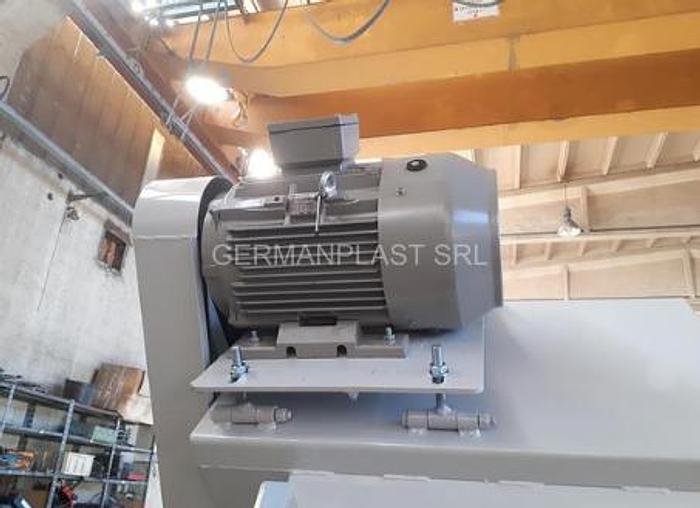

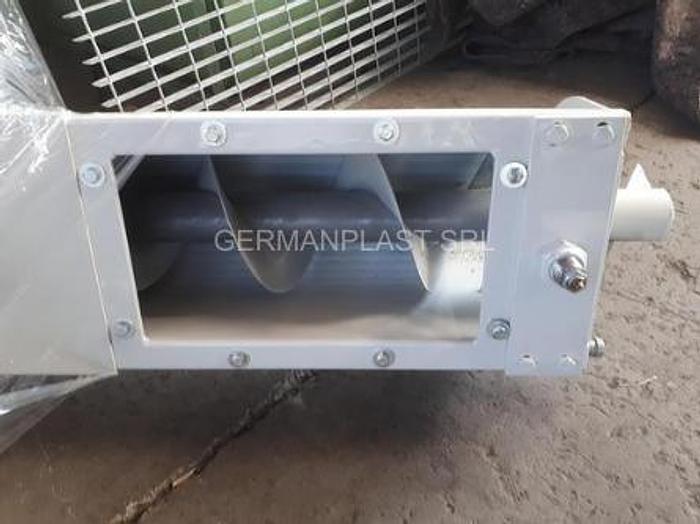

CROSSED MIXING SYSTEM FOR PLASTIC MATERIALS, The system includes n.2 x 30.000 lt. (or bespoke) vertical mixers which fill each other through the endless screw conveyor., for each mixer :, total height approx 7.750 mm including transmission group, max diam. 3.000 mm.(exceptional transport), constructed in painted electro-welded carbon steel., inner auger diam.350 mm., lower hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600×500, pulley and belt transmission, protected by carters, inspection doors with safety limits, cleaning hinged door with on bottom of cone for complete discharging, with safety opening, bottom discharging pipe on the other mixershopper with pneumatic valves, side discharging pipe to big bag with valve mm.at 2.700 mm from ground with pneumatic valves, electric min/max level indicator, paddle type, N.1 loading hopper with conveying screw to one of the 2 mixers, discharging pipe with valve to central collection hopper, electric motor 22 kw, dust sleeve on top, complete with control panels for each mixer, electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V, CE compliance, drawings and instructions manual in English., ---------------------------------------------------------------------- -----------------, COLLECTION HOPPER, from both of the mixers, size 600 x 600 mm., screw Ø 150 mm., 1,5 driven lifting screw, 5.500 mm long, bearings on ends, installed power - used power in work: about 60-65% : 44, capacity: 60.000 lt.
Verkäufer Angebot Nr. resale GE500.303 X
