GERMANPLAST 40 m3 crossed mixing system

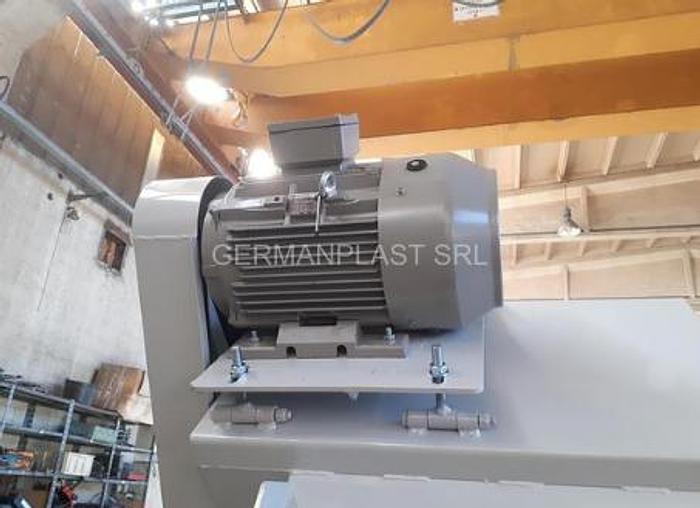

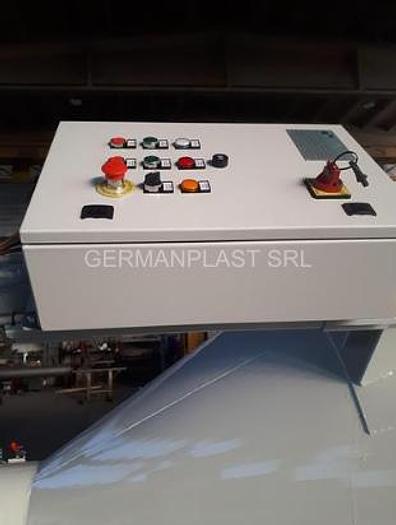

CROSSED MIXING SYSTEM FOR PLASTIC MATERIALS, The system includes n.2 x 20.000 lt. vertical mixers which fill each other through the endless screw conveyor. (ask for different capacities), for each mixer :, total height approx 6.950 mm including transmission group, max diam. 2.380 mm.(standard transport), constructed in painted electro-welded carbon steel., inner auger diam.350 mm., lower hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600×500, pulley and belt transmission, protected by carters (possible gearbox, instead), inspection doors with safety limits, cleaning hinged door with on bottom of cone for complete discharging, with safety opening, bottom discharging pipe on the other mixershopper with pneumatic valves, side discharging pipe to big bag with valve mm.at 2.700 mm from ground with pneumatic valves, electric min/max level indicator, paddle type, N.1 loading hopper with horizontal conveying screw to one of the 2 mixers (can add another if needed), complete with bag supporting structure, discharging pipe with valve to central collection hopper, electric motor 15 kw, dust sleeve on top, complete with 1 control panel for each mixer., The system may include, if needed, deviations to buffers, PLC for automations, etc., electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V, CE compliance, drawings and instructions manual, Possible addition of weighing system with label printer for each structure, installed power - used power in work: about 60-65% : 15, capacity: 40.000 lt
