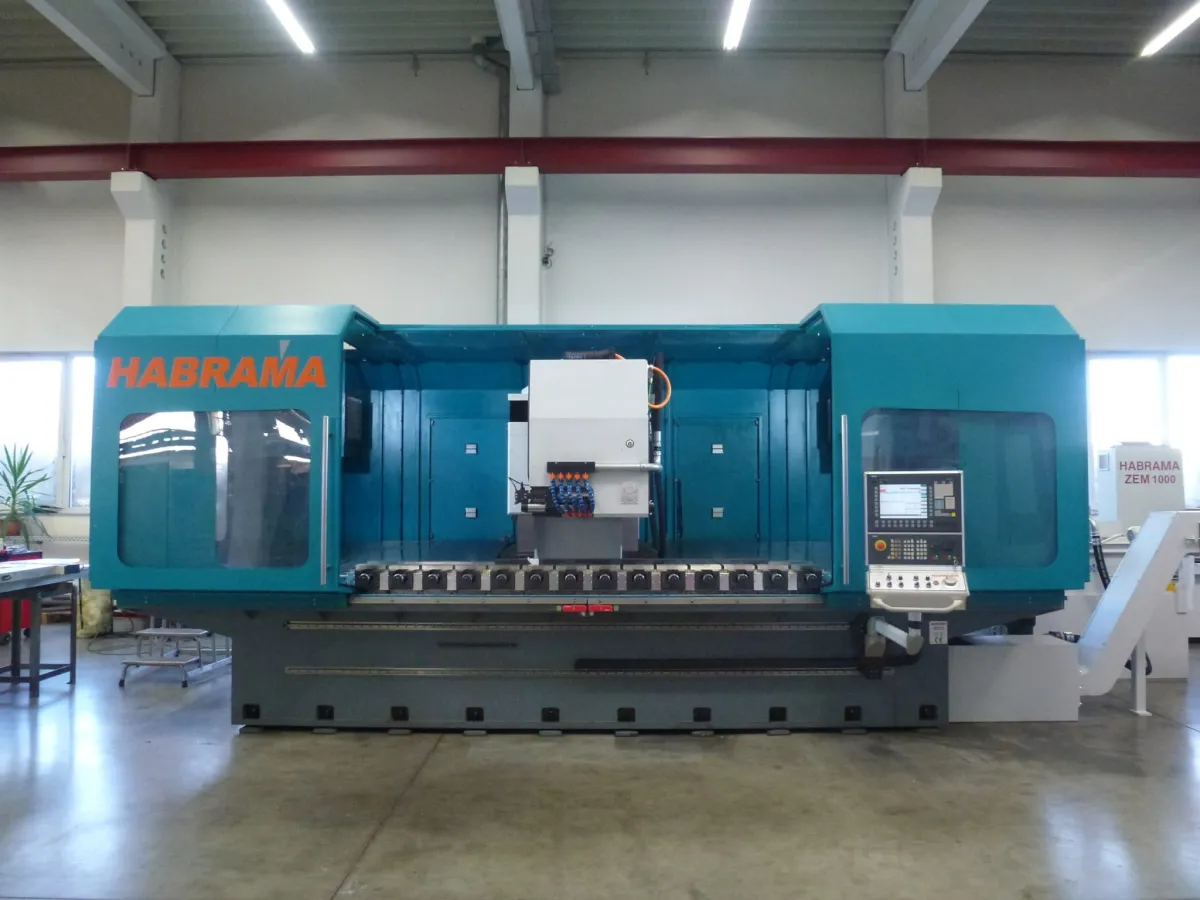

Habrama PPFM 3200 Fräsmaschine

Manufacturer: Habrama

Model: PPFM 3200

Year of Manufacture: 2008

Overhauled: 2025 (complete overhaul)

Working Ranges

- X-Axis (longitudinal): 3200 mm
- Y-Axis (cross): 500 mm
- Z-Axis (vertical): 410 mm
- C-Axis: +30 degrees / -30 degrees

Machine Table

- Table Size: 390 x 4750 mm
- Maximum Load: 6000 kg
- T-Slots: 4 pieces
- T-Slot Spacing: 90 mm
- T-Slot Width: 18 H7 mm

Axis Speeds and Accuracy

- X-Axis Speed: 21 m/min, direct positioning accuracy +/- 0.002 mm
- Y-Axis Speed: 10 m/min, direct positioning accuracy +/- 0.002 mm
- Z-Axis Speed: 6 m/min, direct positioning accuracy +/- 0.002 mm
- C-Axis Speed: 2 rpm, direct positioning accuracy +/- 0.003 degrees

Milling Head

- Drive Power: 45 kW (S6 at 40% ED)
- Spindle Speed: 0 to 360 rpm
- Maximum Cutter Diameter: 300 mm
- Minimum Cutter Diameter: 125 mm + 2x cutting depth
- Milling Capacity: up to Module 36
- Spindle Interface: SK 45 DIN 69871
- Arbor Diameter: 40 to 60 mm
- Swivelling counter bearing for milling arbor

Machine and Control

- CNC Control: Siemens 840D sl
- Drives: Siemens
- Total Connected Load: 80 kVA
- Machine Weight: approx. 22,000 kg
- Coolant System: self-cleaning filter unit approx. 2000 litres
