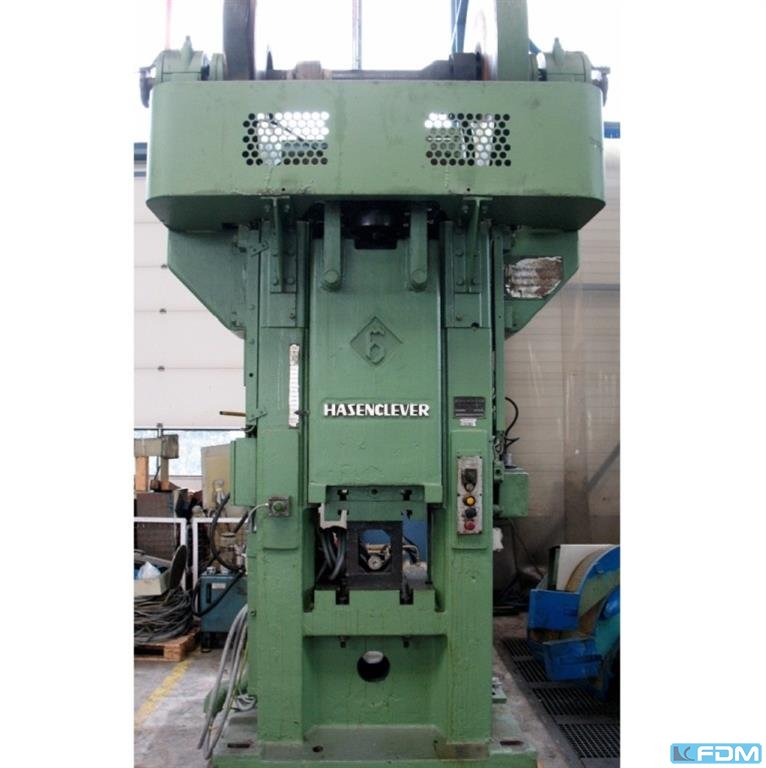

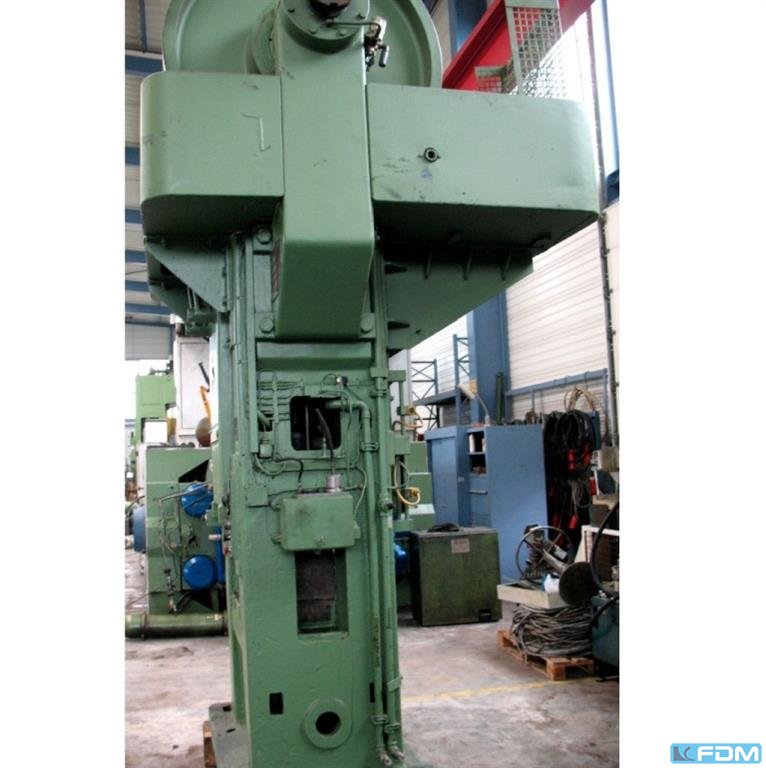

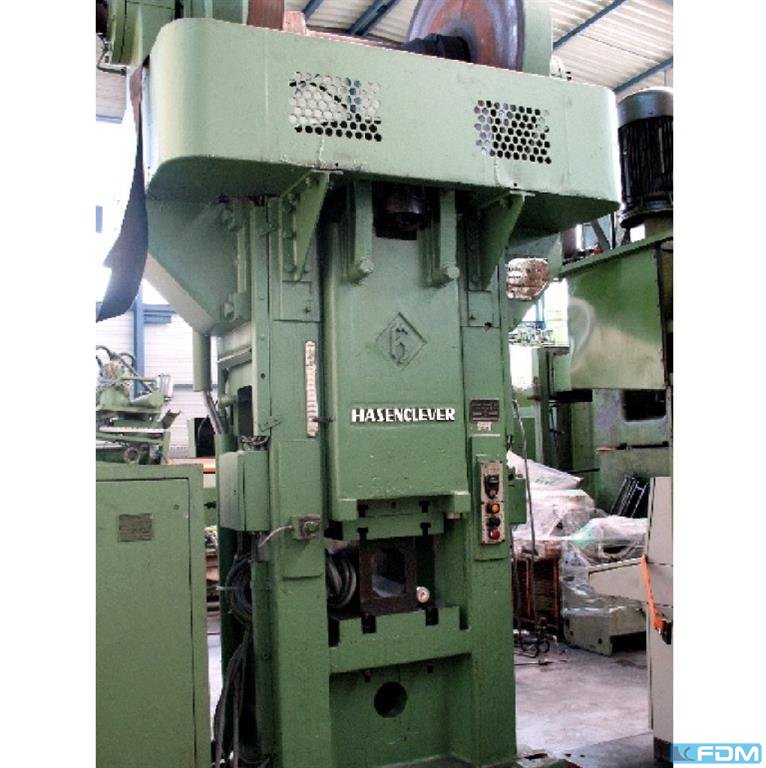

Gebrauchte HASENCLEVER FPPN 180/540/300/750, 315 t. Nenndruck: 315 t Hub: 300 mm Hubzahl: 36 /min Ständerweite: 540 mm Entfernung Tisch/Stößel, gr. Hub oben, Verst. oben: 750 mm Tischfläche: 530 x 630 mm Prellschlagkraft: 630 t Zulässige Dauerbelastung: 500 t Stößelfläche: 450 x 560 mm Spindeldurchmesser: 180 mm Antriebsleistung: 18,0 kW Gewicht: 13,0 t Raumbedarf (BxTxH): 2,5 x 2,0 x 4,0 m
Verkäufer: Evelin of America Corporation
Gebrauchte SMS Hasenclever 28 / 31.5 MN McKechinstrang”. Equipment Description Used Indirect Extrusion Press • Brand / Model: SMS Hasenclever 28 / 31.5 MN McKechinstrang” • Type: Horizontal indirect extrusion system for non-ferrous billets • Drive: Mechanical main unit with hydraulic auxiliaries • Country of Origin: Germany • Current Status: Dismantled and available for dispatch • Serial No. / Year of Manufacture: [To be confirmed] 2. Key Technical Specifications Parameter Value Main Piston Force 25.07 MN Total Press Force with Coupling 31.23 MN Max Stroke 3,070 mm Working Stroke 2,825 mm Ram Speed at 28 MN 0–64 mm/sec Ram Speed at 31.5 MN 0–57 mm/sec Billet Diameter Range Ø 230–355 mm Billet Length (cold) 320–1,320 mm Receiver Heating System Resistance; max 63 kW / 375?°C Shear Force 0.64 MN Profile Ejector Force 0.31 MN Actuation Differe ...
