Schleifdurchmesser:318 mm
Schleiflänge:648 mm

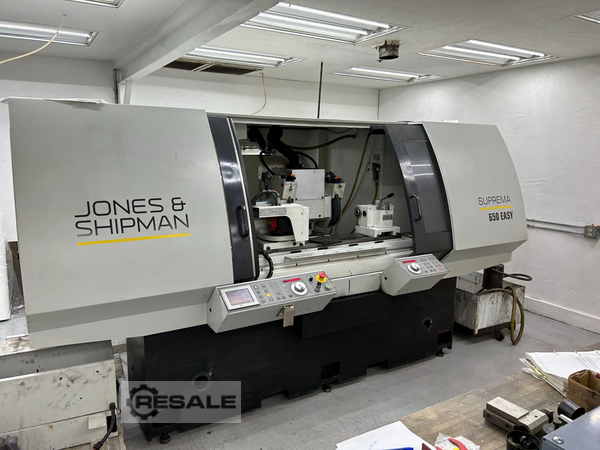

JONES & SHIPMAN SUPREMA EASY 650 UNIVERSAL I.D./O.D. CYLINDRICAL
GRINDER (2010)
Table:
Swing:... 12.5"
Distance Between Centers: 25.5"
Table Travel 29.5"
Max. Traverse Speed . 472" IPM
HPG Increments .. 0.00005", 0.0005", or 0.005"
Table Swivel 18 Deg. CCW, 16 Deg. CW
Wheelhead:
Total Infeed Travel:. 10.236""
Max. Speed .. 236" IPM
Minimum Programmable Increment .. 0.00005"
HPG Increments .. 0.00005", 0.0005", or 0.005"
Swivel Range 190 Degrees CW
45 Deg. CCW
External Grinding Wheels:
Grinding Wheel Size, L.H. Standard:.. 14" x 2"W x 5"B
R.H Standard: .. 12" x 1"W x 5"B
Spindle Speeds (3):.. 1773, 2069 & 2400 RPM
Motor Power: 5.5 H.P.
Headstock:
Swivel:.. 15 Degrees CW
90 Deg. CCW
Speed, Infinitely Variable:.. 30 to 450 RPM
Centers, Standard/Reduced ... #5 MT/#3 MT
Approximate Weight: . 11,000 Lbs.
Equipped With
Internal grinding wheel attachment (17,000 RPM, WILL CONFIRM)
"GE Fanuc Quickpanel" Microprocessor Control - Touch Control Panel
Table and wheelhead driven by AC digital servo motors,
preloaded ballscrews & rotary encoders.
is from a unique, operator compatible, touch key panel,
that's easy to use and, because of faster set ups,
enables a higher level of grinding performance."
Three Wheelhead Design, L.H. Standard, R.H. Standard
and Swing Around Internal Grinding, complete
with internal grinding spindle.
Variable Speed Drives for the ID & OD
