KARL MAYER SIZING + DIRECT WARPING Webmaschinen

A)01 Karl Mayer Direct Warper – ZM – SP 1700/1000
year 1997, working width 180 cm,
max. beam flange diam. 1.016 mm

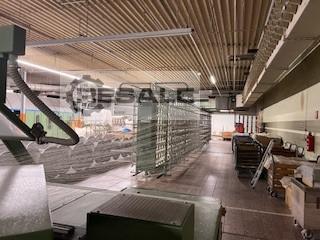

with 01 Karl Mayer warping creel, H-type, 630 creeling positions
disc brakes, electr. stop motion,
pitch 30 cm – adjustable
abt. 60-70 fractional beams (for direct warper and sizing)

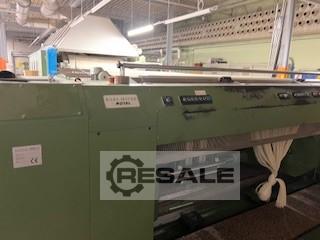

B)01 Karl Mayer Rotal Sizing machine, type ELC-O-TENS
year 2000, with Pleva humidity and tension control,

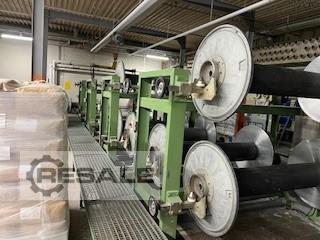

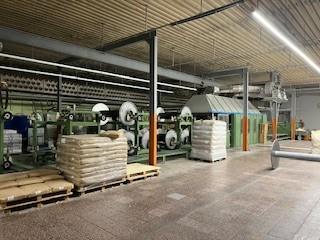

warp beam creel, for max. 16 warp beams
nom. working width 180 cm
max. beam flange Ø 1.016 mm
pneum. Brakes

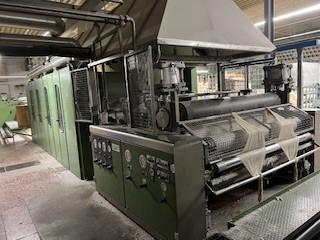

1 sizing double trough
nom. working width 180 cm
pre-wetting
double dip and squeeze roller pair

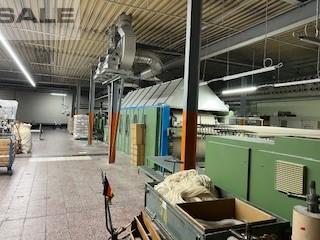

Cylinder Dryer
10 drying cylinder Ø 800 mm
partitioning field abt. 4,5 mtrs.
Waxing device

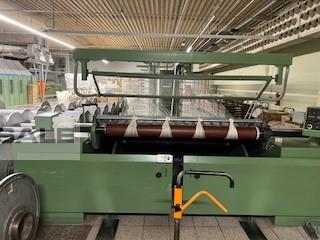

Beaming machine / headstock
max. nom. working width 240 cm, max. beam flange Ø 1100 mm
speed up to 140 m/min
beam pressure device
Size kitchen
turbo cooker,
