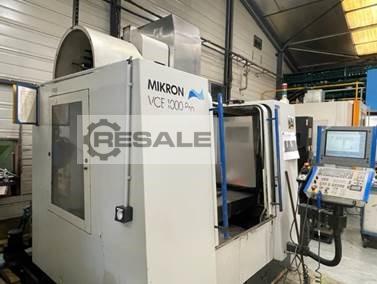

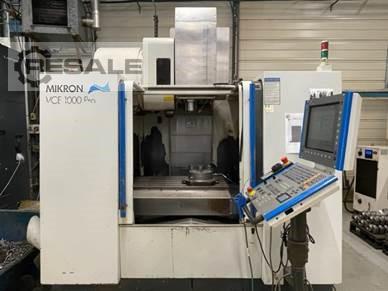

CNC Bearbeitungszentren MIKRON VCE 1000 PRO

x-Weg:1015 mm

y-Weg:510 mm

z-Weg:675 mm

Machine-Details
Stock-No. 1105-03923
Type of machine Machining Center - Vertical
Make MIKRON
Type VCE 1000 Pro
Year of manufacture 2006
Type of control CNC
Storage location FRANKREICH
Country of origin Switzerland
Delivery time immediately
Freight basis ex stock HAGUENAU FRANCE

Technical details
x-travel 1015 mm
y-travel 508 mm
z-travel 675 mm
CNC-control Heidenhain iTNC 530
max. distance between table and spindle-nose 775 mm
table-size 1020 x 620 mm
max. table load 1000 kg
spindle taper ISO 40
spindle turning speed range max. 14.000 U/min
feed stepless 24 / 24 / 20 mm/min
rapid traverse 24 / 24 / 20 m/min
drive capacity - spindle motor 18 kW
tool change unit 24 Pos.
voltage 400 V
total power requirement 35 kVA
weight of the machine ca. 5 t
dimensions of the machine ca. 2,86 x 2.60 x 2,70 m
Additional information
MIKRON VCE 1000 PRO
- 3-D Measuring button RENISHAW OMP60
- electrical hand wheel
- chip conveyor
- coolant equipment
Verkäufer Angebot Nr. resale 162525444
