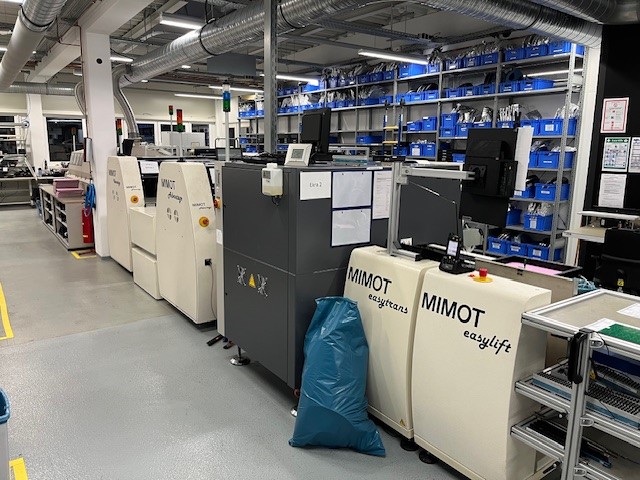

Mimot Advantage Series Bestückung und Platzierung

2008 Mimot Advantage machine 2008

is expected to be available at the end of 2024

This system is part of an entire assembly line that can be purchased in its entirety

1) Infeed conveyor assembly

1 Easytrans - LP conveyor belt 1x600mm, width adjustment via CAN with

Absolute encoder

2) assembler

MIMOT Advantage active X

1 SMD assembly machine

consisting of:

1 basic unit

1 feeder capacity for 184 S8 tracks

(Applicable feeder types: TriligentFeeder™

and coded belt feeders / coded band feeders )

2 head module, for holding a maximum of 5 (111140) assembly heads

6 assembly head for optical centering,

with self-learning Z-axis (Touch-Sense technology)

Arrangement: 2 head modules, each with 3 assembly heads

12 standard vacuum pipette 1112xx of your choice

1 autom. Changing station for 10 vacuum pipettes

(occupies space for 6 S8 tracks)

1 PCB holder for automatic loading (in-line)

for LP up to 380 x 400mm,

Motorized width adjustment (by entering the absolute value in mm)

1 Vision system for automatic LP position correction

and good/bad detection

1 Fast flash vision system for optical centering of all components

Fixed optics for component spectrum:

from 0402 up to max. edge length 40 x 30 mm, pitch 0.3 mm

Software

1 machine software to control the machine

1 teach-in program

1 MIMEXPLORER - EDIT, editing libraries, assembly programs,

graphical editing of assembly programs etc.

1 MIMEXPLORER - CAD, converter for standard format

1 MIMDIAG, machine diagnostic program,

Error evaluation with machine status log

1 network capable (for Windows 2000 - Server, Ethernet, IPX protocol, without

software, without hardware)

Accesories

1 basic spare parts package

1 Accessories (LP support: 1x bar, 5x pin)

2 Triligent discharge feeder A24

3) Outlet conveyor assembly

1 Easytrans - LP conveyor belt 2x600mm, width adjustment via CAN

Absolute encoder

A) Feeder

Coded belt feeders for roll diameter d = 330 mm/13

150 belt feeder for 8 mm film - coded

10 belt feeders for 12 mm film - coded

Vibration feeder / Rod feeder

10 TRILIGENT vibration conveyor V8

for 1 bar magazine each, with presence sensor,

with interchangeable rail of your choice

2 TRILIGENT vibration conveyor V24

for 1 bar magazine each, with presence sensor,

B/C) Hardware / Software

1 MIMPREP, software for production-parallel setup,

Extension license for 1 additional Automatic ordering

D) Accessories

1 vacuum pump type PICO VLT 15

1 MIMaccess remote support for Advantage and 1260 Win

Software and ISDN modem for remote access to the system

with installation and instruction

1 MIMaccess remote support via MIMOT setup PC (Mimexplorer)

Data/network architecture support

Software and ISDN modem

Installed. See also the Agreements section

6 standard vacuum pipette of your choice

1 easystore Feederwagen 1.200mm lang, 3-reihig,

Feeder suspensions on one side, for approx. 195 feeders

Please note : TriligentFeeders can also be stored in it,

however, without the use of the light-optical interface
