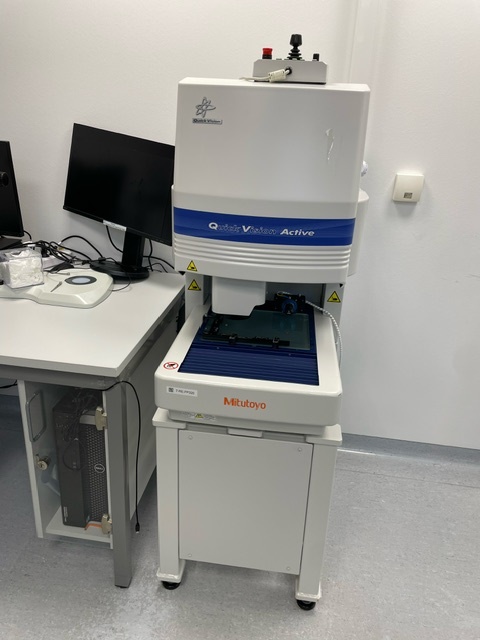

Mitutoyo QUICK VISION ACTIVE 202 Vision-Messgerät

Mitutoyo QUICK VISION ACTIVE 202

Optical measuring machine (Vision Measuring Machine) from the manufacturer Mitutoyo

Specifications (See pictures)

High efficiency

No constant supervision is required.

The operator can carry out other tasks.

Minimisation of error sources

Automatic edge detection

The automatic edge detection function enables

high reproducibility of measurements, regardless of the

reproducibility of measurements.

Image autofocus

The image autofocus function enables reliable height measurements at high speed.

Continuous measurement of multiple workpieces

Grinding function

With this function, a large number of workpieces positioned on the

large number of workpieces positioned on the device are

on the device in a single operation.

Automatic measurement can be started after

be started after rough positioning

Pattern search

The pattern search function automatically recognises the stored workpiece shape.

workpiece shape.

Manual measuring point

The combination of manual and automatic measurement

makes it possible to quickly specify the position of a workpiece manually

which is then measured automatically.

This saves the costly and time-consuming use of clamping systems.

can be saved.

Measurement of three-dimensional objects without

machine change

The vision measuring device can also measure the side surface or height of objects using an (optional)

also measure the side surface or height of objects such as metal

such as metal or moulded parts.

Optional software

FORMTRACEPAK-AP

This efficient, easy-to-use programme is used for contour analysis and evaluation,

e.g. the evaluation of contour sequences that have been recorded in QVPAK with the AutoTrace tool

and saved in a transfer file.

Contour comparison function

Shape analysis

- Creation of target data

CAD data conversion, master conversion, function assignment,

text file conversion, analysis of aspherical data

- Checking design data

Tolerance creation according to the normal or axial direction

direction and best-fit adjustment

- Result display

Result list, error diagram, error development diagram,

Error coordinate values, analysis results

- Analyses: point measurement, line measurement, circle measurement, distance measurement,

intersection measurement, angle measurement, zero point adjustment

and axis rotation

- Calculation operations: Maximum value, minimum value, mean value,

standard deviation, range

Report generation

Other functions

- Measurement results, error diagram, error development diagram

- Setup/execution of analysis procedures

- CSV format output, text output, output in DXF/IGES format

DXF/IGES format

- Contour smoothing function

- 2nd order fitting function

- Simplified roughness analysis function

QV3DCAD

QVEio is a client application software for connecting external control systems.

It offers three functions: QVEio-PLC, QVEio-PC and QVEio-Signal.

Note: These functions use QVBasic commands.

QVEio-PLC receives and sends commands from and to external systems via RS-232C. Here, the QV Active is the master in the

communication with automation systems or robots.

QVEio-PC enables the QV Active to be controlled via an external system and an additional measurement result and error status output via RS-232C. The QV Active acts as a slave system. The QVEio signal informs the PLC about the operating status of the QV Active. This function is ideal for displaying the operating status of the QV Active on a signalling device.

MeasurLink Real-Time Professional

This is SPC software that helps you to monitor and optimise your production process.

monitor and optimise your production process.

The display of the control chart, based on real-time data, enables early detection of

early detection of machining errors and thus effectively helps to prevent the

the manufacture of faulty products.

QVPartManager is required separately in order to use MeasurLink to analyse the results of a

continuous measurement of several workpieces arranged on the measuring table.

on the measuring table.

Offer does not include the PC/Computer
