Major overhaul in 2005 (we can overhaul it again)
Power:
60 packs/min in the configuration 2x3 longneck, Vichy, and NRW
bottles
40 packs/min in the configuration 2x3 swing-top bottles

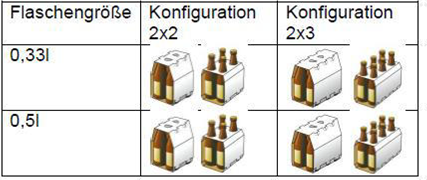

Formats:
2 x 2 bottles with a diameter of 60 mm–70 mm and a height of 270
mm
2 x 3 bottles with a diameter of 60 mm–70 mm and a height of 270
mm
For bottle packaging, there is the option of neck-through or
over-crown.
To switch between 2x2 and 2x3 formations, a pair of gears must be
replaced. Otherwise, for different bottle diameters, only the infeed
stars need to be changed and the machine adjusted in terms of
throughput width.

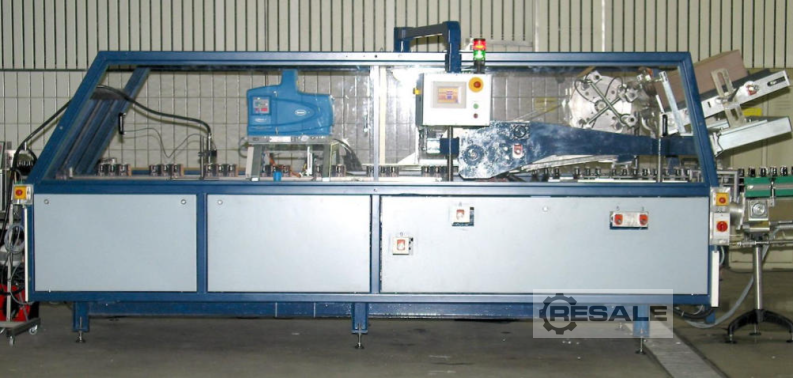

Machine description/ Technical description
- Used machine, infeed stars for swing-top bottles are included
- Packing speed: up to 60 packs/min at 2x3
- The bottle height is adjustable.
- Continuously operating machine
- The machine speed is adjusted to the bottle infeed by sensors
- Large safety doors are located on both sides of the machine
- Siemens S7 control system
- Becker vacuum pump
