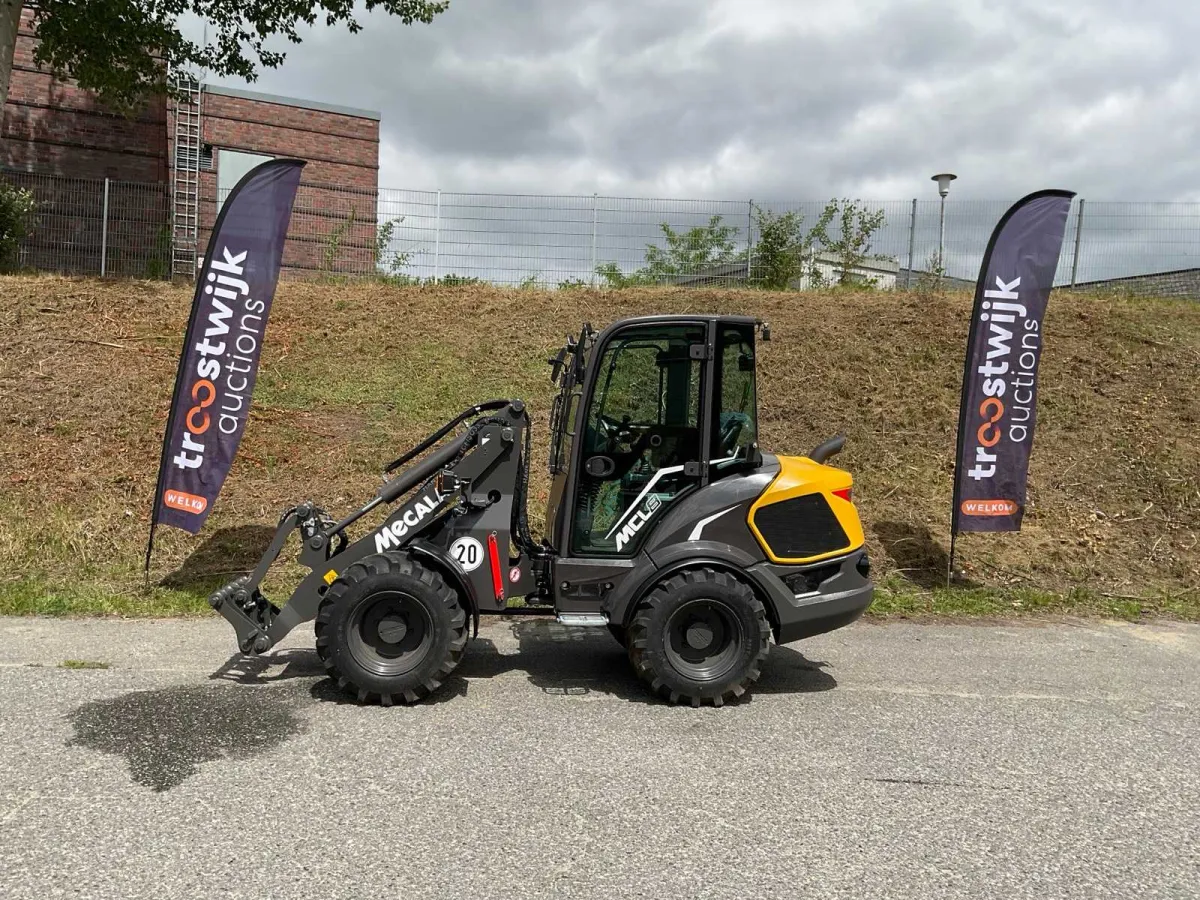

2025 Mecalac MCL8 Kompakt-Radlader

MACHINE DATA:
-Standard version (according to technical data sheets)
-Articulated Loader
-Operating weight 2850 kg
-Long Boom
-FOPS-ROPS canopy, a cab version is also available.
-Mechanical suspended seat - vinyl
-2 large rear-view mirrors
-Standard fenders
-Speed 0-20 kph
-Wide range of attachments

ENGINE:
-Engine emissions according to Stage V or Tier 4 Final - EU-RL 97/68
-Water-cooled Perkins engine TCD 1.7 L3, 36 kW (49 hp) at 2800 rpm. DOC+DPF
-BOOM & QUICK-COUPLER
-Loader boom with P-bucket orientation kinematics with 100% precise parallel lifting
-Boom float function
-4 points hydraulic quick-coupler

TRANSMISSION:
-Hydraulic system
-Hydrostatic transmission with wheel motor
-Hydrostatic inching brake, acting on all 4 wheels
-Hand throttle (M-Drive)
-Speed limit (Speed-control)
-4-wheel drive
-Tyres BKT AS504 - 11,5/80 - 15.3 Agriculture profile (width ≈ 1236 mm (4'))

HYDRAULIC SYSTEM:<> -Smooth-running joystick for speed selection and forward/reverse
-Single-circuit hydraulic system with gear pumps with 50 l/min. at max. 207 bar- 1st circuit: lift / lower- 2nd -circuit: tilting / dumping- 1st auxiliary circuit proportional for attachments
-Detent button for auxiliary hydraulic line

ELECTRICAL:
-Electrical system: 12V
-Power outlet: 12 V + double USB
-Main battery switch
Auktions-ID: A1-51269-4
