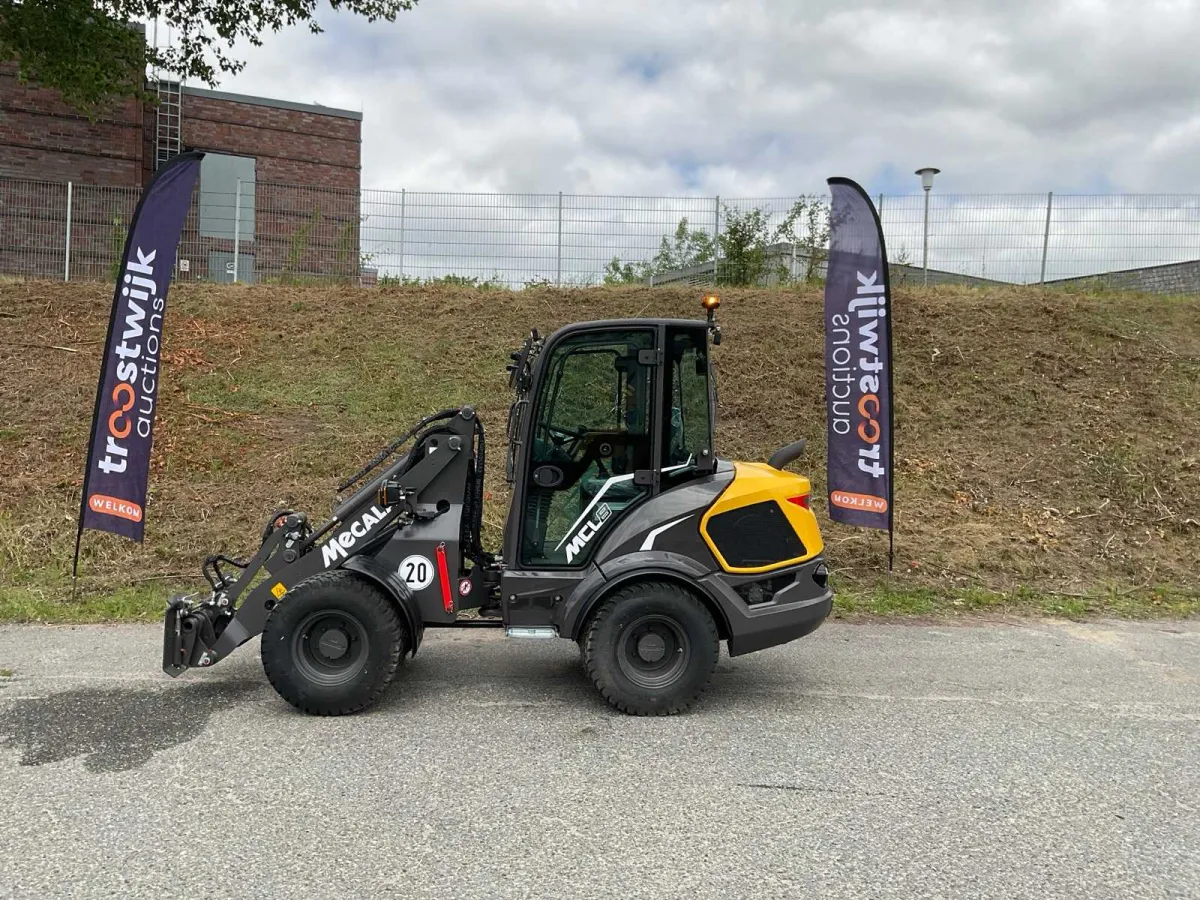

2025 Mecalac MCL8 Kompakt-Radlader

MACHINE DATA:

-Standard version (according to technical data sheets)

-Articulated Loader

-Operating weight 2850 kg

-Long Boom

-FOPS-ROPS canopy, a cab version is also available.

-Mechanical suspended seat - vinyl

-2 large rear-view mirrors
-Standard fenders

-Speed 0-20 kph

-Wide range of attachments

ENGINE:

-Engine emissions according to Stage V or Tier 4 Final - EU-RL 97/68

-Water-cooled Perkins engine TCD 1.7 L3, 36 kW (49 hp) at 2800 rpm. DOC+DPF

-BOOM & QUICK-COUPLER

-Loader boom with P-bucket orientation kinematics with 100% precise parallel lifting

-Boom float function

-4 points hydraulic quick-coupler

TRANSMISSION:

-Hydraulic system

-Hydrostatic transmission with wheel motor
-Hydrostatic inching brake, acting on all 4 wheels

-Hand throttle (M-Drive)

-Speed limit (Speed-control)

-4-wheel drive

-Tyres BKT AS504 - 11,5/80 - 15.3 Agriculture profile (width ≈ 1236 mm (4'))

HYDRAULIC SYSTEM:

-Smooth-running joystick for speed selection and forward/reverse

-Single-circuit hydraulic system with gear pumps with 50 l/min. at max. 207 bar- 1st circuit: lift / lower- 2nd circuit: tilting / dumping- 1st auxiliary circuit proportional for attachments

-Detent button for auxiliary hydraulic line

ELECTRICAL:

-Electrical system: 12V

-Power outlet: 12 V + double USB

-Main battery switch
Auktions-ID: A1-51269-3
