Fravol M200-23
Holzbearbeitungsmaschinen › Sonstige Holzbearbeitungsmaschinen
Altendorf F45 ElmoDrive
gebrauchtGeprüfter Anbieter
Preis anfordern
Direkt an den Anbieter
1 / 4
Technische Daten
· ID 170162193Holzbearbeitungsmaschinen Sonstige Holzbearbeitungsmaschinen
- Zustand
- gebraucht
- Baujahr
- 2022
- Standort
- Spain
Identifikation
HerstellerAltendorf
ModellF45 ElmoDrive
Positionsnummer8150788
Technik
Stückzahl1
Beschreibung

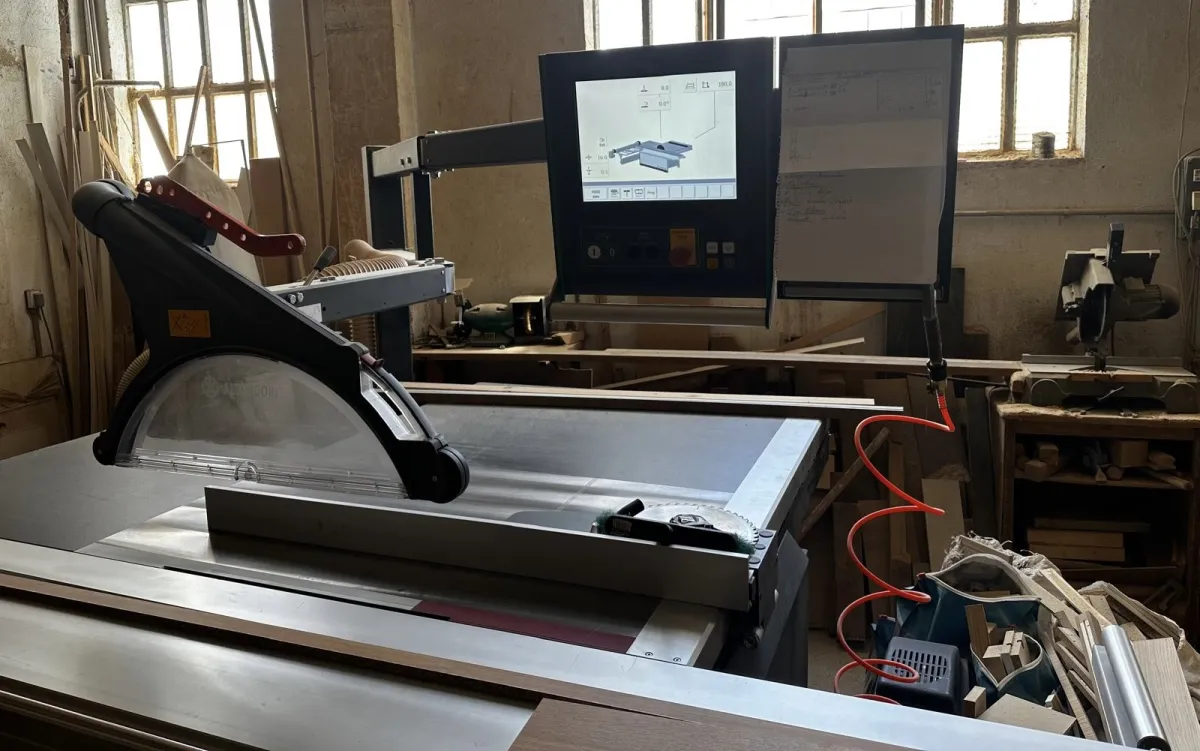

Panel saw
Type: F45 ElmoDrive
Manufacturer: Altendorf
Year: 2022
Basic equipment:
Sliding table 3400 mm
CNC-controlled parallel fence, electromotor-adjustable 0–1300 mm
Mitre fence extendable up to 3200 mm
Main motor power 5.5 kW / speeds 3000/4000/5000 rpm
Max. blade diameter: 500 mm
Max. cutting length: 3300 mm
ELMO DRIVE control system
12” touch display with keyboard
Up to 9,999 programs
Automatic dimension correction when cutting at angles
Extended tool management (up to 100 stored tools)
Functions:
grooving, angle cutting, geometric shape calculations, calculator, USB interface, machine diagnostics
Automatic calculations for angled and bevel cuts
Simple, intuitive interface with quick access to functions
Machine equipment:
Increased main motor power to 5.5 kW
CNC parallel fence – cutting width 1300 mm
Extension of the sliding table to 3400 mm
DIGIT L angle/bevel fence (digital measurement with accuracy of 1/10 mm and 1/100°) – bevel cuts up to 49°
Machine in very good condition, fully functional, under power.
Find more here - .ucymachines/
Contact us at - sales@ucymachines
Type: F45 ElmoDrive
Manufacturer: Altendorf
Year: 2022
Basic equipment:
Sliding table 3400 mm
CNC-controlled parallel fence, electromotor-adjustable 0–1300 mm
Mitre fence extendable up to 3200 mm
Main motor power 5.5 kW / speeds 3000/4000/5000 rpm
Max. blade diameter: 500 mm
Max. cutting length: 3300 mm
ELMO DRIVE control system
12” touch display with keyboard
Up to 9,999 programs
Automatic dimension correction when cutting at angles
Extended tool management (up to 100 stored tools)
Functions:
grooving, angle cutting, geometric shape calculations, calculator, USB interface, machine diagnostics
Automatic calculations for angled and bevel cuts
Simple, intuitive interface with quick access to functions
Machine equipment:
Increased main motor power to 5.5 kW
CNC parallel fence – cutting width 1300 mm
Extension of the sliding table to 3400 mm
DIGIT L angle/bevel fence (digital measurement with accuracy of 1/10 mm and 1/100°) – bevel cuts up to 49°
Machine in very good condition, fully functional, under power.
Find more here - .ucymachines/
Contact us at - sales@ucymachines
