Manufacturer: Amada
Year of Manufacture: 2007

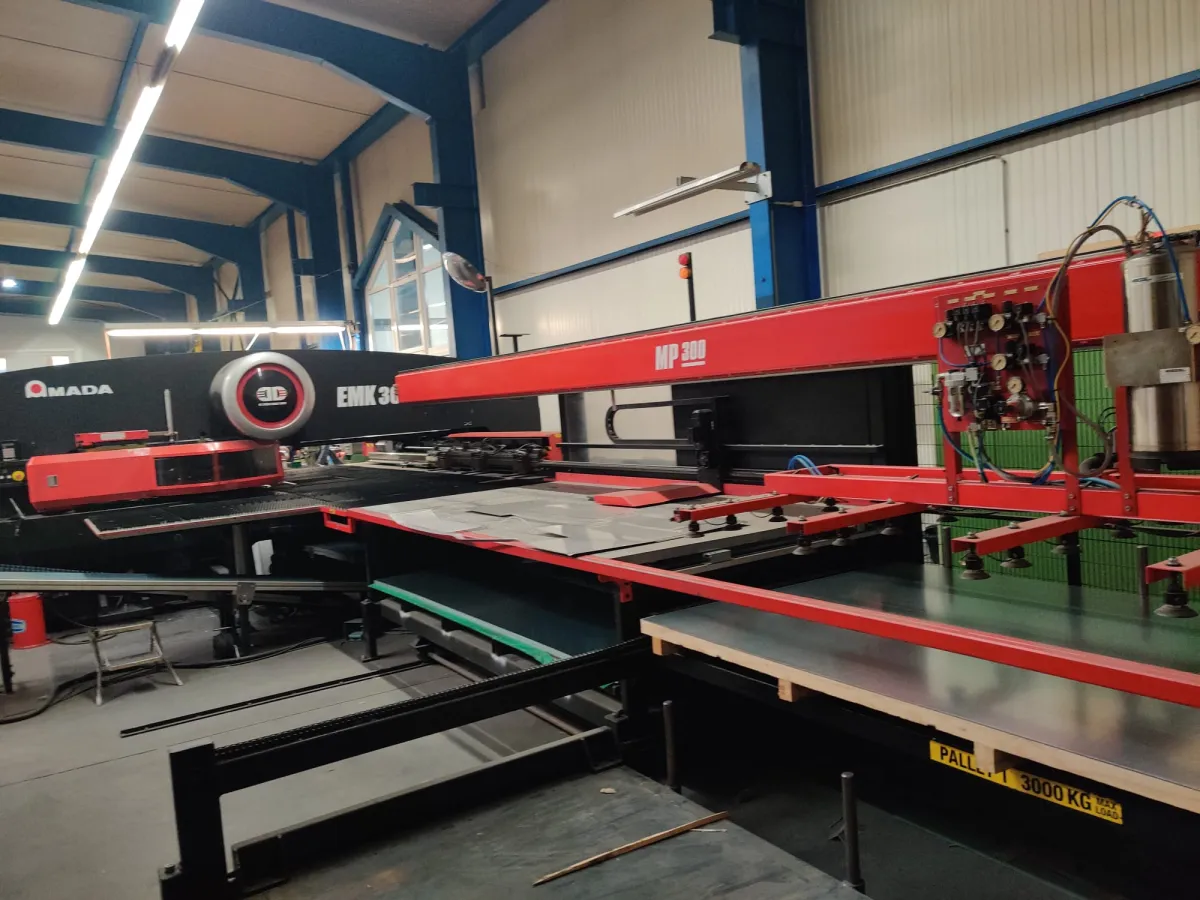

Model: EMK3610NT
Type of machine: Punching machine, including MP300 loading unit,
tooling and Wilson X-Sharp grinding machine
Capacity: 300 kN punching force
Number of tool turret stations: 58
Power required: 27 kVA
Noise level: 91 dB(A)
Stopping distance: 360 mm
Weight: 24,500 kg
Transformer model: Marx TG 214
Transformer rated output: 30 kVA
Transformer primary rated voltage: 3 x 400 V (plus or minus 10
percent)
Transformer secondary rated voltage: 3 x 200 V
Transformer primary rated current: 44 A
Transformer secondary rated current: 87 A
Transformer frequency: 50/60 Hz (plus or minus 1 Hz)
Transformer supply fusing: 400 V / 27 kVA / 63 A
Transformer insulation class: T 40 F
Transformer protection rating: IP 23
Transformer dimensions (L x B x H): 740 x 550 x 680 mm
Transformer gross weight with packaging: approximately 240 kg
Transformer weight: 206 kg
