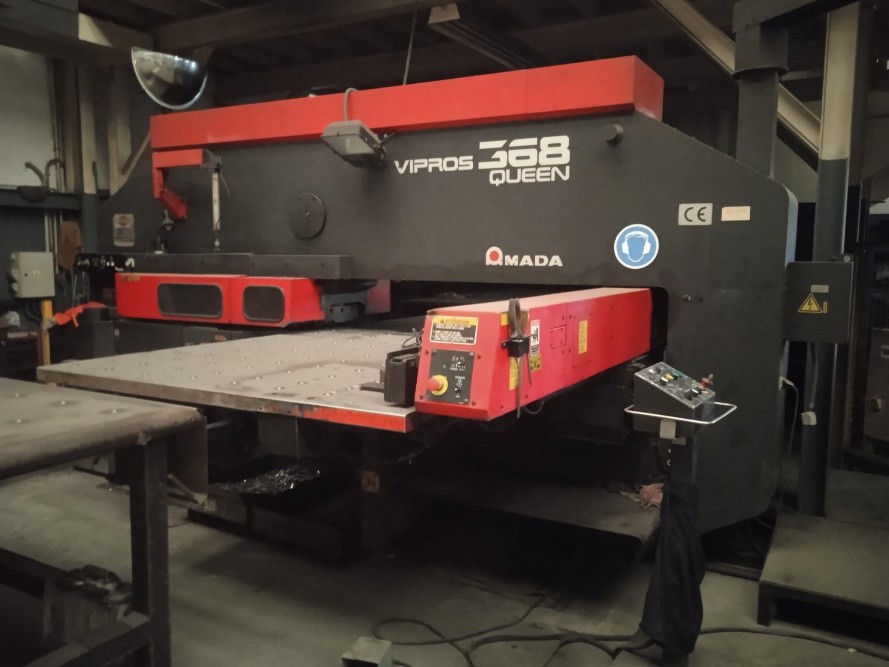

Hydraulic punching machine AMADA VIPROS QUEEN 368 with 45 stations.

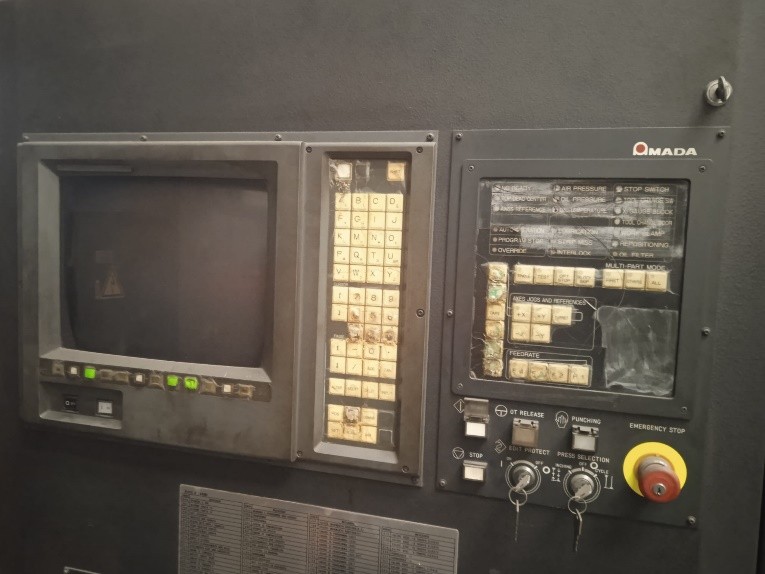

Equipped with FANUC 04PC numerical control, auto-index interface, 4

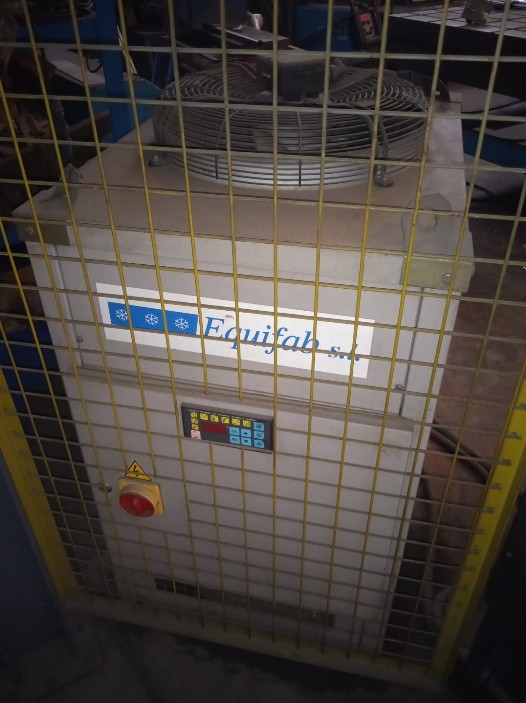

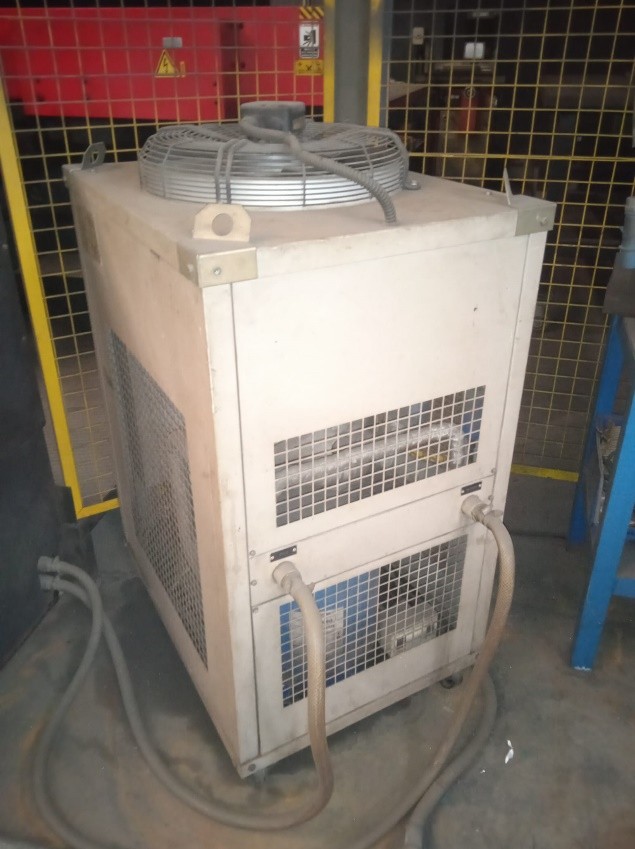

sheet clamping jaws + 2 base clamp plates, Equifab cooler, PUNCH 5
programming software with automatic nesting, and a set of punch
holders.
Power ON Hours: 3595H 35M 27S
Cycle ON Hours: 1535H 16M 14S
Total Hits: 12700196
Manufacturer: AMADA
Model: VIPROS 368 QUEEN
CNC Control: FANUC 04PC
Year of Manufacture: 2001
Number of Stations: 45
Number of Indexed Tools: 4
Maximum Thickness (Standard Steel): 6mm
Frame Construction: Bridge-type
Press Capacity: 30 tons (294 kN)
Press Type: High-speed servo hydraulic cylinder
Axis Travel Distance: 1525 x 2000 mm
Maximum Sheet Size: 1525 x 4000 mm
(with automatic repositioning)
Maximum Material Thickness: 3.2 mm mild steel
Maximum Hole Diameter (Material Max Cutting Strength 36 kg/mm²): 82
mm diameter
Maximum Material Weight: 75 kg
Maximum Material Weight (at Maximum Speed): 60 kg
Maximum Hole Diameter: 114.3 mm
Automatic Index: 2 x 31.7 mm, 2 x 114.3 mm
Axis Speed: 113.0 m/min
Punching Speed:
- (2mm pitch) 860 H.P.M./3mm stroke
- (8mm pitch) 560 H.P.M./3mm stroke
- (25mm pitch) 460 H.P.M./3mm stroke
- Bi-Directional Turret Speed: 30 R.P.M.
- Punching Accuracy: ±0.1 mm (including 1 repositioning)
- Maximum Stroke Length: 40 mm
- Tool Lubrication System: Air blow system
- Axis Drive: AC servomotor
- Turret Drive: AC servomotor
- Required Electrical Power: 28 kVA, 400V ±10%, 50Hz
- Required Air Pressure: 5.0 kgf/cm²
- Air Flow Rate: 250 l/min
- Cooling Water Flow Rate: Min. 40 l/min
- Machine Dimensions:
- Length: 5025 mm
- Width: 4120 mm
- Height: 2630 mm
Machine Weight: 18,000 kg
