Used Wine Filling Line 2000 Complete line for still wine filling,
consisting of the following machines: Used Depalletizer Automatic
depalletizer branded Oma model Depalblock 2000 built in 2002. It
reaches speeds of 6000 BPH for the 0.75 lt format. In addition to that
it works formats such as bottles of 0.375 – 0.75 and 1.50. This used
depalletizer is supplied with all its accident prevention protections
and also the user manuals. The loading is carried out from above and
there is neither an interlayer removal system nor a pallet magazine.
Instead, there are spare parts available. Measurements: Length: 2950
mm Width: 2133 mm Height: 2530 mm Weight: 1550 kg. Volt consumption:
380 Kw: 2 Hz: 50 Used Filling Monoblock of this Used Wine Filling Line

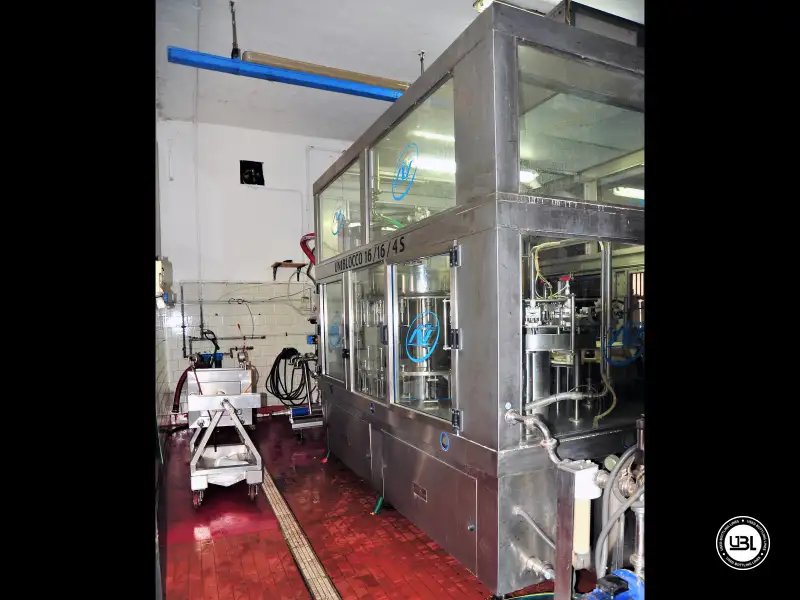

The manufacturer of this monoblock is Ave Impianti, and it is an
Oceanic 16-16-4 model. It works with the same formats from 0.375 –
0.750 – 1.500 at a speed of 3800 BPH. The direction of rotation is
clockwise, and the state is currently in production. This machine is
currently used for filling still wine. This machine includes also a
rinsing machine that has 16 forceps and does 2 treatments. Then
follows the 16-valve filler with a fixed nozzle. Finally, there is the
4-head cork stopper that can process a diameter of up to 26 mm. There
are several spare parts for this machine. Measurements: Length: 4600mm
Width: 2300mm Height: 3400mm Consumption Volt: 380 Hz: 50 Used Capper
The used Capper is Bertolaso branded and the model is Alfa 110 Inox
from 1995 with 1 head. Clockwise rotation direction, is always
complete with all available manual and accident prevention
protections. The operational status is currently in production and the
type of container handled is 0.75 liter Bordolese. The cap type is
Stelvin and the size is 30×60, while the neck type is standard.
Measurements: Length: 800mm Width: 900mm Height: 2600mm Volt
consumption: 380 Used Capsuler This machine is branded Robino and
Galandrino model Fenix 2 of the year 2000. It is a used capsuler with
2 heads and the speed reached is 6000 BPH with the following formats:
0.375 – 0.750 – 1.500. There are safety protections and manuals
are also available with the necessary instructions. The state is
currently in production. The specific product treated is still wine.
The types of capsules used are the Enoterms in Polylaminate. Weight:
approx. 1800 kg Consumption Volt: 380 Kw: 4.5 Hz: 50 Used Labeling
Machine of this Used Wine Filling Line Branded Kosme Model Extra Fix
8T S3 E3 + S2 E2 Adhesives year 2005. Speed of 3000 BPH on the treated
formats of 0.375 – 0.750 – 1.500 L. Machine currently in
production in the line with its accident prevention protections and
user manuals available. Clockwise rotation direction with 3 water and
glue stations + 2 adhesive stations. Glue film adjustment is done
manually and the centering system is photoelectric. Head adjustment is
electric and also features ironing out. Measurements: Length: 2800mm
Width: 2250mm Height: 2050mm Weight: 2000 kg Consumption Volt: 380 Kw:
5 Hz: 50 Used Case Erector Case erector branded APE Impianti form F
from 2002 that forms 600 cartons per hour. Currently in production
with protections and manuals available. The types of containers formed
are 2 boxes of 6 or 1 box of 12 bordolesi \ magnum \ mezzobordolesi.
All spare parts of this machine are available. Measurements: L: 1600mm
Width: 1900 Height: 1800mm Weight: 500 kg Volt consumption: 380 Kw: 1
Hz: 50 Used Case Packer Model Inca 1200 used case packer branded APE
Impianti from 2002 with a speed of 600 cartons per hour. Currently in
production in the same line including user manuals and safety
protections. The machine has 1 head with the operator side on the
right. Spare parts available. Measurements: Length: 1600mm Width:
2235mm Height: 2800mm Weight: 800mm Volt consumption: 380 Kw: 2 Case
Sealer Used Case Sealer Siat branded model XL33-P from 2002 with a
speed of 600 cartons per hour in all formats processed. Machinery
includes accident prevention and user manuals. Currently in production
in this used complete line. Measurements: Length: 1915 Width: 905mm
Height: 1600mm Volt consumption: 380 Kw: 1,4 Hz: 50 Drying Tunnel Used
machine branded Europool TF 01 from 2005. In production in this
complete wine bottling line for drying the outgoing bottles at the end
of the cycle. Includes all safety measures and complete user manuals.
The type of drying is through tunnel. Measurements: Length: 1000
Width: 650mm Height: 2400mm Weight: 600 kg Consumption Volt: 400 Kw:
5.5 Hz: 50
