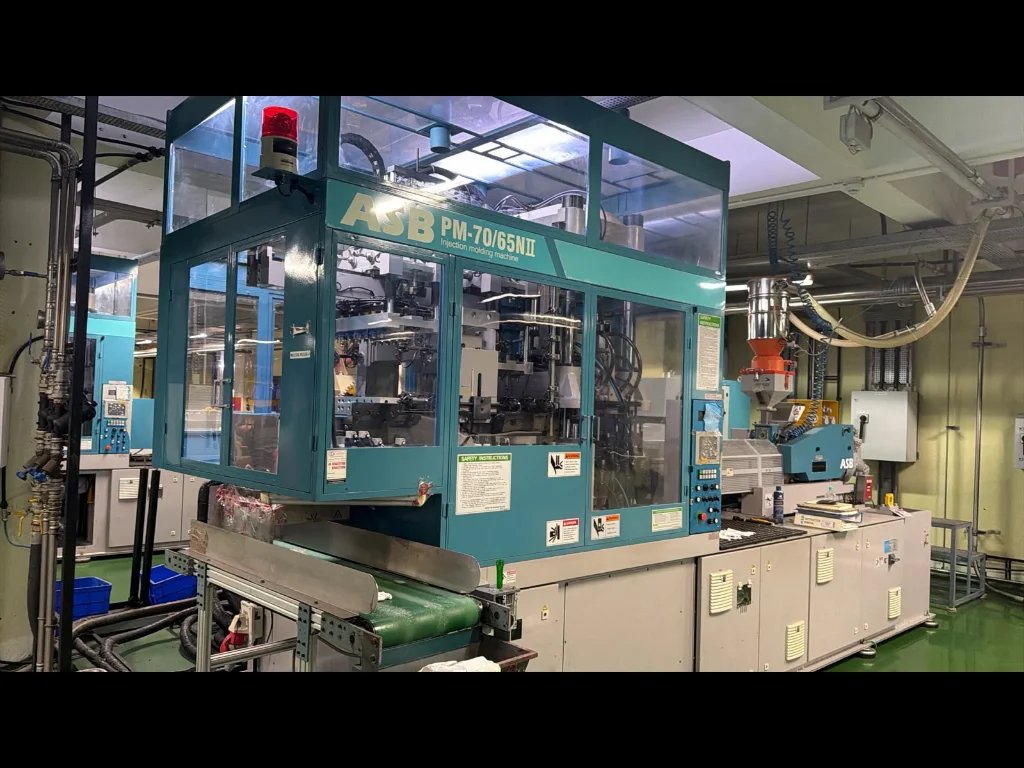

ATS PM-70/65 NII

Used NISSEI ASB injection molding machine, 2 unit - Year 2017Technical Specifications & Performance DataNissei ASB PET preform injection molding equipment for the production of PET preforms used in water, carbonated soft drink and oil bottle applications. The available production set comprises two injection molding machines manufactured in 2017, supported by mould inventory and auxiliary cooling, drying and dehumidification equipment.Manufacturer: Nissei ASB / ASB International Pvt. Ltd.Injection molding machines: 2 unitsModels: PM-70/65 NII and PM-70/111NCycle time: 12 sec 5 cycles per minute ( 300 cycles per hour).No. of cavities: 24Electrical supply: 415 V, 50 HzMachine mass: 10,000 kg for PM-70/65 NII and 11,500 kg for PM-70/111NAvailable mould inventory: 8 mould references for preform weights from 10 g to 32 gAdvanced Automation & Control SystemsThe injection molding machines operate on a 415 V, 50 Hz electrical supply. Full-load current is 137 A for the PM-70/65 NII and 166 A for the PM-70/111N. The production equipment is supported by process cooling, PET drying and dehumidification systems to help maintain stable resin conditioning and moulding conditions.Auxiliary equipment includes multiple chillers, dehumidifiers and PET dryers. The PET dryers are fitted with 6.2 kW blowers and 36.10 kW heaters, supporting controlled preparation of PET resin before injection molding.Production Line Integration CapabilitiesThis PET preform production line is designed as an integrated upstream solution for PET bottle manufacturing and can supply preforms to downstream stretch blow molding and beverage production operations. The available preform range supports bottle formats from 0.15L to 2.0L, depending on the neck design and preform weight selected.The mould inventory includes preforms for water, soda and oil applications. Water preforms use a 28 mm TST neck, while soda preforms use a 28 mm CSD short neck. The line is therefore suited to industrial packaging operations requiring multiple PET bottle formats and product-specific preform designs.Machine Condition & Maintenance HistoryThe two main Nissei ASB injection molding machines were manufactured in 2017. Associated auxiliary equipment includes units manufactured in 2014 and 2017. The equipment package includes two main injection molding machines, cooling equipment, PET dryers, dehumidifiers, an air dryer and blowers.For a second hand PET preform production installation, commissioning should include inspection of mould condition, resin drying performance, cooling circuits, electrical connections, heaters, blowers and all safety interlocks before integration into a used bottling line or industrial packaging facility.Operational Performance & VersatilityThe 24-cavity PET preform injection molding configuration is intended for repeatable, high-volume preform manufacture. Eight mould references are included, covering preform weights of 10 g, 13.5 g, 15 g, 18 g, 19 g, 20 g, 22 g, 23 g, 26 g and 32 g.Supported PET preform applications include water bottles in 0.3L, 0.5L, 0.75L, 1.0L, 1.25L, 1.5L and 2.0L formats, plus soda bottle formats from 0.15L to 0.5L. PET preform options also include a 0.75L oil bottle application. This flexibility makes the equipment relevant for beverage production and industrial packaging operations using PET containers.Installation Requirements & Site PreparationInstallation requires a 415 V, 50 Hz electrical supply sized for the injection molding machines and auxiliary equipment. A suitable production area should provide access for installation, mould handling, resin loading, chilled-water connections and maintenance around the machines.Cooling capacity is supported by Chilton, Airtech Cooling and Microgel chillers. PET resin preparation is supported by Matsui India and Matsui Technologies India dehumidification and drying equipment. Site preparation should provide appropriate process cooling connections, ventilation and material handling for resin, moulds and finished PET preforms.Safety Standards & Compliance CertificationSafe operation of PET injection molding equipment requires guarded mould areas, controlled access during mould changes, electrical isolation procedures and verification of emergency stop circuits. Process heaters, moving clamp assemblies, cooling systems and resin drying equipment should be inspected and commissioned by qualified personnel before production use.For industrial packaging and beverage production environments, operating procedures should include routine checks of electrical connections, cooling performance, dryer operation, mould condition and PET preform quality. The 28 mm TST and CSD neck configurations should be verified against the intended bottle and closure specifications before production.
