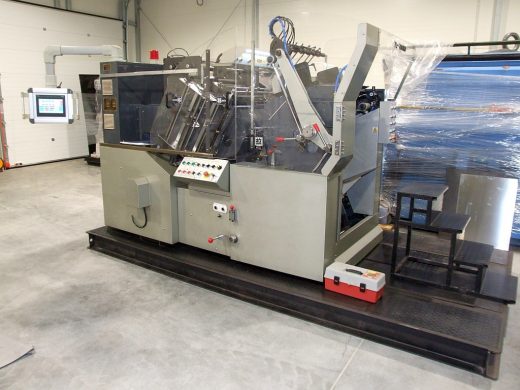

Stanzen Automatic die-cutting and embosing machine TL-780R

Automatic die-cutting and embosing machine TL-780RD - Lidograf printing machines Menu Home About us Offer Gallery We buy Contact en pl Automatic die-cutting and embosing machine TL-780RD Search: Search Technical condition: New Used Categories: Bookbinding machinery Bookletmakers Box production Collators Creasers Die Cutting Machines Folding machines Gluing machines Guillotines Joggers Laminators Offset printing machinery Others Paper drills Perfect binders Pile turners Spare parts Stitching machines Automatic die-cutting and embosing machine TL-780RD Price: upon request EUR Download PDF Automatic die-cutting and embosing machine TL-780RD The machine is built on a die-cutting basis with an automatic feeder, mounted on a common frame, The machine was built on the basis of the legendary Sargolia machine. Very quick machine preparation, incomparable with flat diecutting machines. Technical data: Max sheet format 780x560mm Min format sheet 200x300mm Max. Stack height 700mm Material weight 100-2000g / m2 Max efficiency 2800 sheets / h Power consumption 15kW + compressed air Weight 6000kg Transfer foil 1-560mm Working temperature 1-150’C 380V power supply Dimensions of the machine: 3850x1920x2200mm Equipment: – pneumatic clutch and brake – electric quick assembly frame – control panel with a touch PLC programmer in Polish/English – four independent foil movements, controlled by stepper motors – broken film sensor or no sheet feed sensor – 4 sections of the heating plate, saving energy – automatic imprsion force adjustment – central lubrication – Honey Comb-plate with zips for quick matrices assembly – additional safety covers – tools for handling and instructions, CE declaration
Verkäufer Angebot Nr. resale Automatic die-cutting and embosing machine TL-780RD
