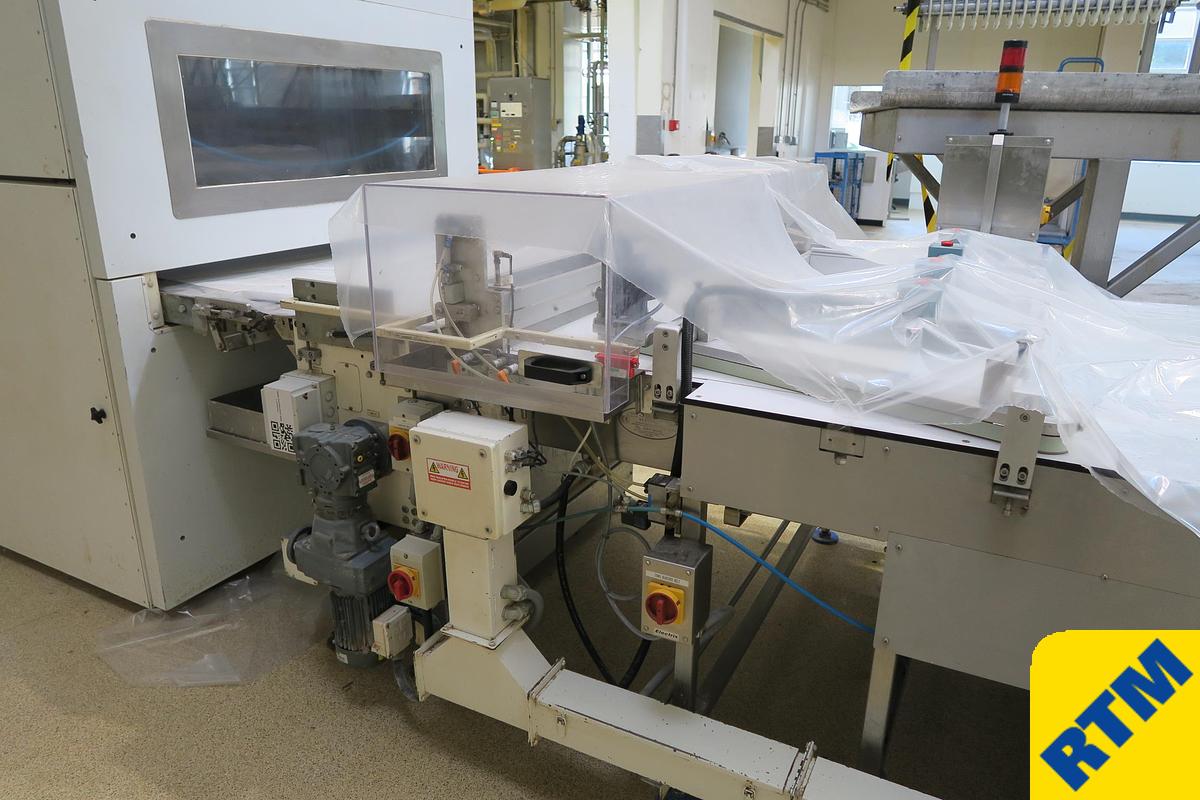

Description PACKAGING MACHINERY FOR "BREAKAWAY" Biscuits (moulding
line Lot 37) Exit conveyor from moulding line into ROTZINGER product
storage buffer. Three of these buffers in total and each one feeds to
two flowpack lines. The flowpacks are setup with one single wrap
machine feeding into a multipack machine. Therefore 6 flowpack lines
in total. Last in production December 2023 including 3 x Autowrappers
Flowtronic 410 Machines Single wrap flow wrap. Previously wrapped
Breakaway biscuit and tablet style bars at speeds of up to 400/min
(315/min nominal) Fed into multipack machine or can feed out onto hand
packing conveyor. Serial numbers of machines: 6261L94, 6180L93,
6086L93 Year of manufacture/install: 1993/1994 Control - Allen Bradley
3 phase 415v 50hz Dimensions - L5430mm x W2830mm (including infeed
belts) Length of infeed belts 1680mm. Current max cut width 100mm Some
change parts available for tablet bars (larger pitch chain etc. for
longer bar). 2 x Autowrappers Flowtronic 120SE multipack machines
Serial Numbers: 6892, 6890 Year of manufacture: 2002 Control system
Allen Bradley Previously ran pack formats - 5,6,7,8,9,12,16,22 single
and double layer with Nestle biscuit product (approx 30mm width per
bar). These machines are capable of triple layer although never ran
with this. Cutter width - 155mm Machine - L6490mm x w1300mm 415v 3
phase 50hz up to 53 packs per minute. Speed governed by single flow
wrap output. No change parts, machine adjustable. 3 x Autowrapper
Flowtronic 120 single flow wrap machines Serial numbers: 6795, 6796,
6794 Year 2000 3 phase 415v 50hz Control: Allen Bradley Ran speeds up
to 400/min Cutter width 155mm Packed single biscuit style bar and
tablet. Feeding to multipack machine. One of the three machines has
the facility to bypass the multipack to hand pack. No change parts. To
run longer tablet new infeed chain would be required with larger pitch
between pushers. Machine dimensions (approx) L5350mm x W1250mm +
infeed belt feeding on at 90 degrees L2050 x W1000mm (belt width
200mm.) 4 x SIG SB Multipack Machines Serial Numbers: 514.216.006,
514.216.009, 514.006.010, 514.006.007 Year: Unknown Control: Allen
Bradley 3 phase 415v 50hz Formats capable of doing: 5 pack, 6 pack, 7
pack, 8 pack, 9 pack - All 4 machines. Machines 007 and 010 have
double layer capability although not used. Some change parts available
to change pack formats. Machine Dimensions L6010mm including transfer
from singles x W1400mm 1 x hand fed multipack machine with Kora
Packmat infeed cassette No info available. Machine was purchased brand
new for a project but rarely used. Dimensions (approx)L5090mm x
W1400mm Allen Bradley control with Markem Smart Date 5 coding unit
